Home
>>
Chrysler
>>
1990
>>
Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
Antitheft and Alarm Systems

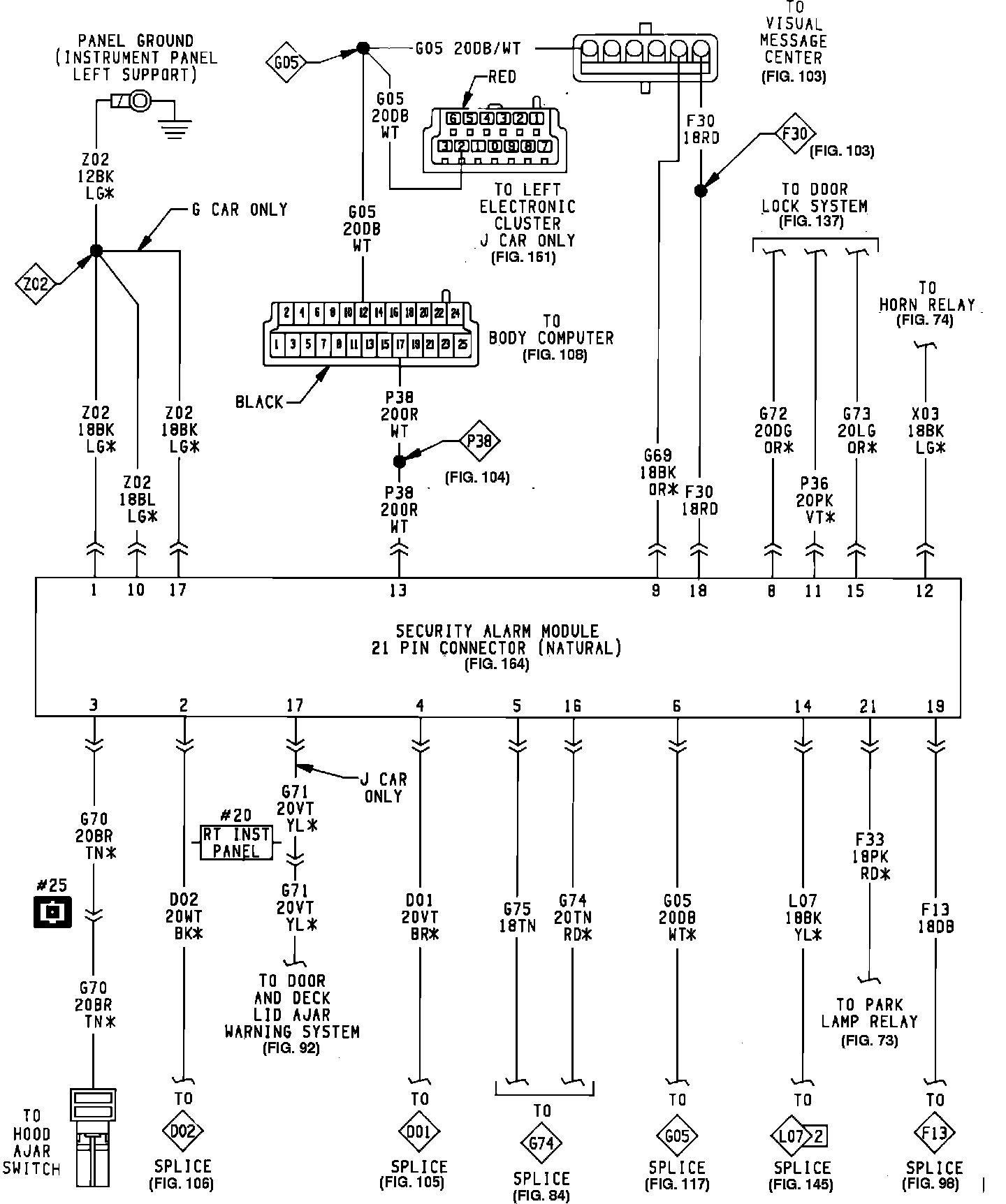

Security Alarm System (Mechanical Cluster):
