Lebaron Coupe L4-153 2.5L SOHC Turbo VIN J FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Vanity Lamp
Vanity Lamp

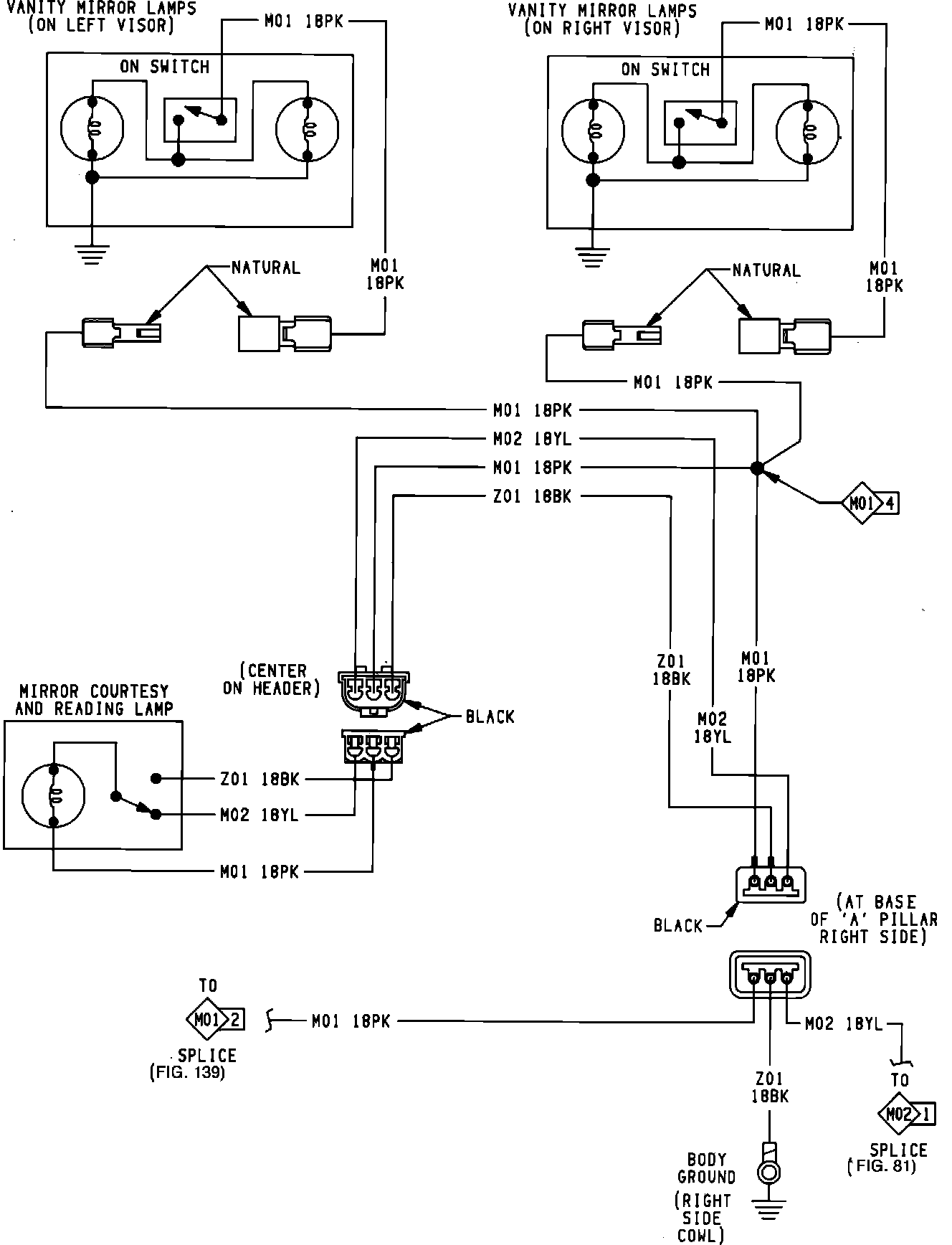

Illuminated Vanity & Mirror Courtesy Lamp (J-27 Conv.):
