System Diagram

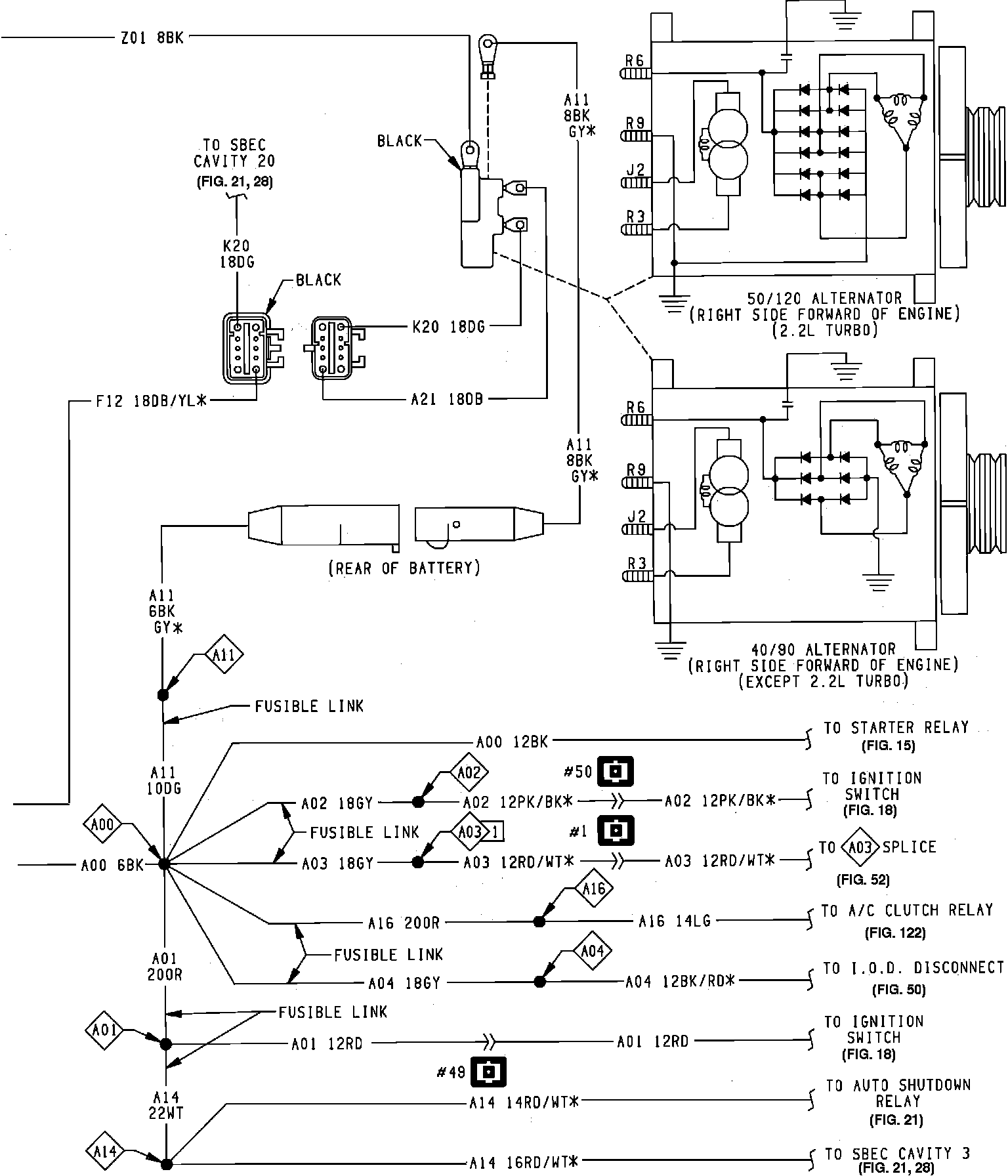

Charging System (Turbo IV):



Charging System:



Charging System (Turbo):



Charging System:



Charging System (ETAX):
