Left Instrument Panel to Body Wiring
Left Instrument Panel to Body Wiring

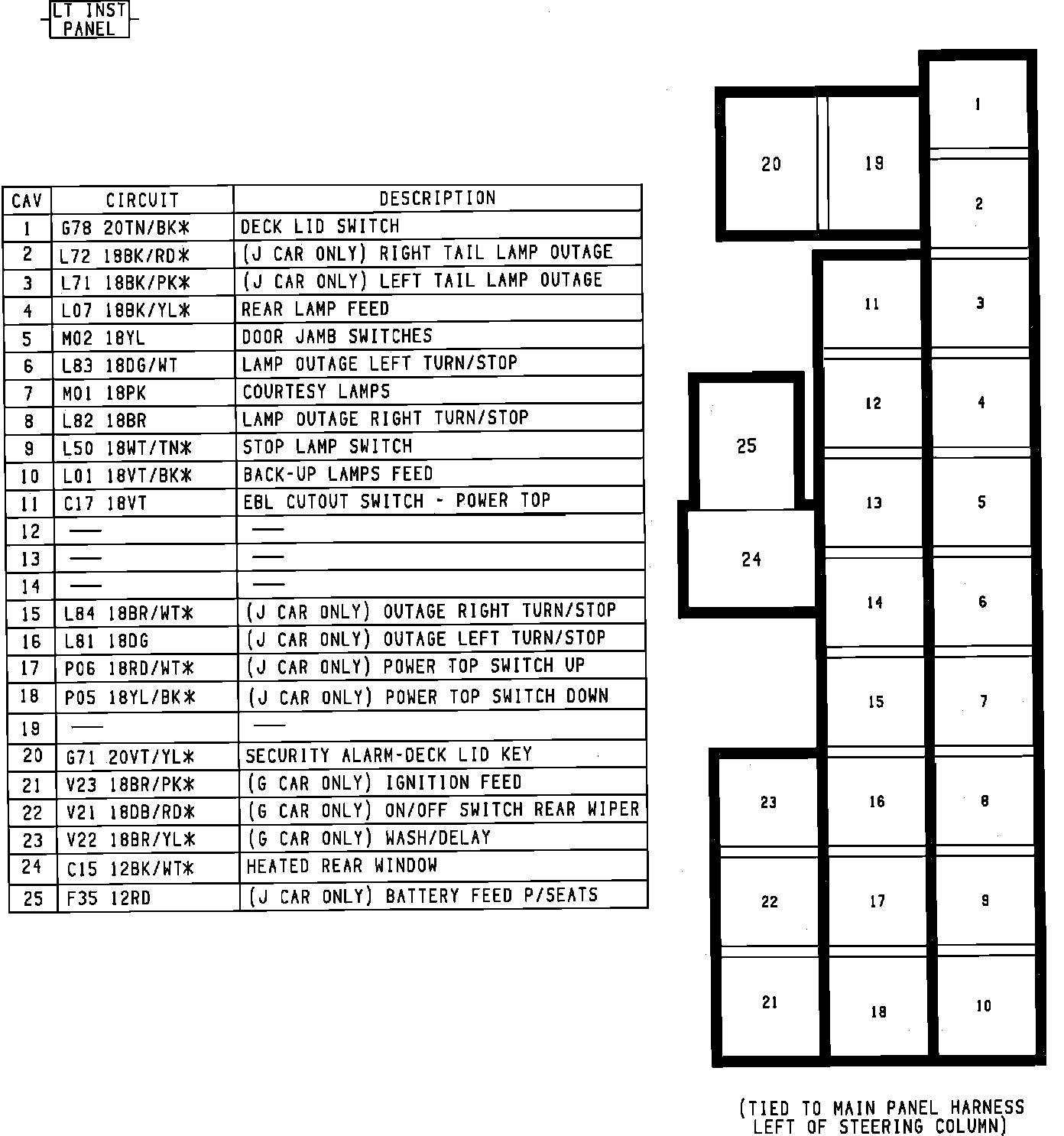

Left Instrument Panel To Body Wiring:
