Charge/Power Distribution

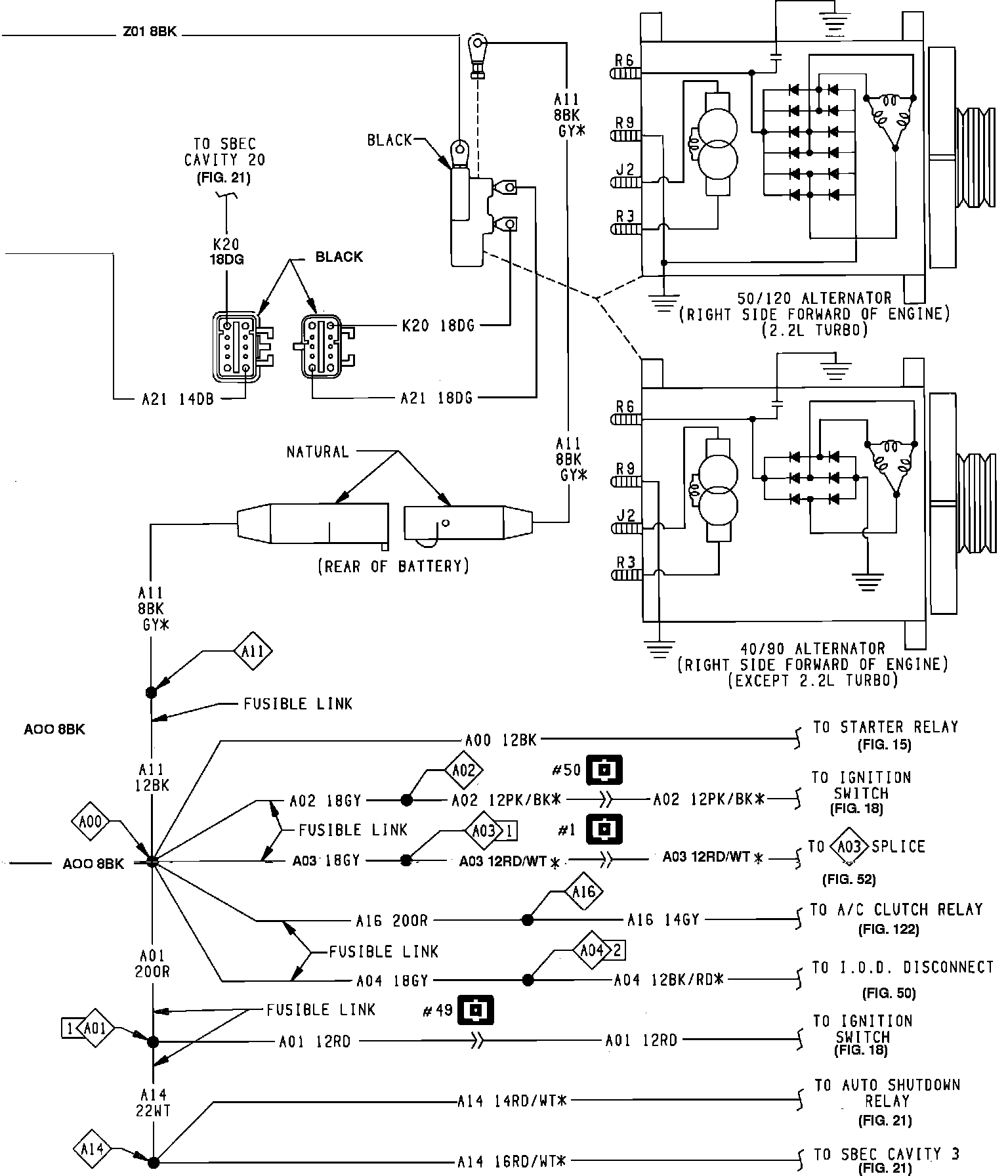

Charging System:



Charging System:

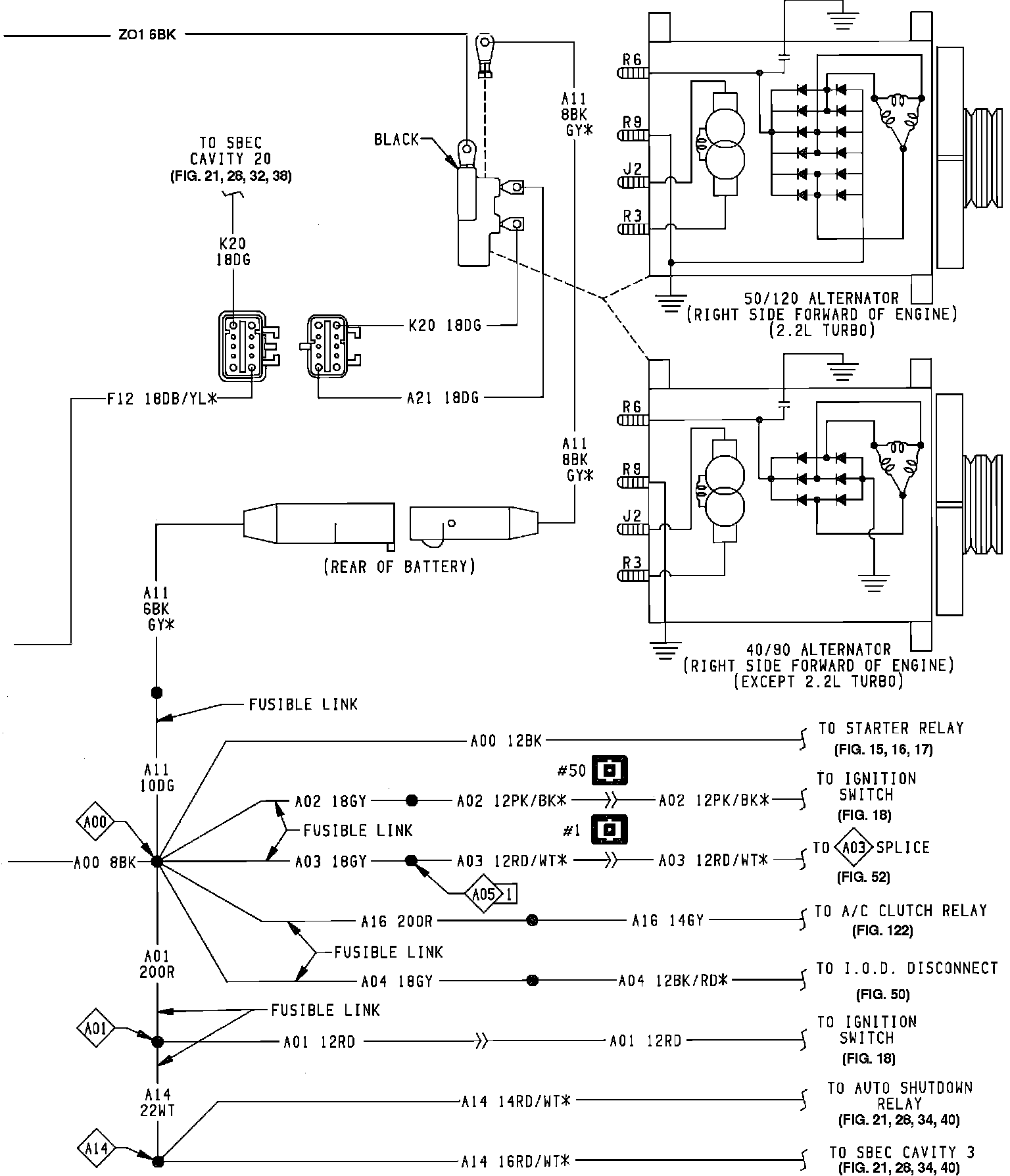

Charging System (Turbo):



Charging System (Turbo):
