Lebaron Coupe L4-153 2.5L SOHC VIN K FI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Seatbelt
Seatbelt

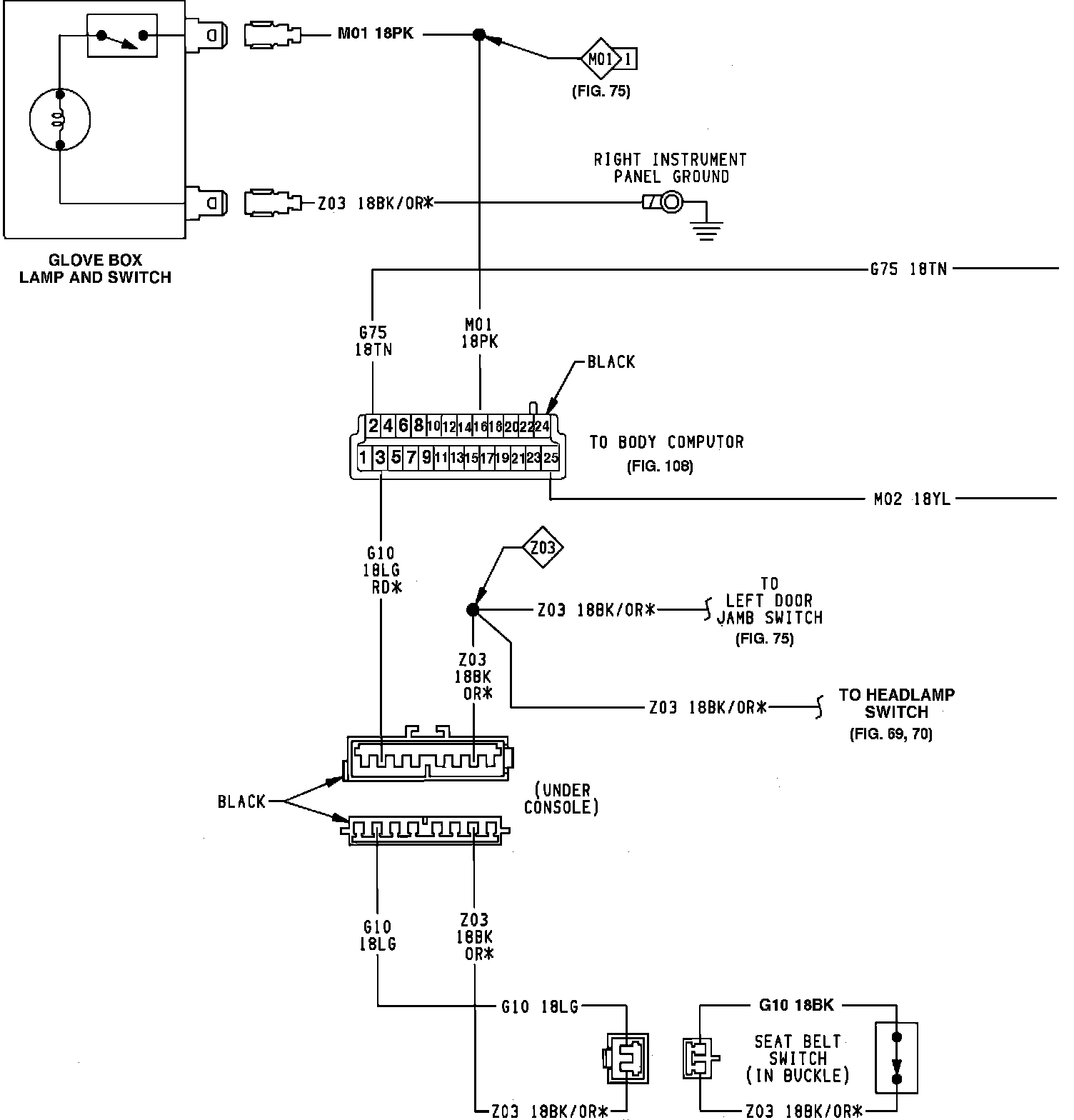

Door, Liftgate Ajar & Seatbelt Warning System:
Door, Liftgate Ajar & Seatbelt Warning System:
