Home >> Chrysler >> 1990 >> Lebaron Landau V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cooling System >> Radiator Cooling Fan Motor Relay

Radiator Cooling Fan Motor Relay

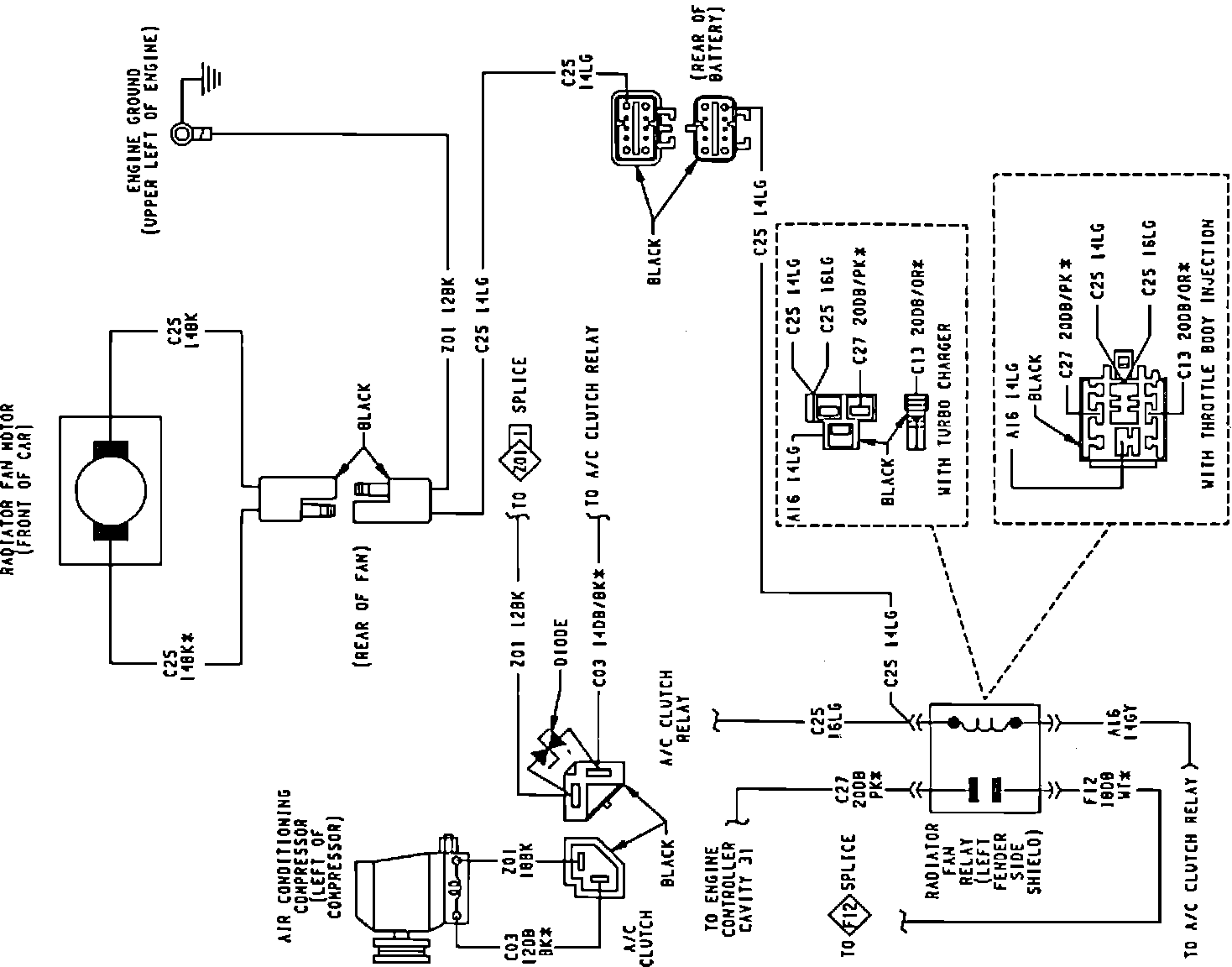

Fig. 20 Coolant Fan Relay Wiring Diagram. A/C:
