Home >> Chrysler >> 1990 >> Lebaron Landau V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Without Name Brand Speakers >> Part 1 of 2

Part 1 of 2

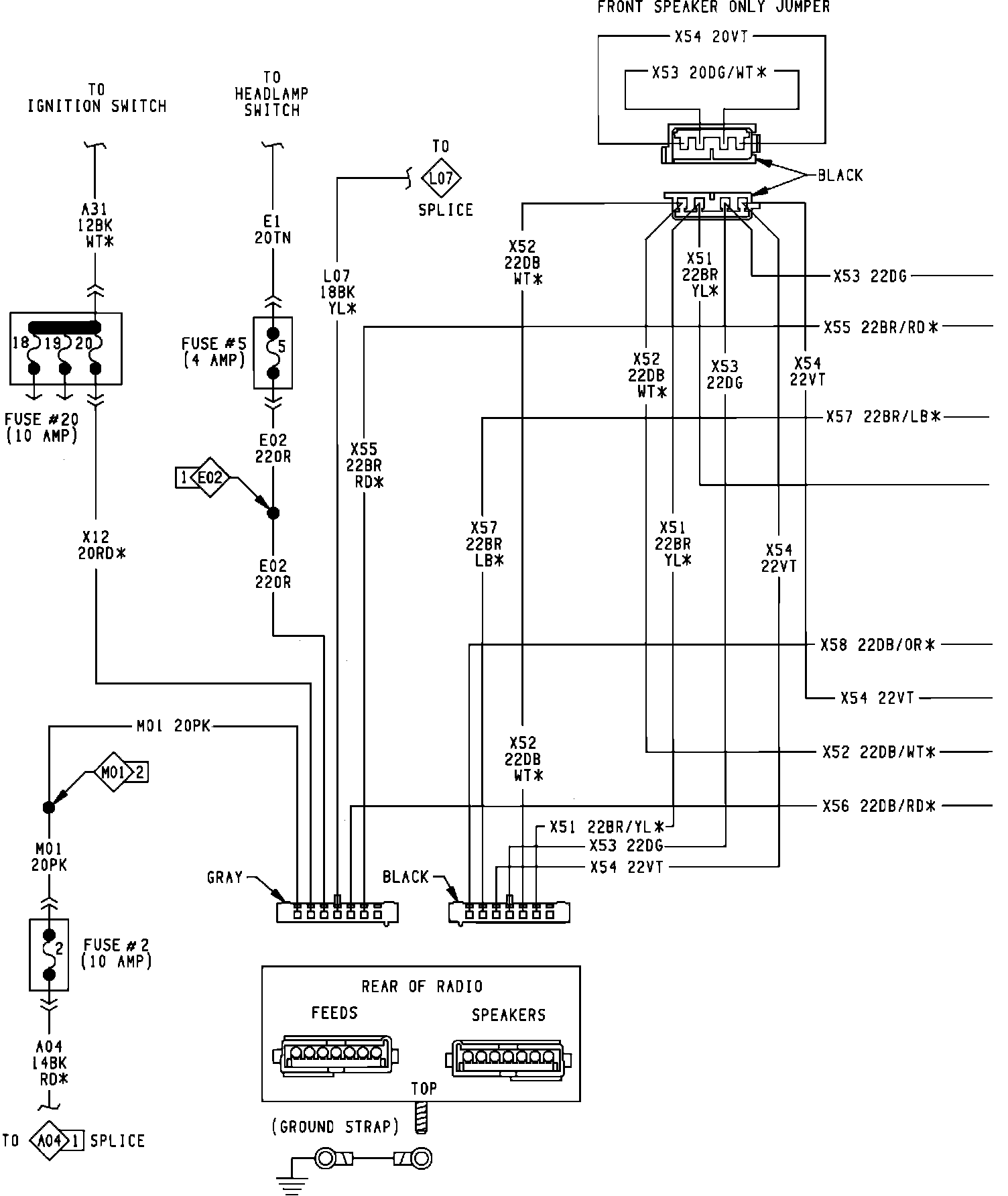

Stereo Radio Less Name Brand Speakers:
