Left Instrument Panel to Body Wiring
Left Instrument Panel to Body Wiring

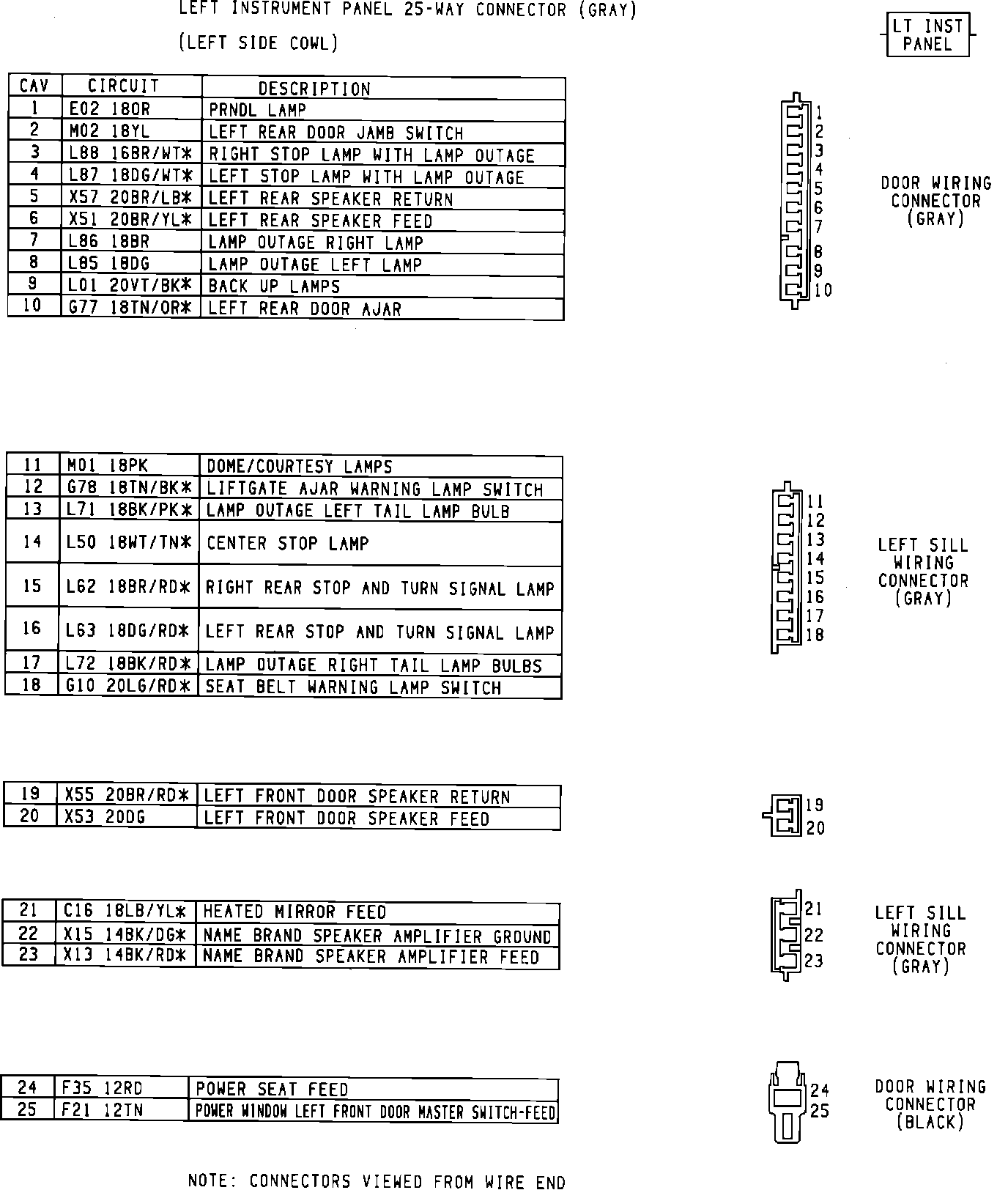

Left Instrument Panel To Body Wiring Connectors:

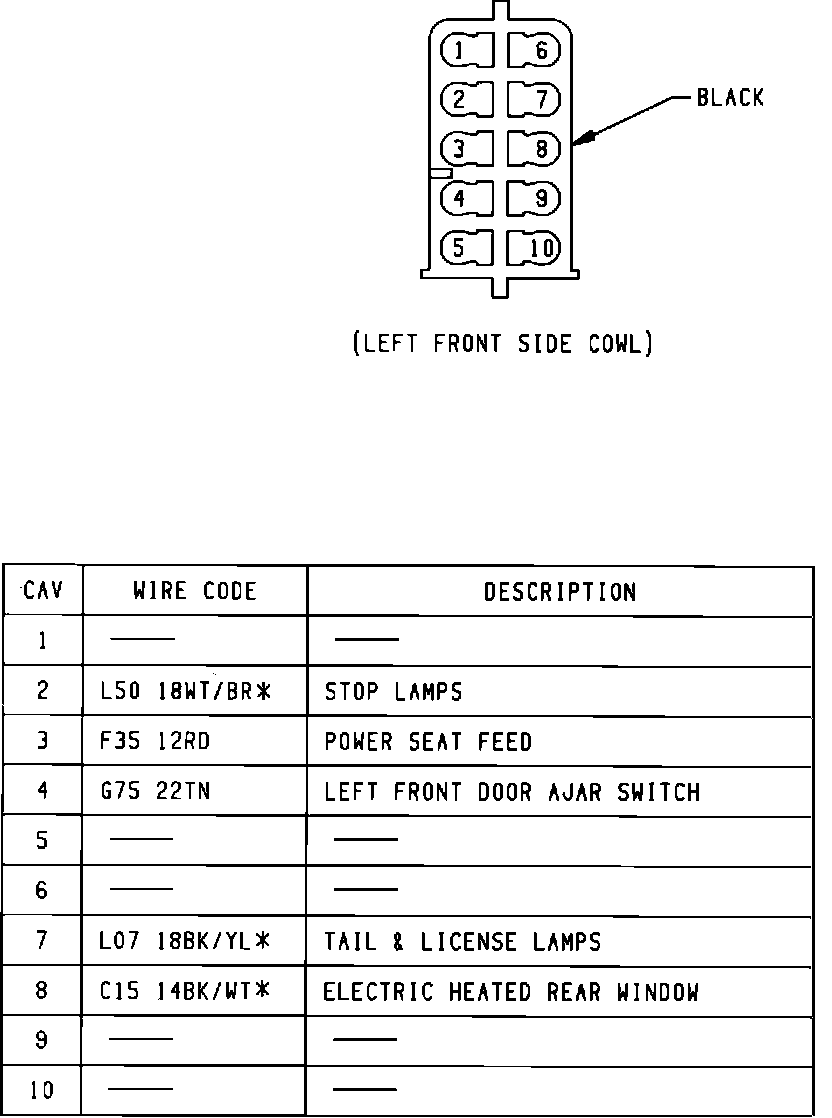

Left Instrument Panel To Body Wiring:

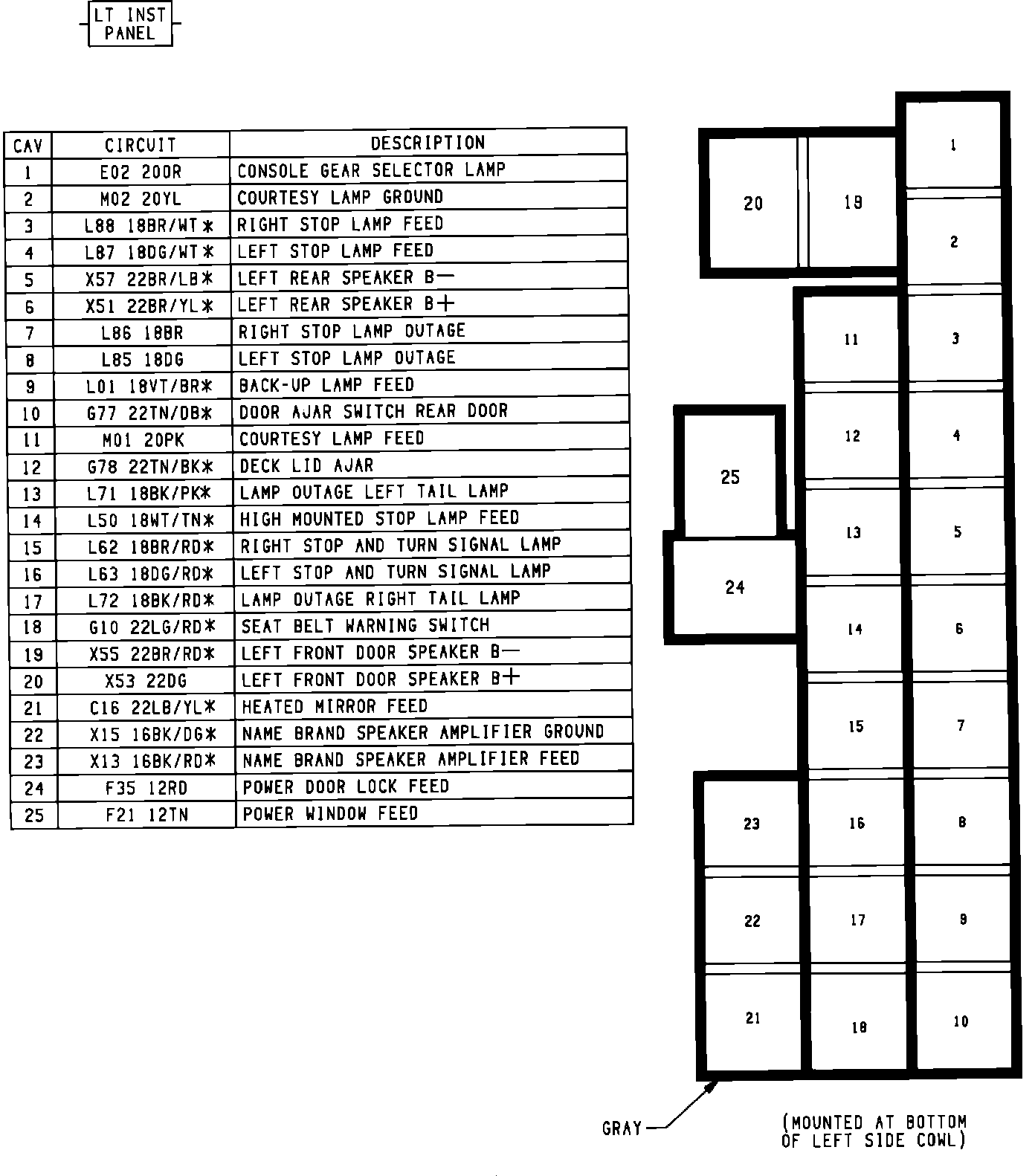

Instrument Panel Wiring To LH Body Connector:
