Convertible Top: Adjustments

Convertible Top Adjustment Procedure:

ADJUSTMENTS (MAJOR AND MINOR)
Minor adjustments are provided to assist in aligning the top header to the windshield header to prevent leakage into this area; to improve top frontal appearance and assure each of raising and lowering operation.

They are also provided to assure correct alignment of the roof side rails with door and quarter glass to prevent leakage. Adjustments are provided to eliminate wrinkles in the material.

Major adjustments are at the cam, control link bracket, and the outer mounting. These adjustments are necessary to improve roof side rail alignment if minor hinge and header adjustment do not completely correct the condition.

The preferred sequence of adjustments is as follows:
1. Dowel pin adjustment.
2. Latch hook adjustment.
3. Cam adjustment.
4. Control link adjustment.

These adjustments should be used, as necessary, to reduce effort and stay within specifications while maintaining sealing.

ADJUSTMENT PROCEDURE
The side to side adjustment is made possible by using the elongated slots in the folding top header. The steps required to make this adjustment are as follows:

1. Loosen pins.
2. Position pins in slots so the center line of both pins are aligned with both holes (in the windshield header mounted striker) at the same time.
3. Tighten pins.

LATCH HOOK ADJUSTMENT
Lengthening the latching hook reduces effort and is done as follows: Loosen the set screw, turn the hook counterclockwise, then tighten set screw. The hook has an adjustment range of 1.00 inch minimum to 1.40 inch maximum. One turn of the hook counterclockwise extends the hood 0.04 inch (1 mm). If latching is difficult after the dowel pin adjustment, lengthen the hook 2 turns counterclockwise. If still difficult, repeat, as necessary, until hook reaches its maximum length.

CONTROL LINK ADJUSTMENT

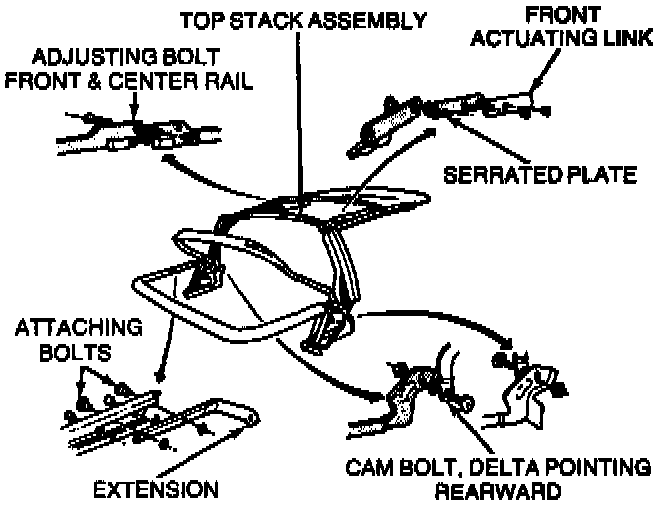

The control links incorporate serrated adjusting plates. With the top latched, to the header, loosen both bolts just enough to permit moving link up or down. Push upward in the area of the front to center rail joint (be careful not to pinch hand between these rails). The rails should be pushed up by hand as far as possible. With the control link adjusting bolts loosened, allow the control link to seek its proper position. Tighten bolts while rail assembly is held in the position described above.

ROOF SIDE RAIL ALIGNMENT
The roof side rail structure consists of separate rails hinged together to enable the top to fold into the well. The rails must be in good alignment and parallel to top edges of door and quarter glass to provide a good weatherseal.

The front to center door rail adjustment is made by turning a cam bolt until the rails are aligned to match the top edges of the door and quarter glass.

DOOR END GLASS ALIGNMENT
After making top adjustments, doors, door glass, and quarter glass must be properly aligned. Misalignment in any of these areas make it impossible to obtain satisfactory results from top adjustments alone. Glass up-stop adjustments should be made after the correct roof side rail alignment, to limit the upward travel of the glass and to assure effective sealing between the roof side rail weatherstrip and glass.

HEADER ADJUSTMENTS
Inspect top linkage and mouldings for sharp objects, burrs, and screws that are too long which may damage the top material. Dress or file them down. The top header is adjustable at the front, roof side rails to permit fore and after movement.

The header is attached to the side rails by two screws at each side.

Incorrect alignment between the top header and windshield finish mouldings may result in leakage or cause objectionable lacking or unlocking effort. Inspect clearance for uniformity. The dowels control the fore and aft position of the folding top header.
