With Rear Speaker Amplifier

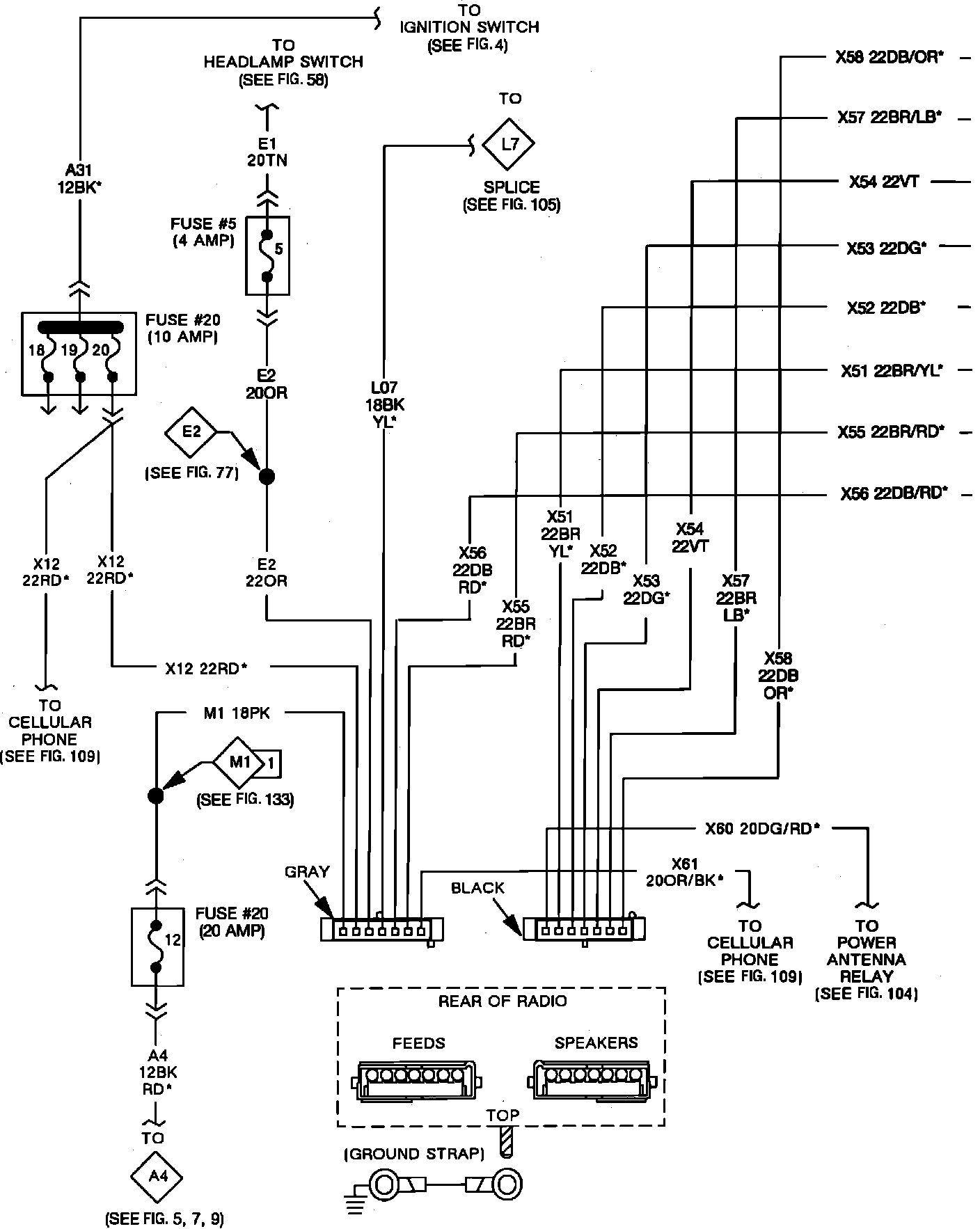

Electronically Tuned Stereo Radio With RS Amplifier:

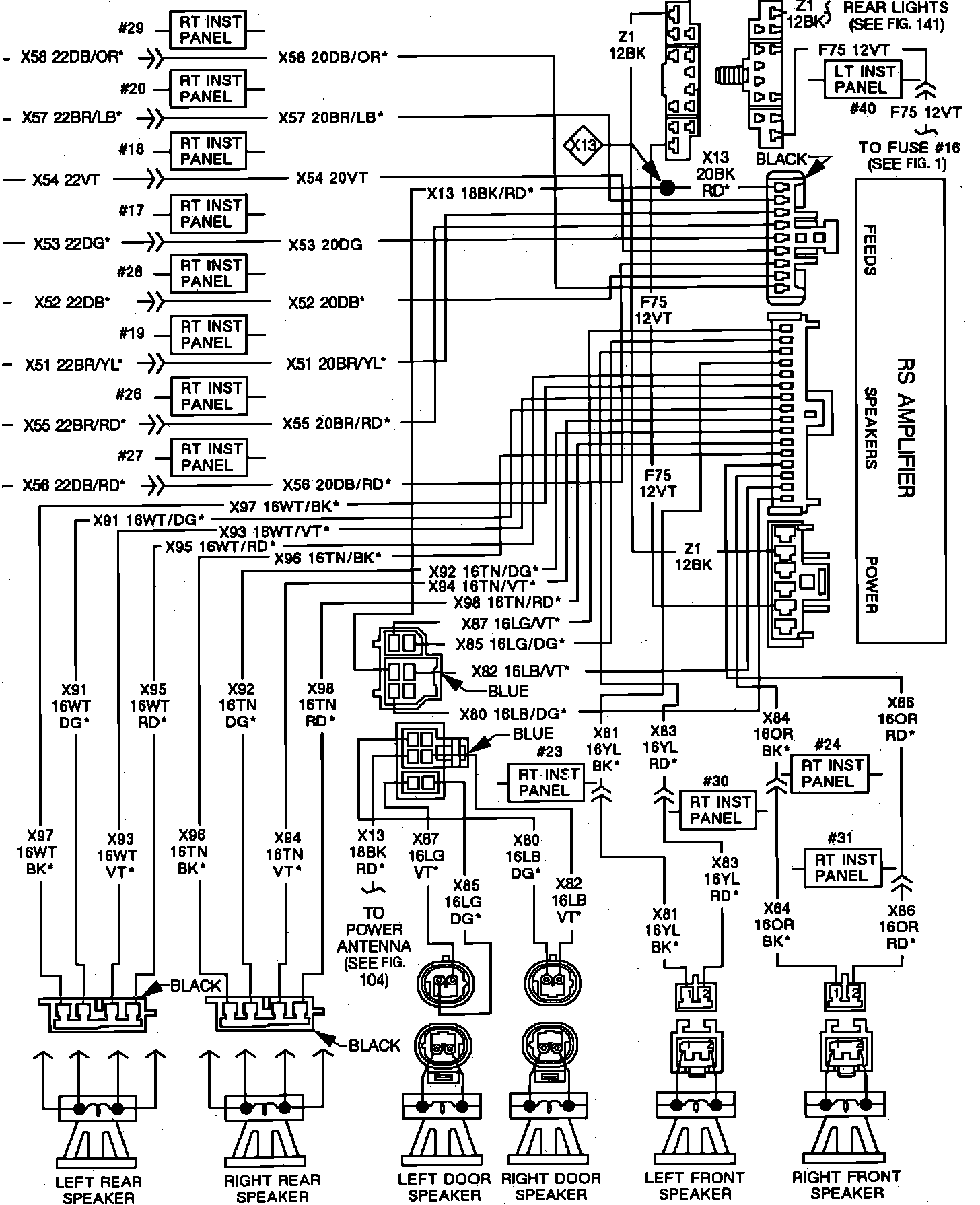

Electronically Tuned Stereo Radio With RS Amplifier:
