Without Rear Speaker Amplifier

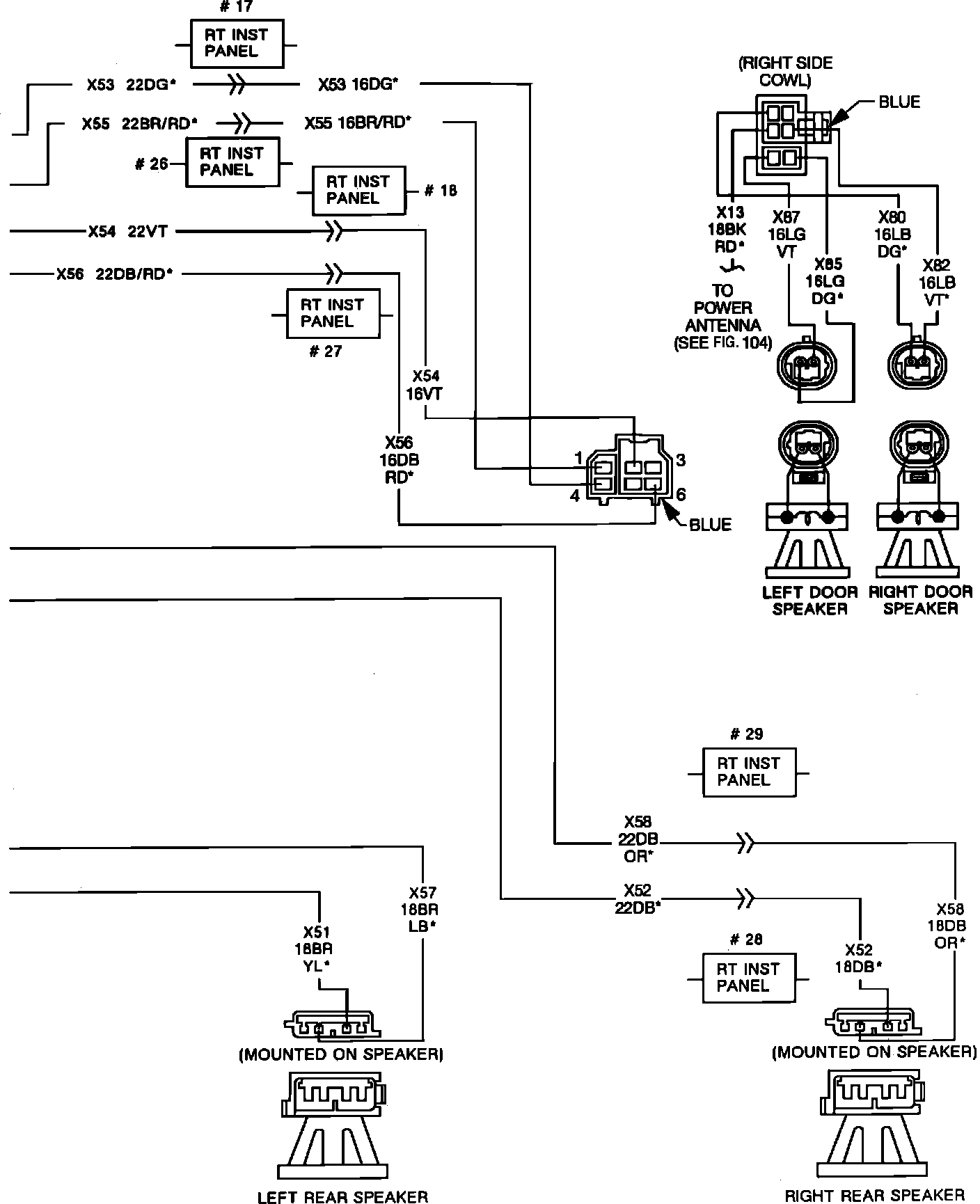

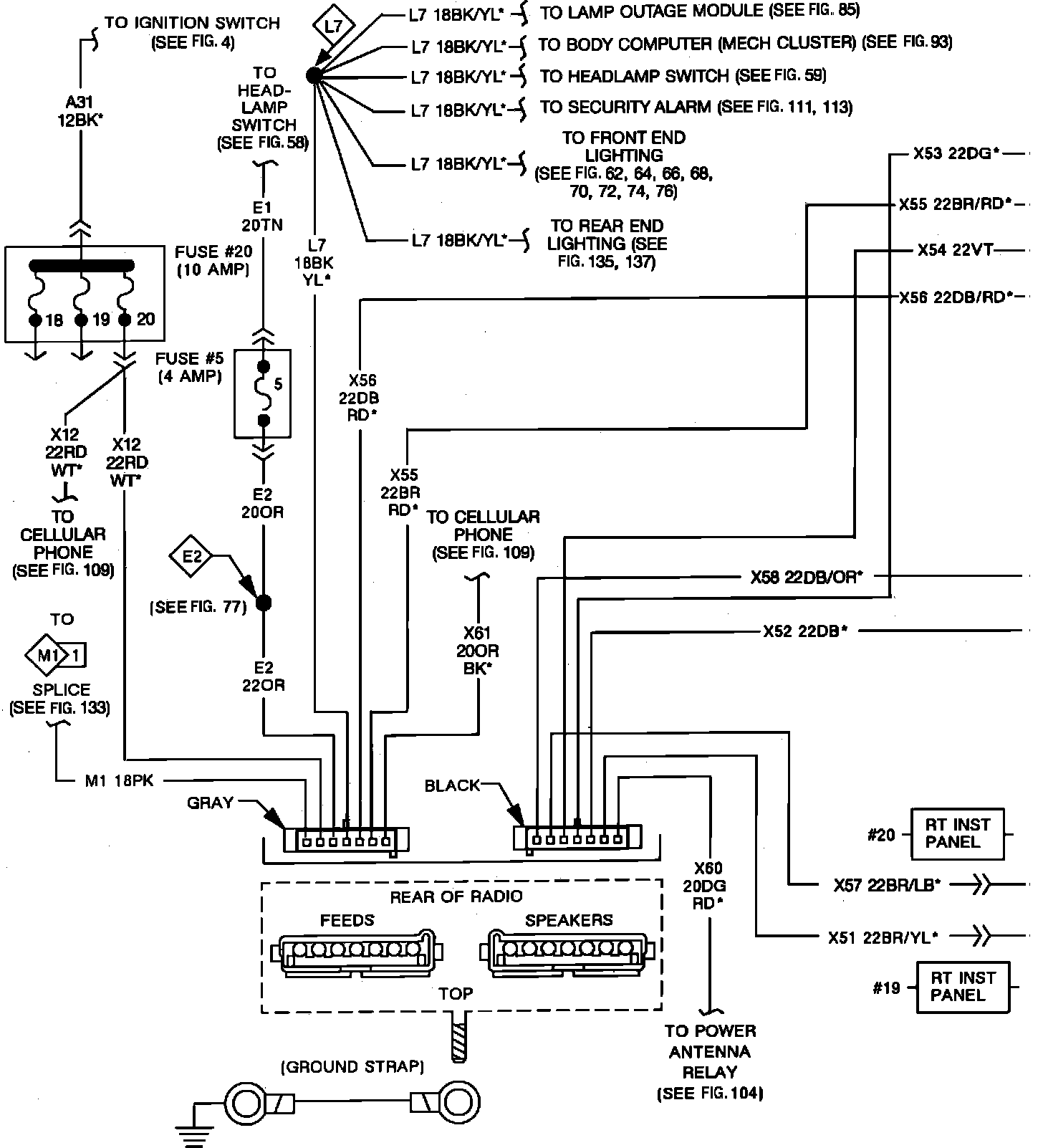

Electronically Tuned Stereo Radio:



Electronically Tuned Stereo Radio:
