Lebaron Convertible L4-153 2.5L SOHC VIN K TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Daytime Running Lamp Control Unit
Daytime Running Lamp Control Unit

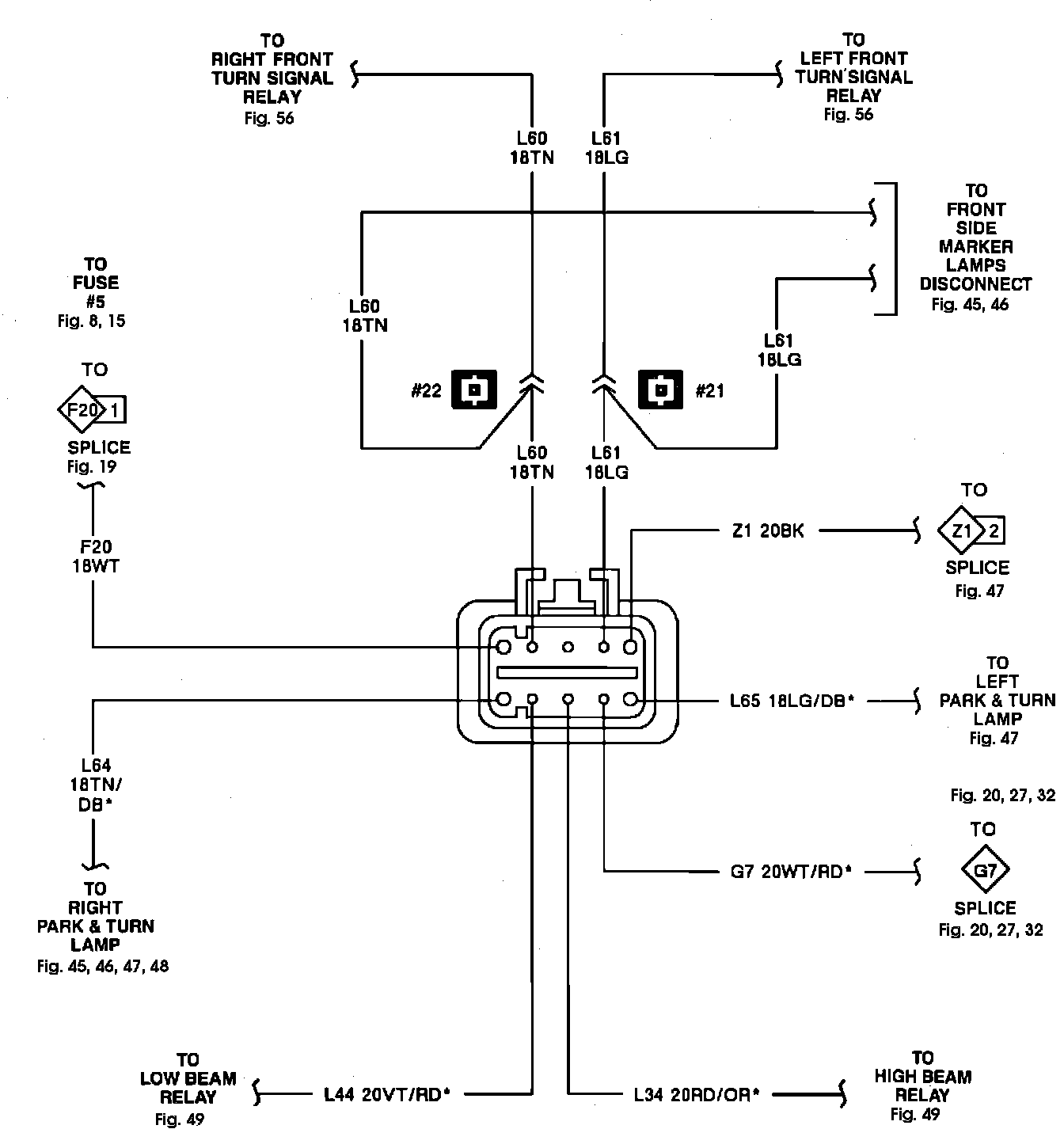

Daytime Running Lights Module Connector:
