Home >> Chrysler >> 1991 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats

Seats

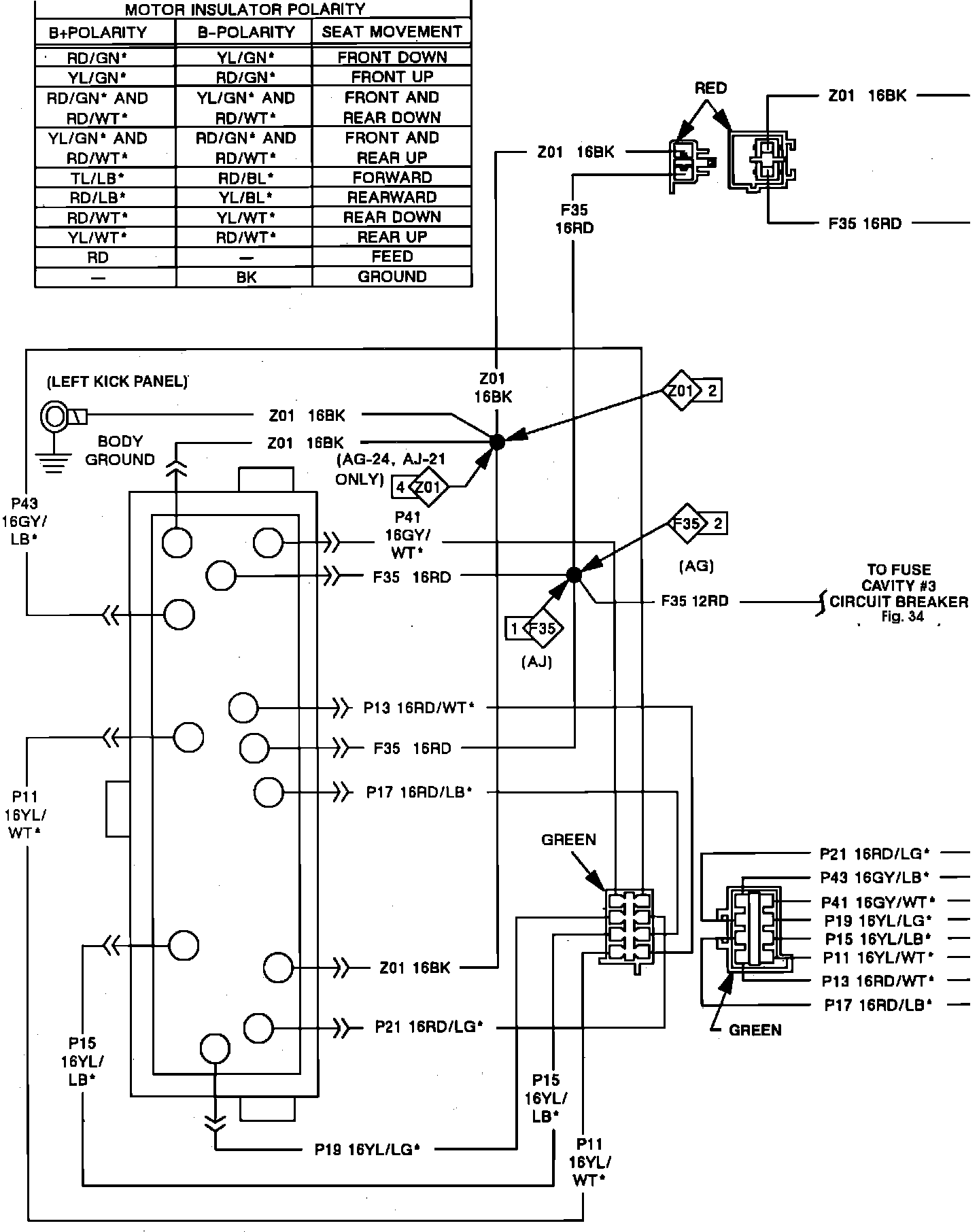

Left Bucket Power Seat:



Enthusiast Seat Jumper:
