Wiper and Washer Systems

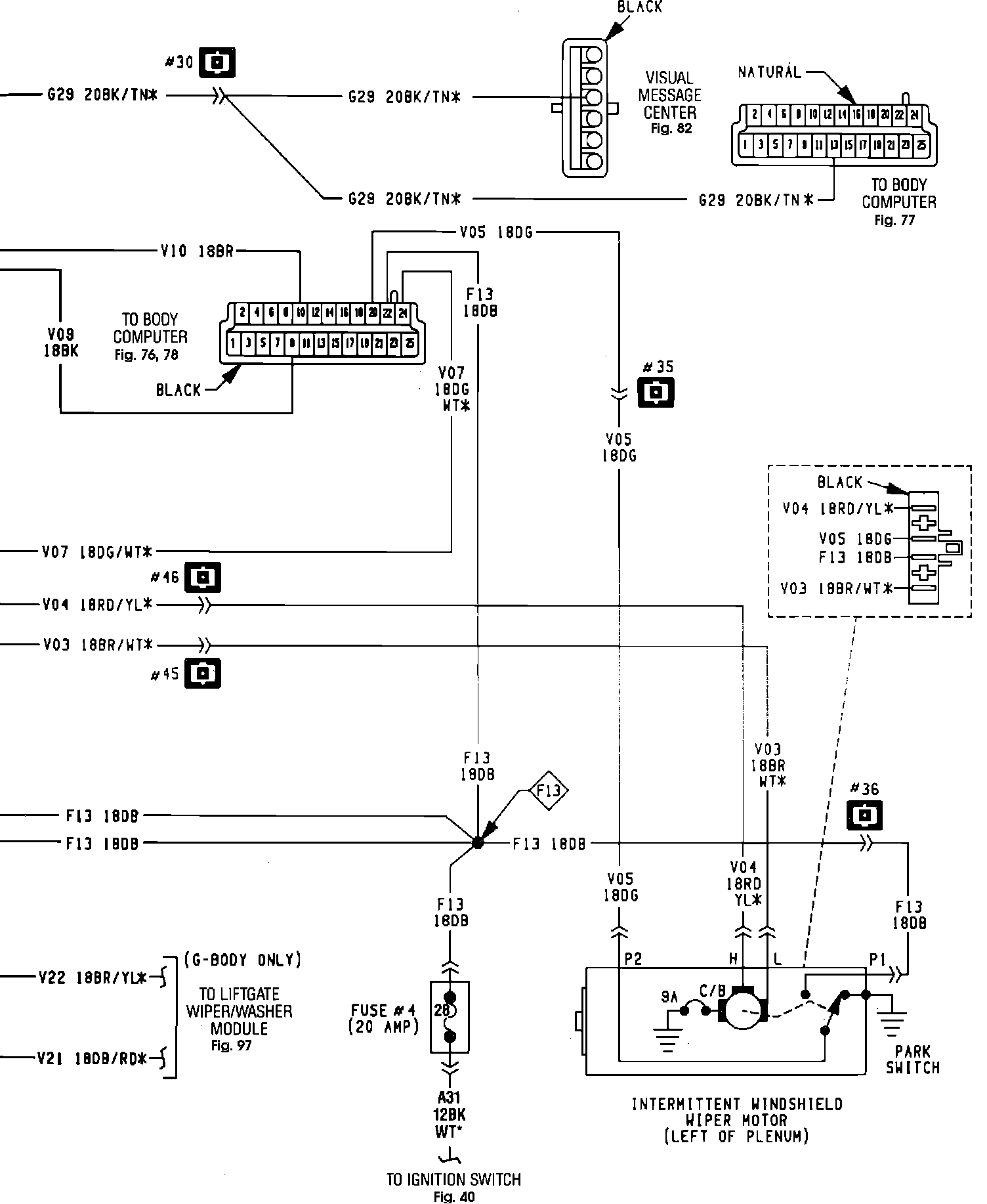

Intermittent Wiper System -- Part 1:



Intermittent Wiper System -- Part 2:
