Wiring Diagrams

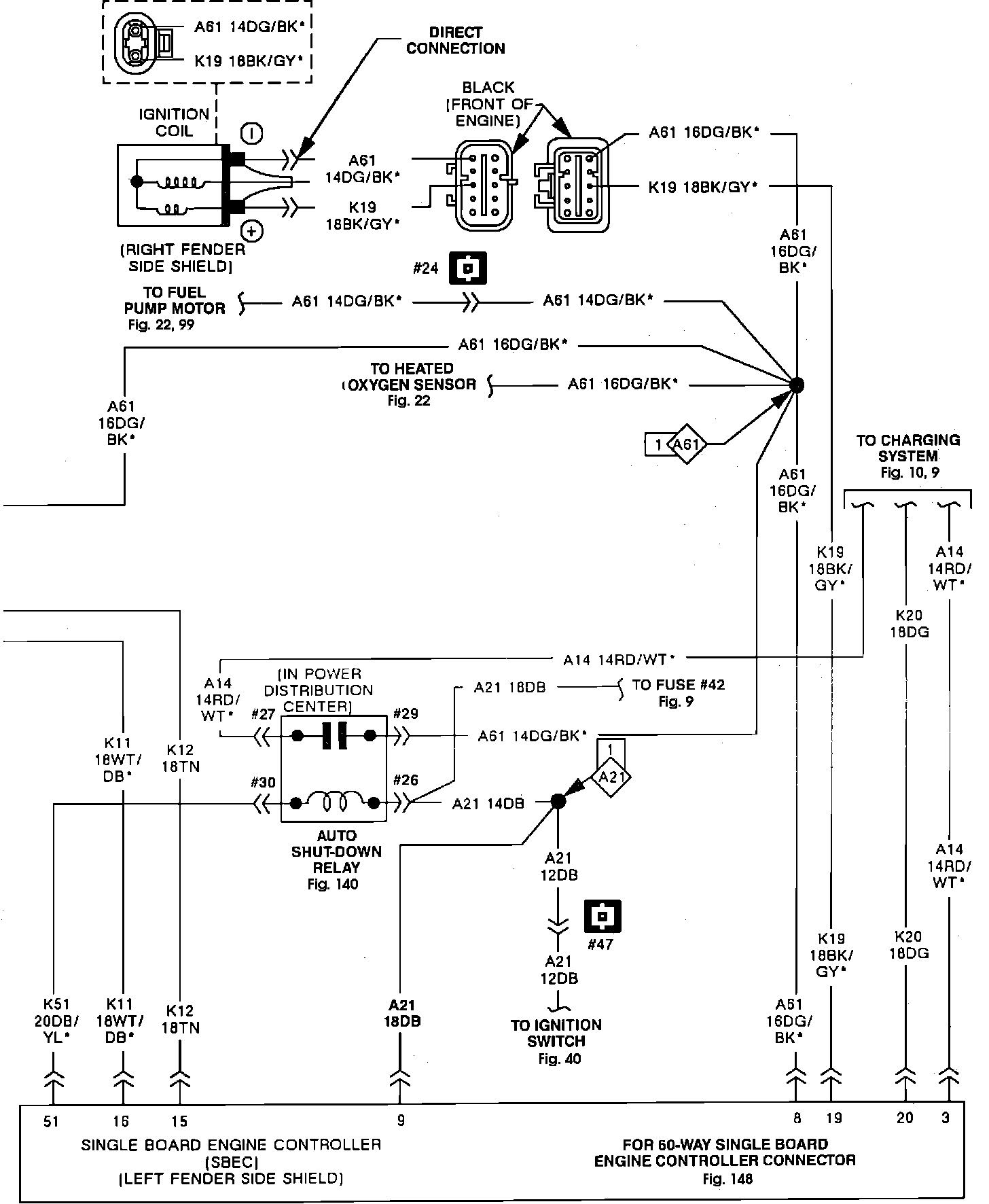

Fuel Injection Ignition System (Turbo):

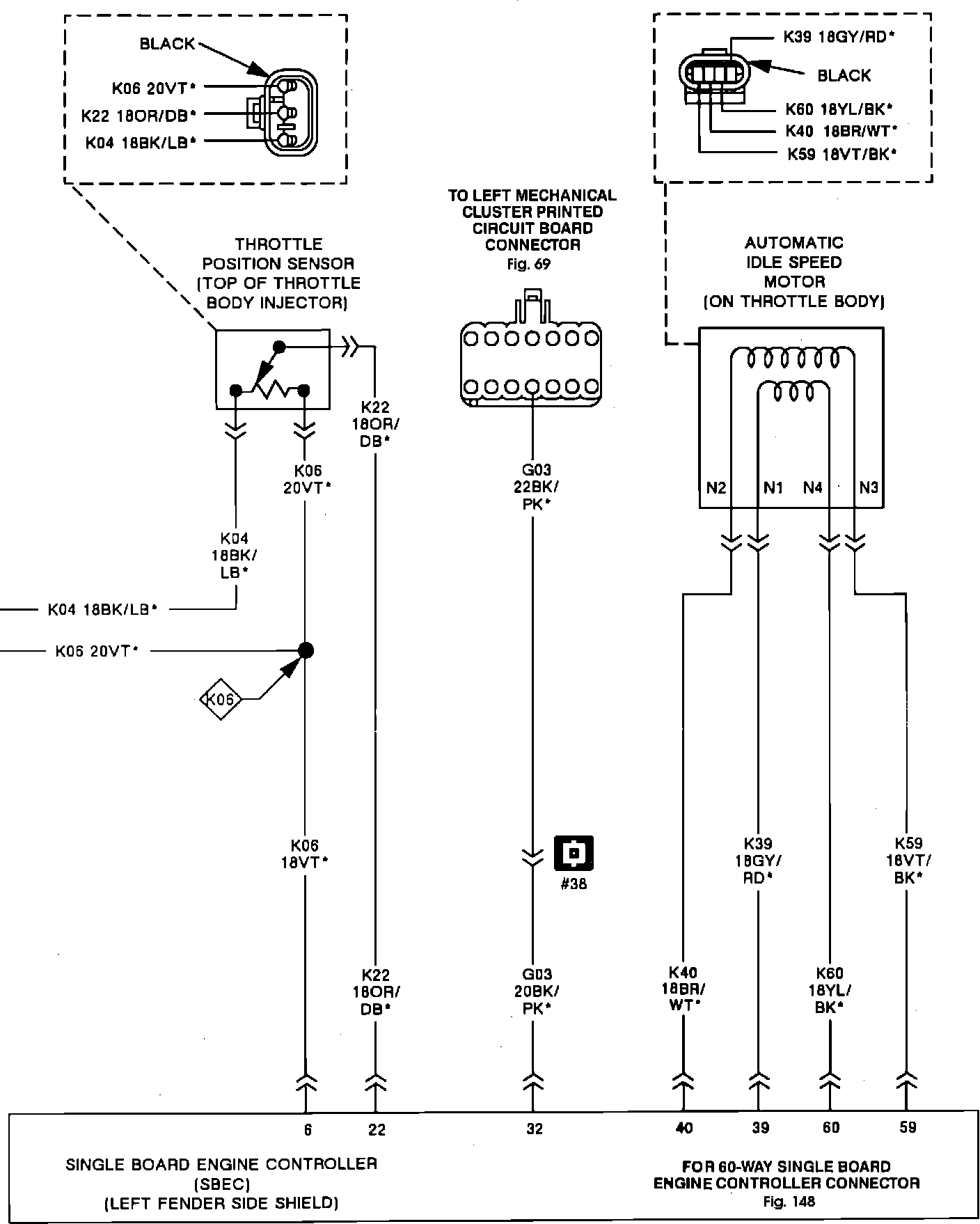

Fuel Injection Ignition System (Turbo):

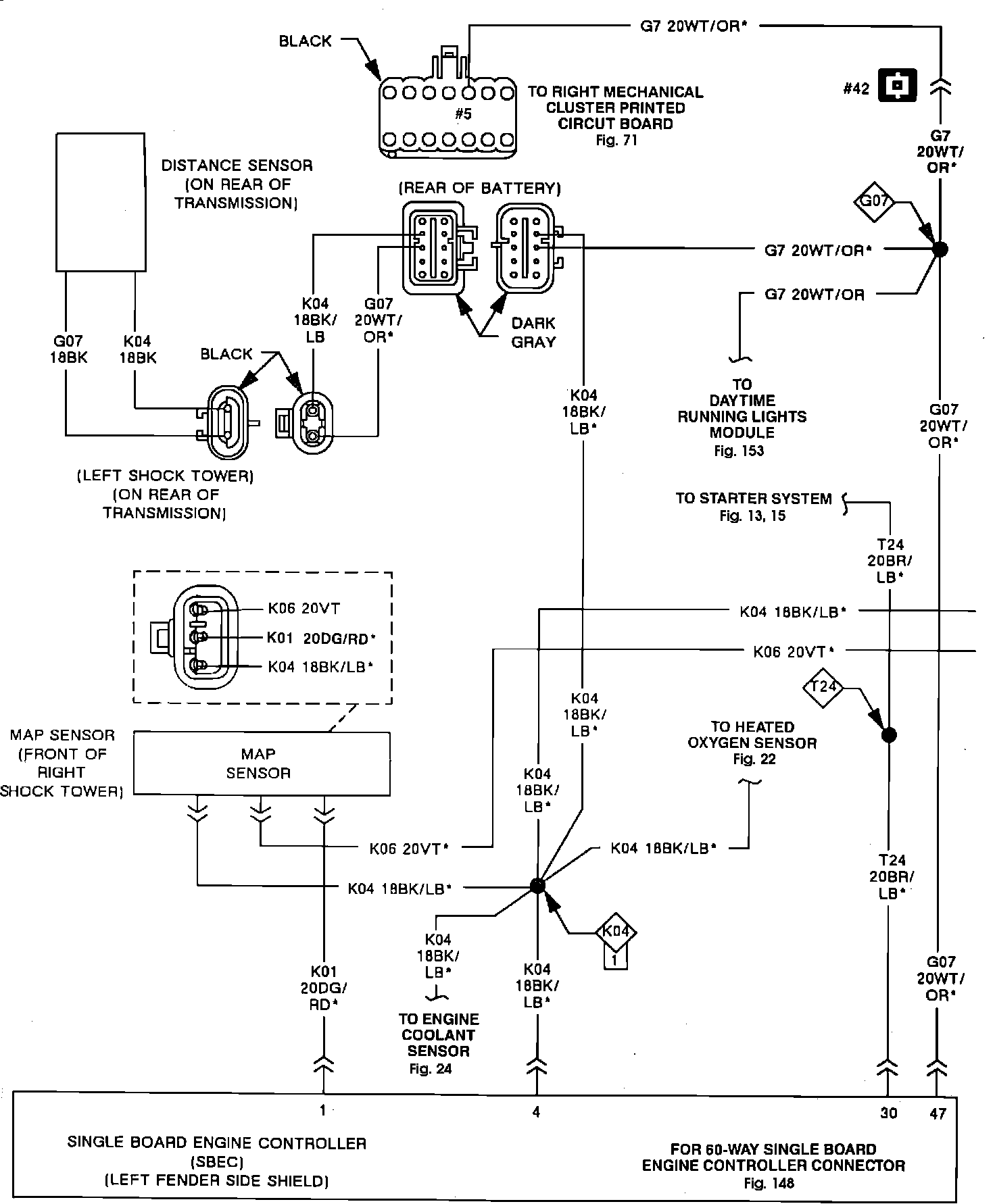

Fuel Injection Ignition System (Turbo):

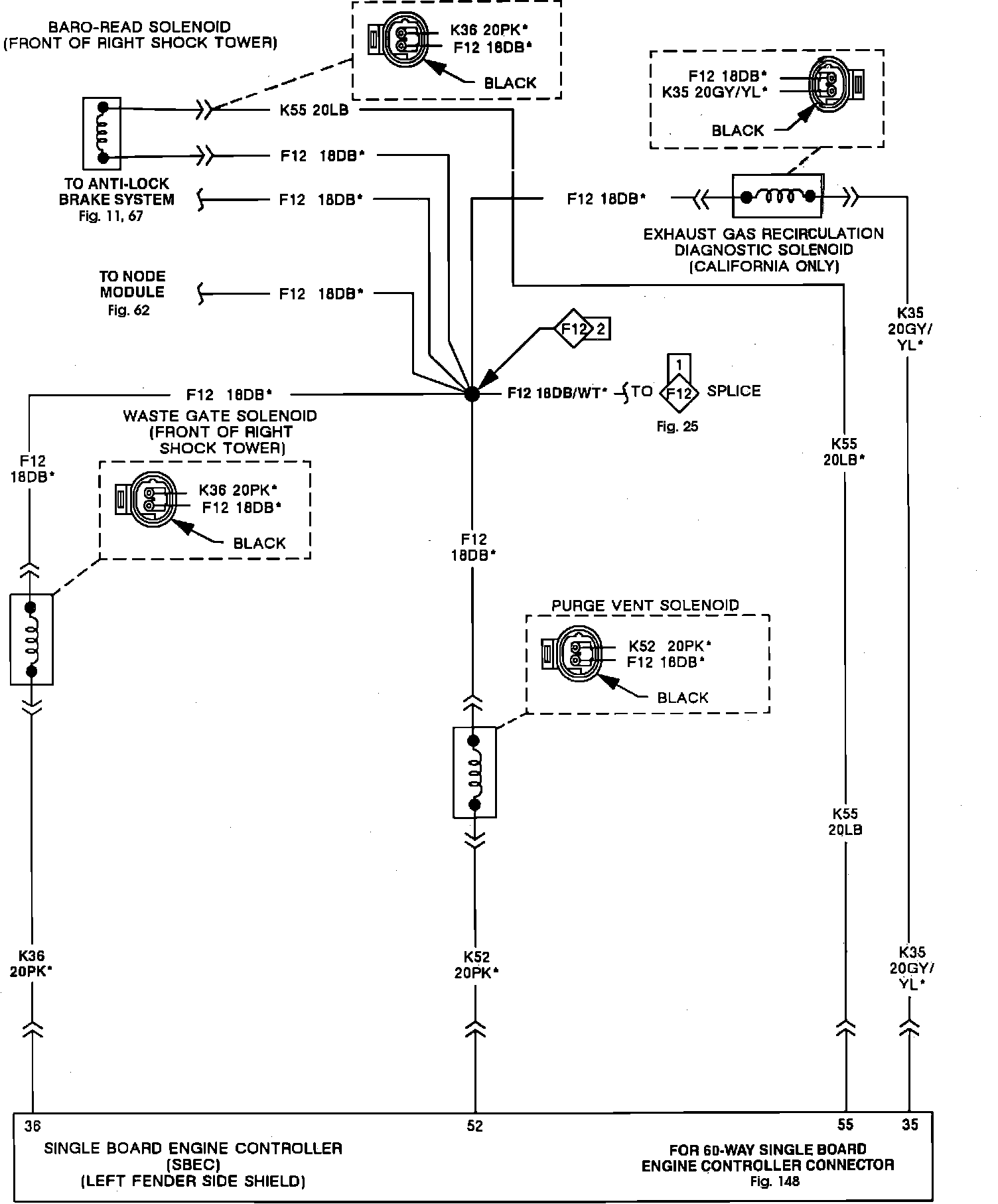

Fuel Injection Ignition System (Turbo):

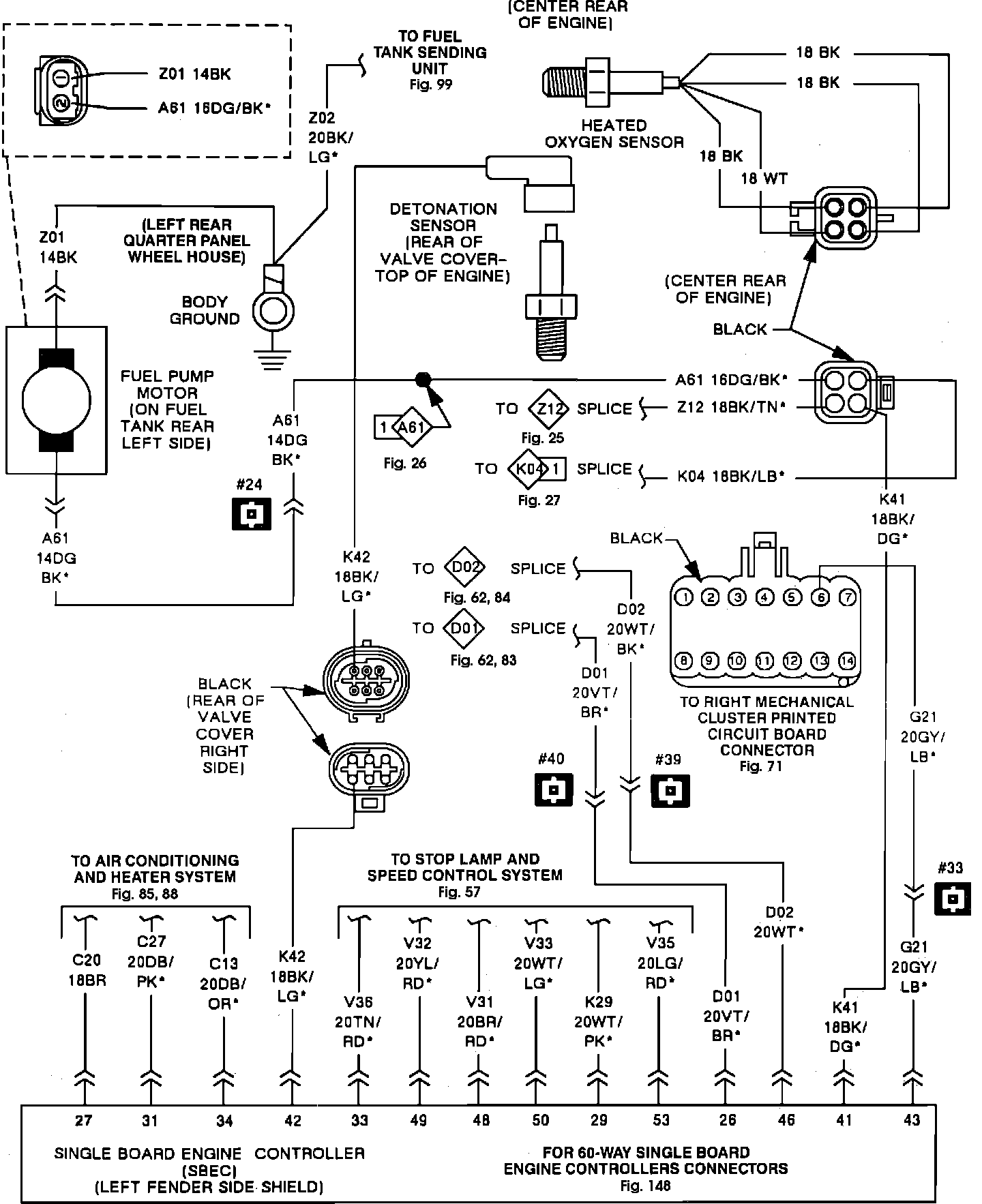

Fuel Injection Ignition System (Turbo):
Fuel Injection Ignition System ( Turbo):
Fuel Injection Ignition System (Turbo):
For "SEE FIG." pointers, SEE Diagrams by Figure Number
