Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
1991
>>
Lebaron Coupe V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Hazard Warning Lamps
Hazard Warning Lamps

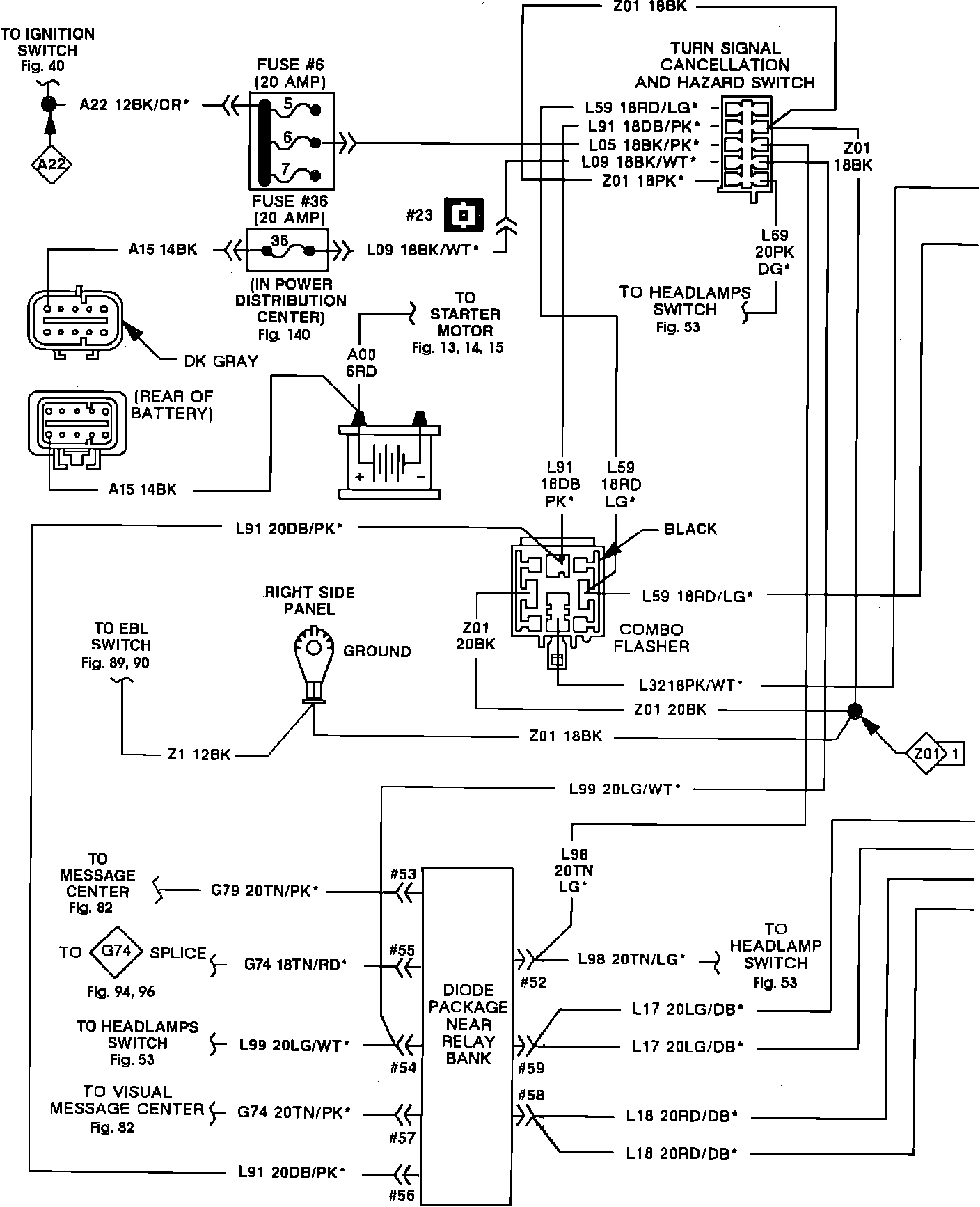

Turn & Hazard Flasher - Part 1:
