New Yorker V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Diagrams
>>
Connector Views
Connector Views

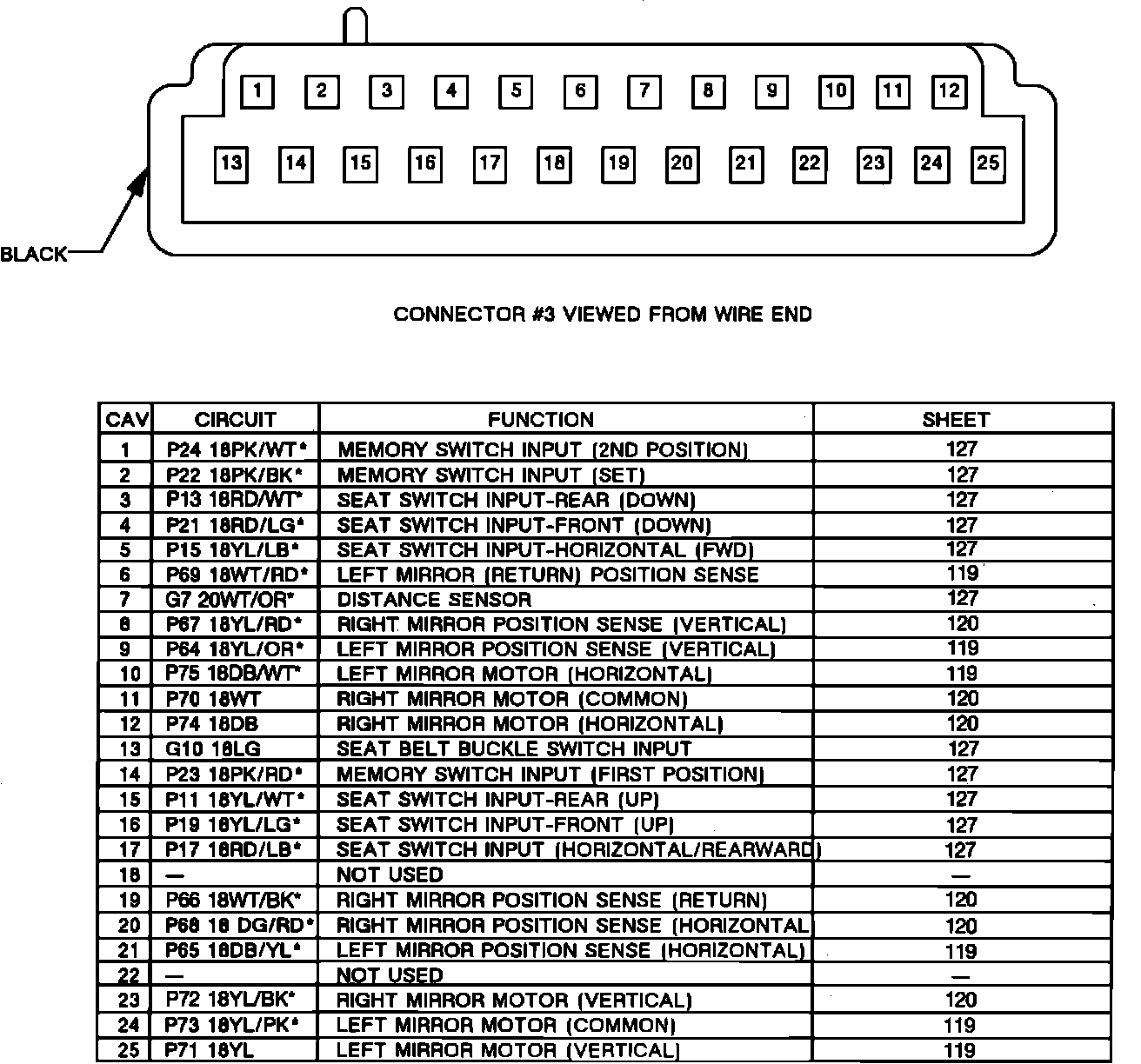

Memory Power Seat & Mirror Connector:
