Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams >> Less Power Recliner >> With Memory

With Memory

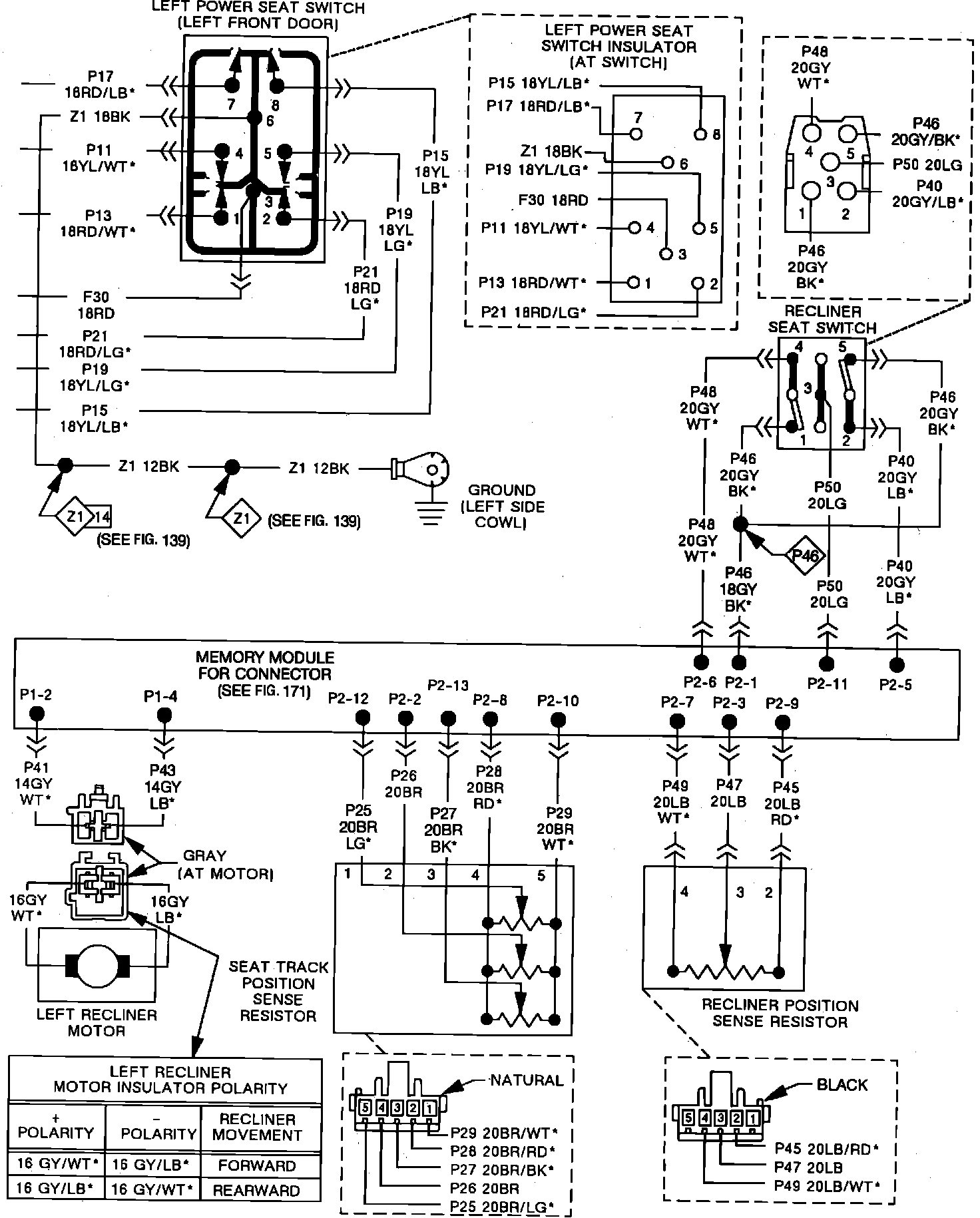

Power Seats. With Memory:

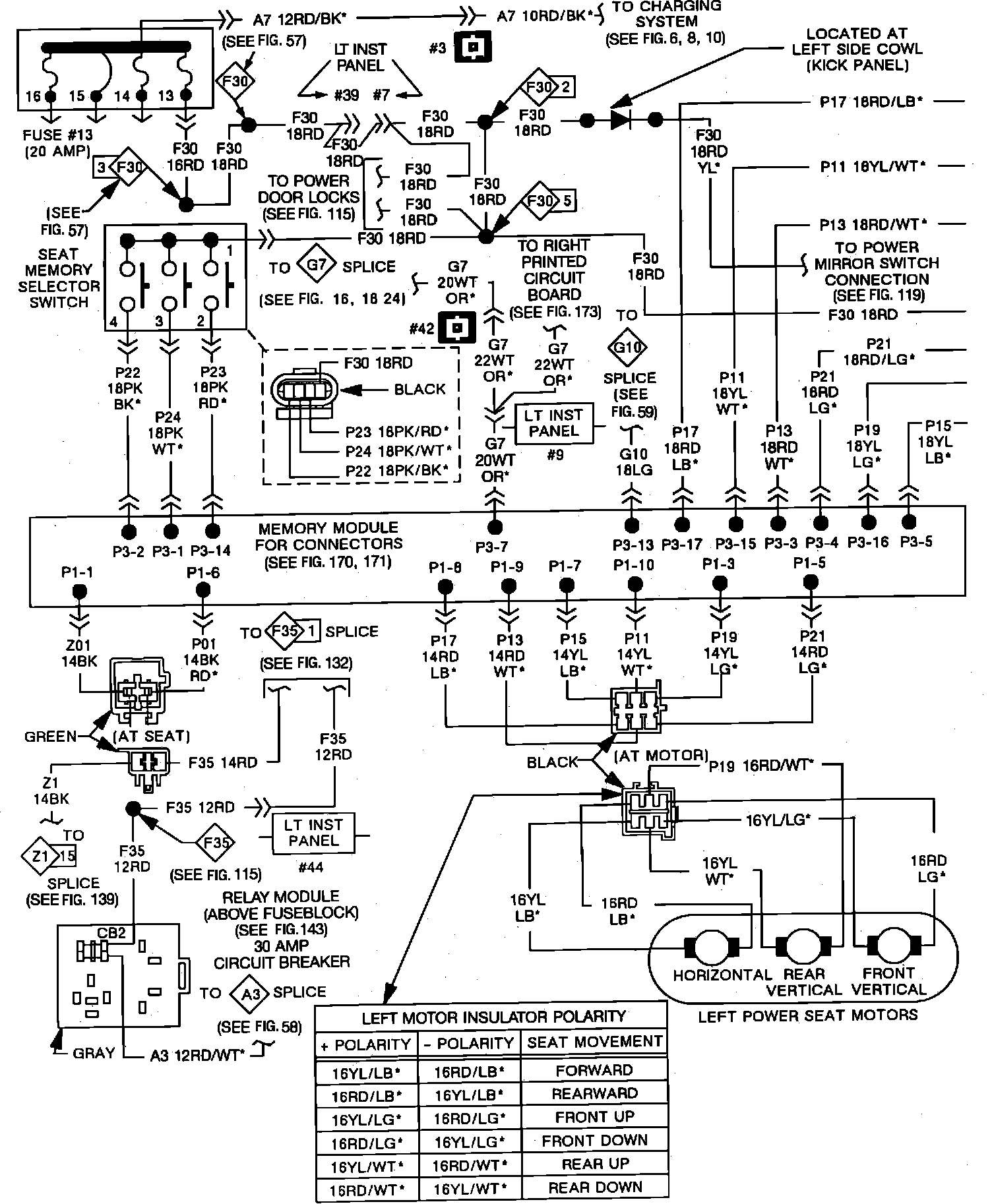

Power Seats. With Memory:
