Mechanical Cluster

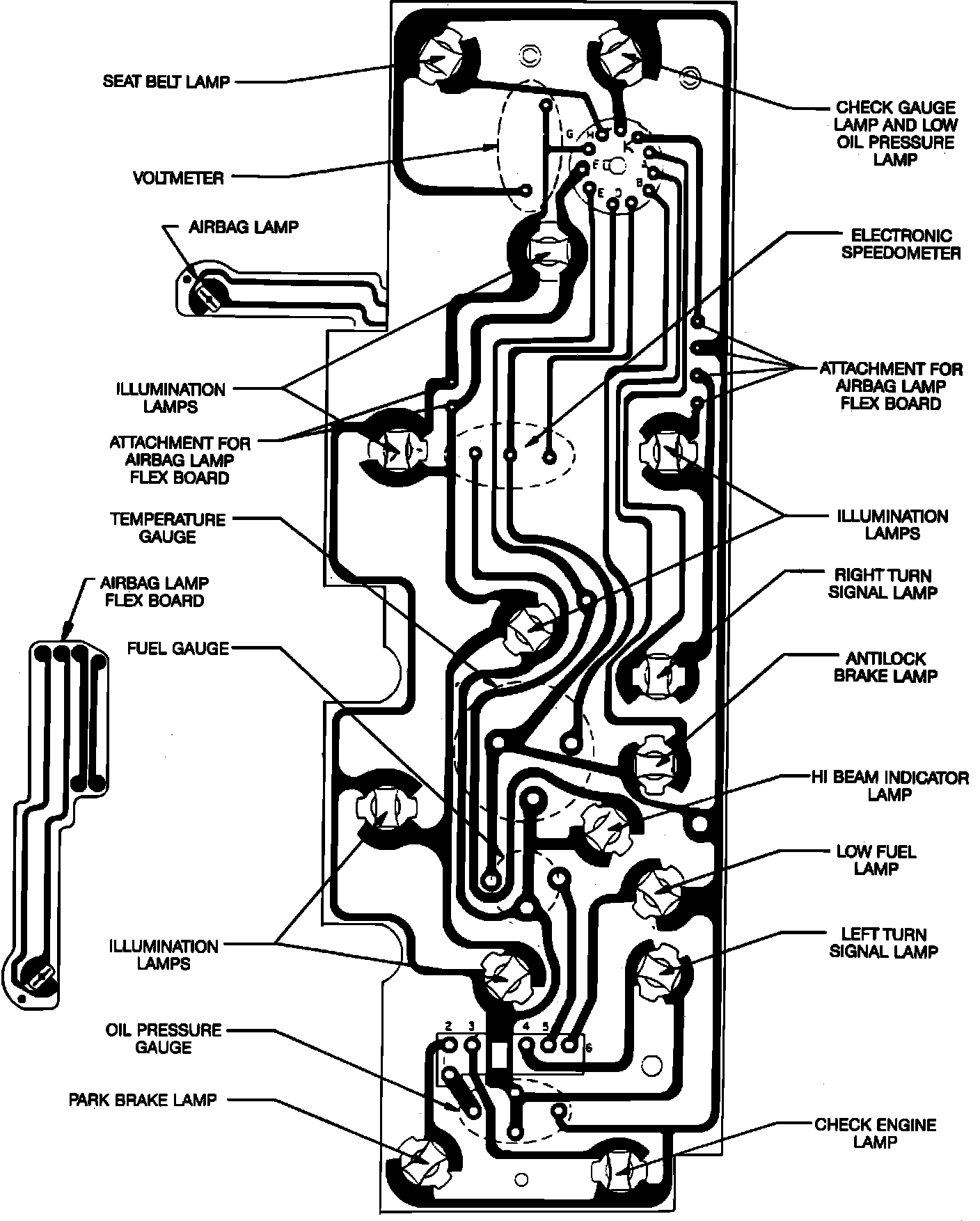

Mechanical Cluster Printed Circuit Board Connectors:

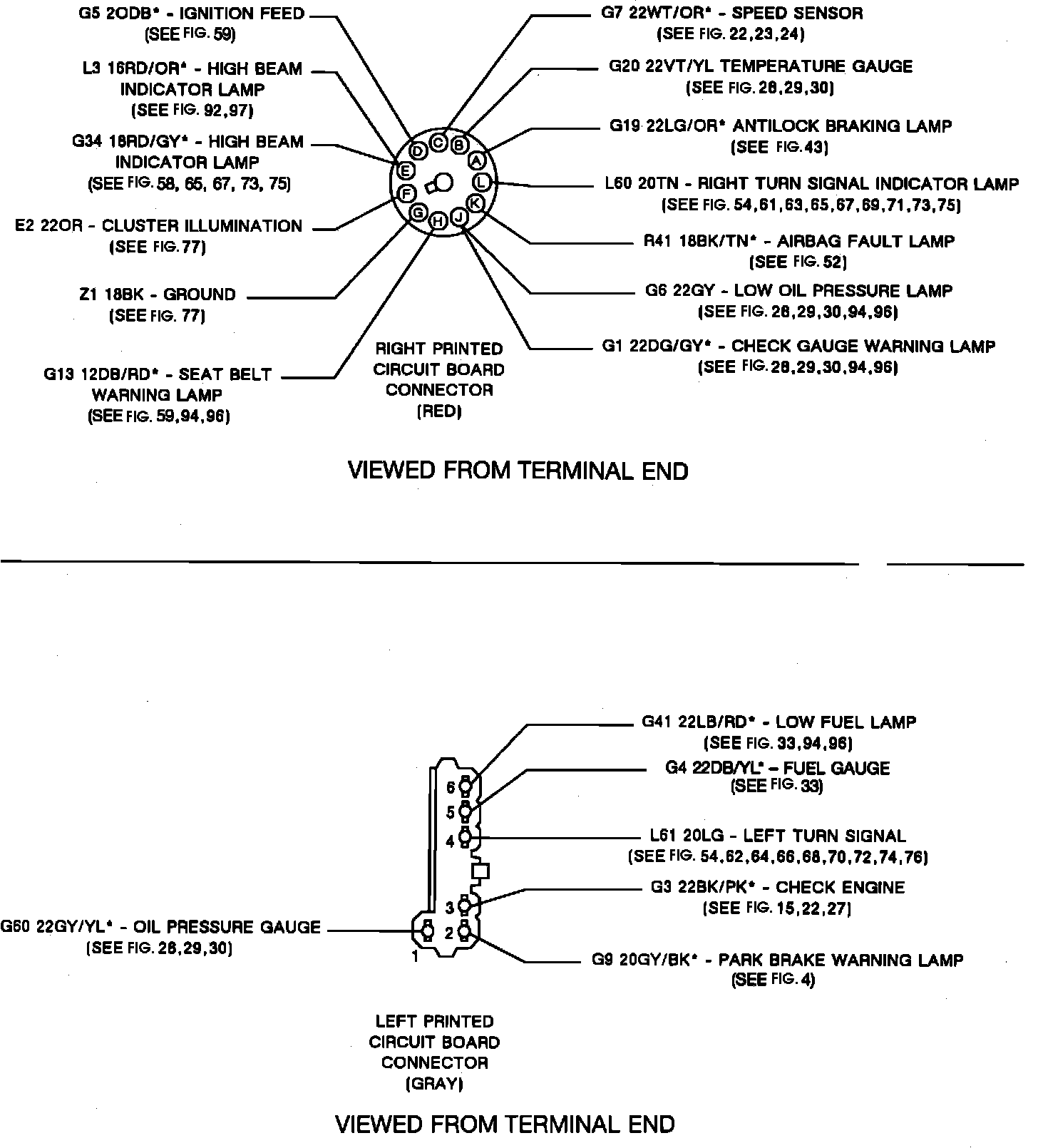

Mechanical Cluster Printed Circuit Board Connectors:
