Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Cigarette Lighter >> Front Cigar Lighter

Front Cigar Lighter

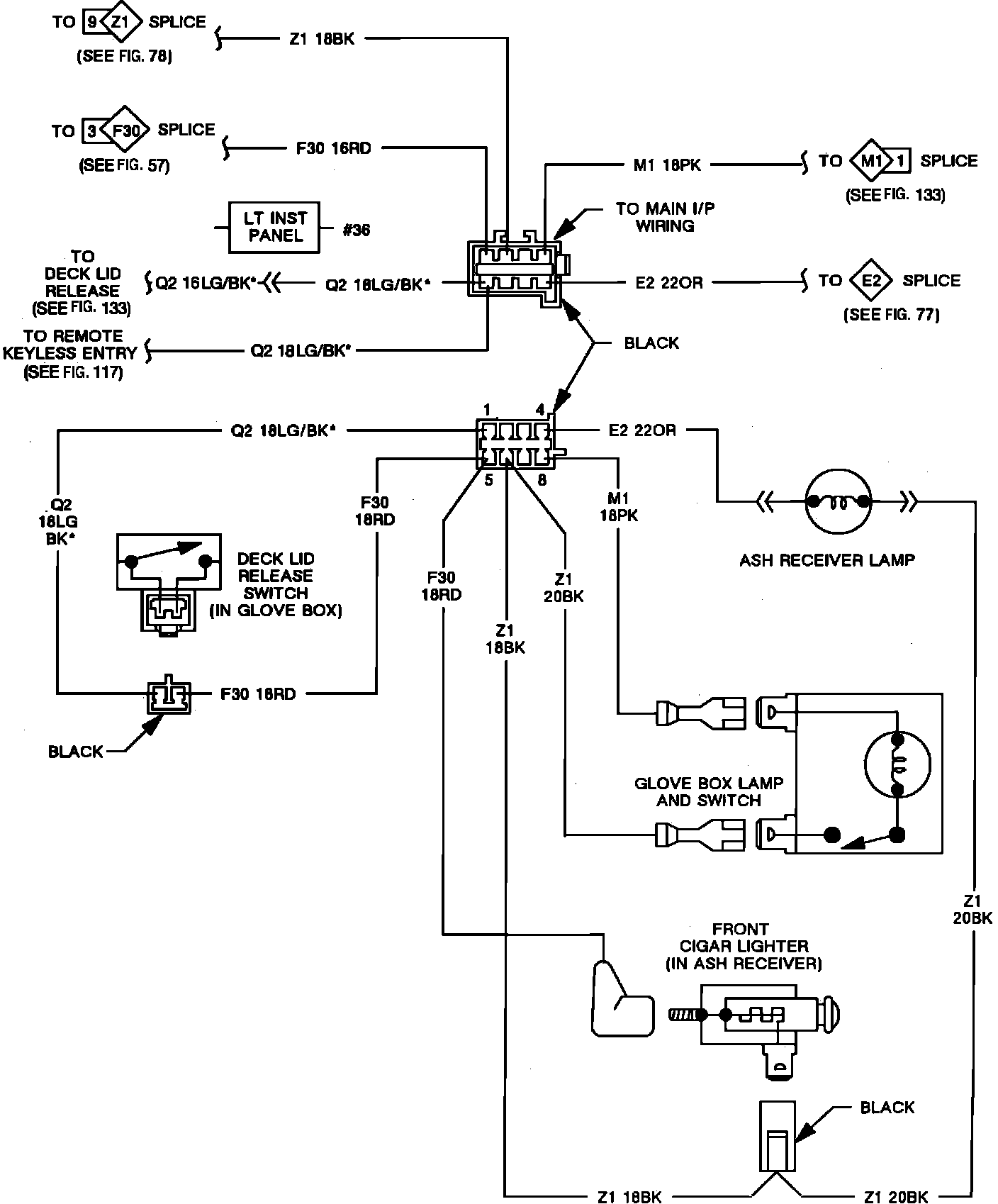

Glove Box Module & Front Cigar Lighter:
