New Yorker V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
System Diagram
>>
Warning Indicators
>>
Seatbelt Warning System
Seatbelt Warning System

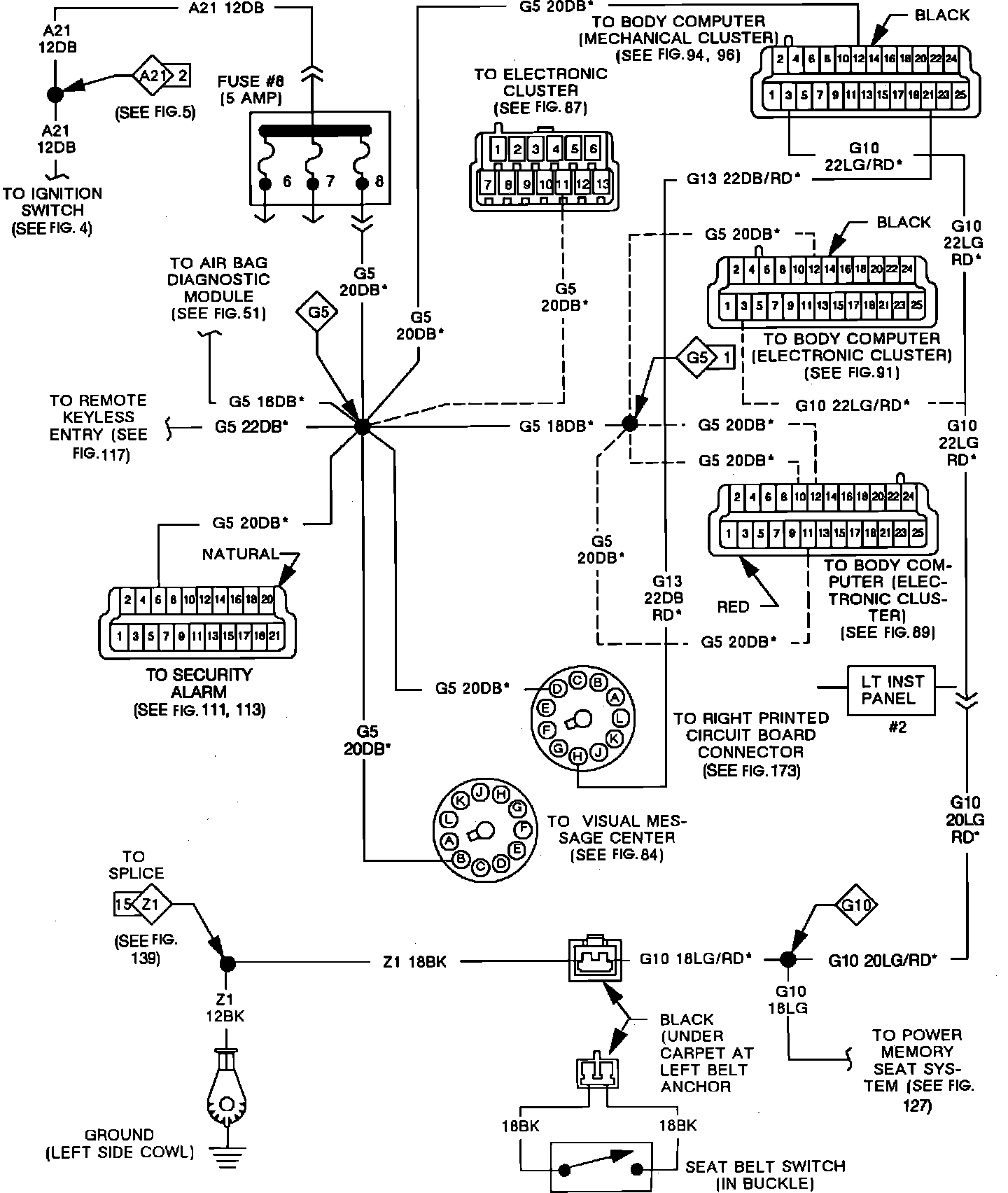

Seatbelt Warning System:
