Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Front End Lighting >> USA

USA

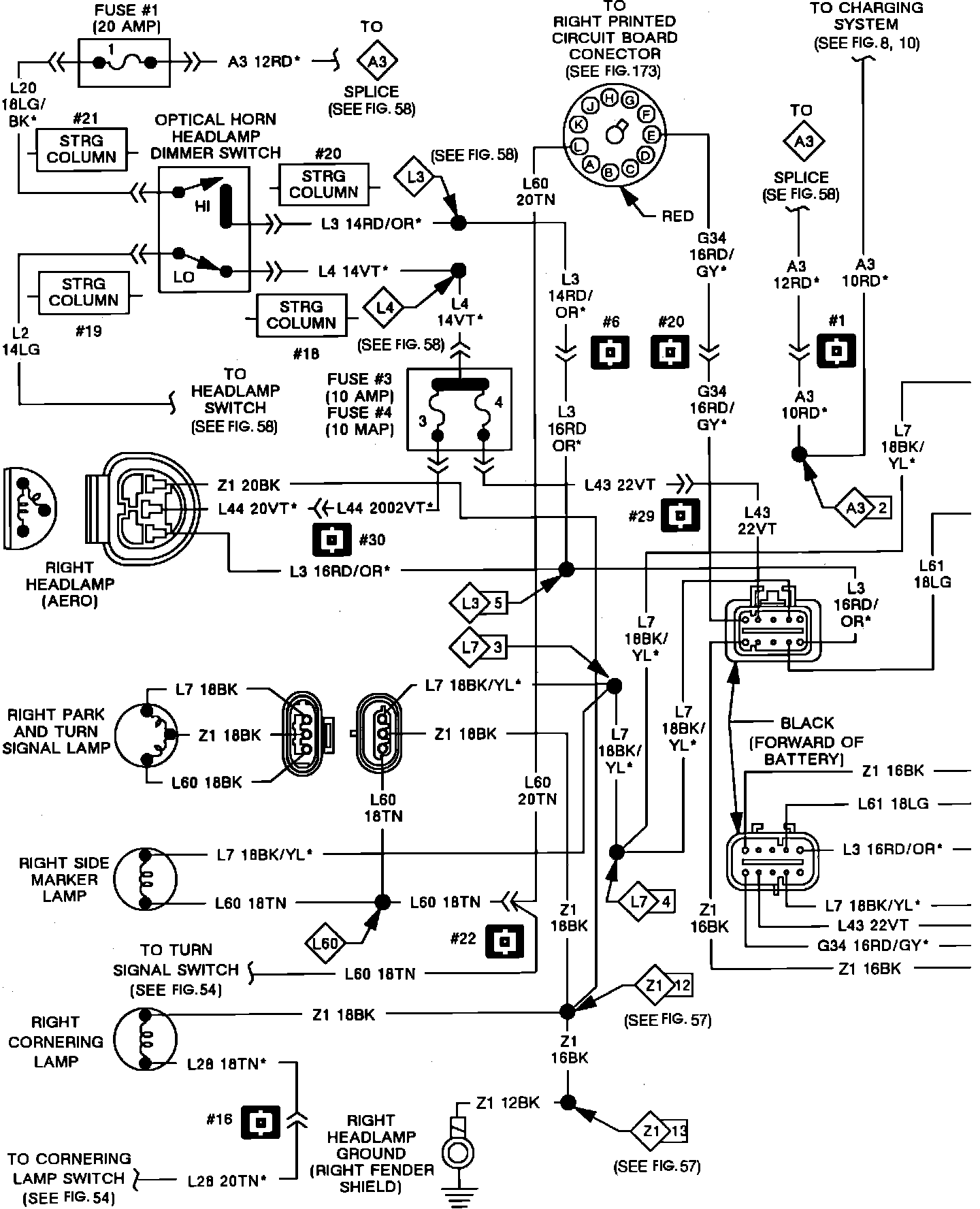

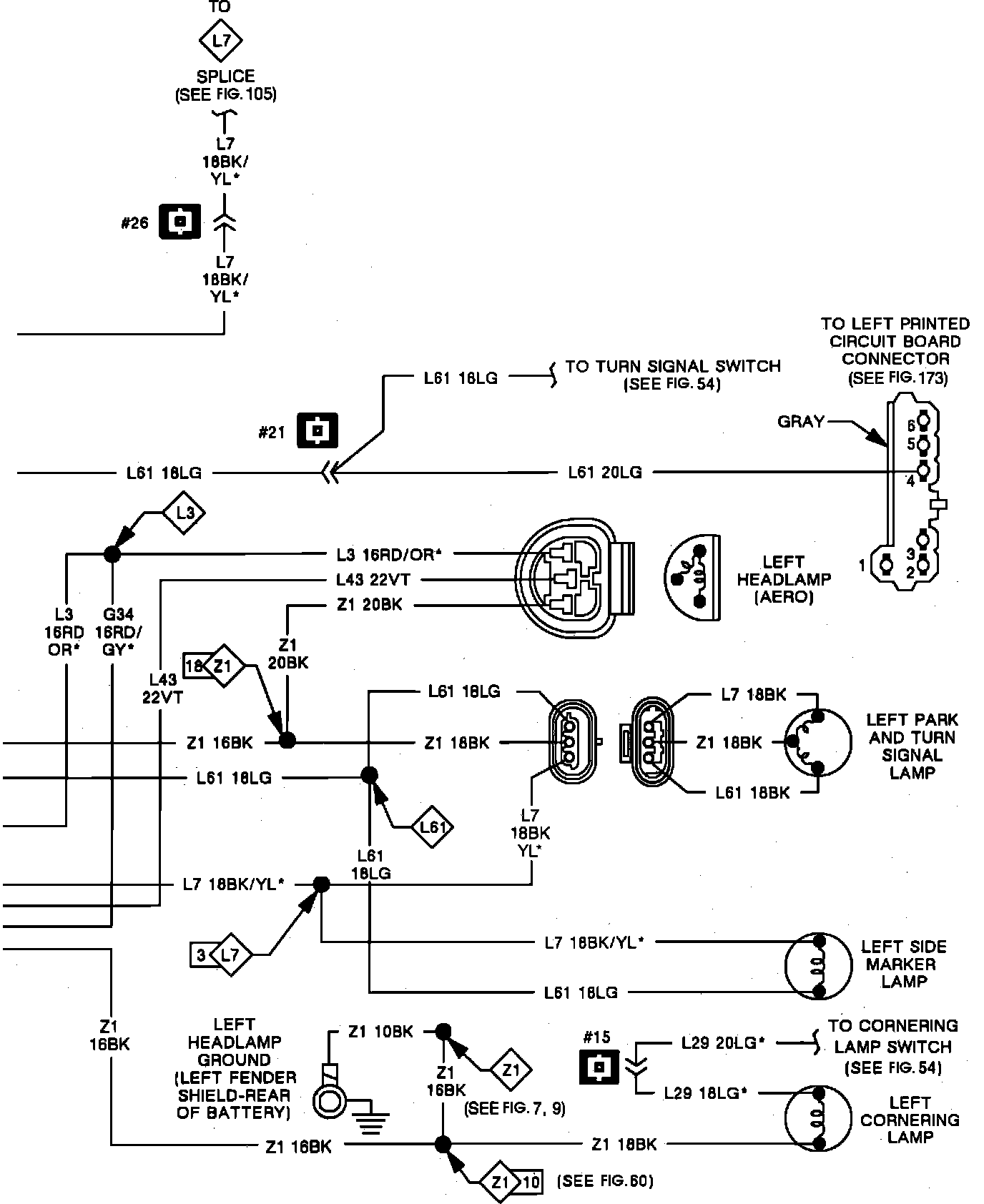

Front End Lighting. Aero Headlamps:



Front End Lighting. Aero Headlamps:
