Mirrors
>>

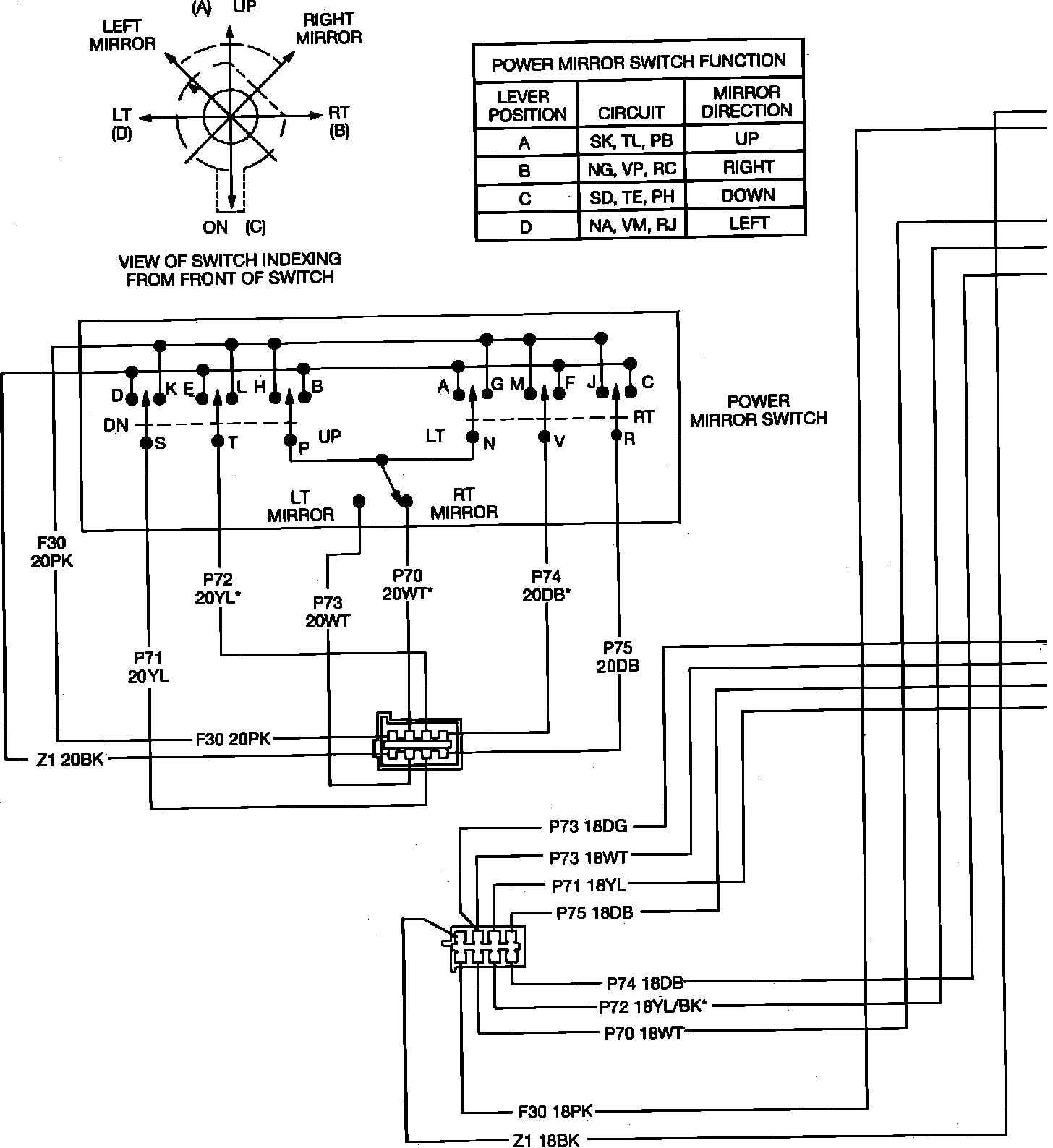

Power Mirror Wiring Circuit
>>
Less Memory
Less Memory

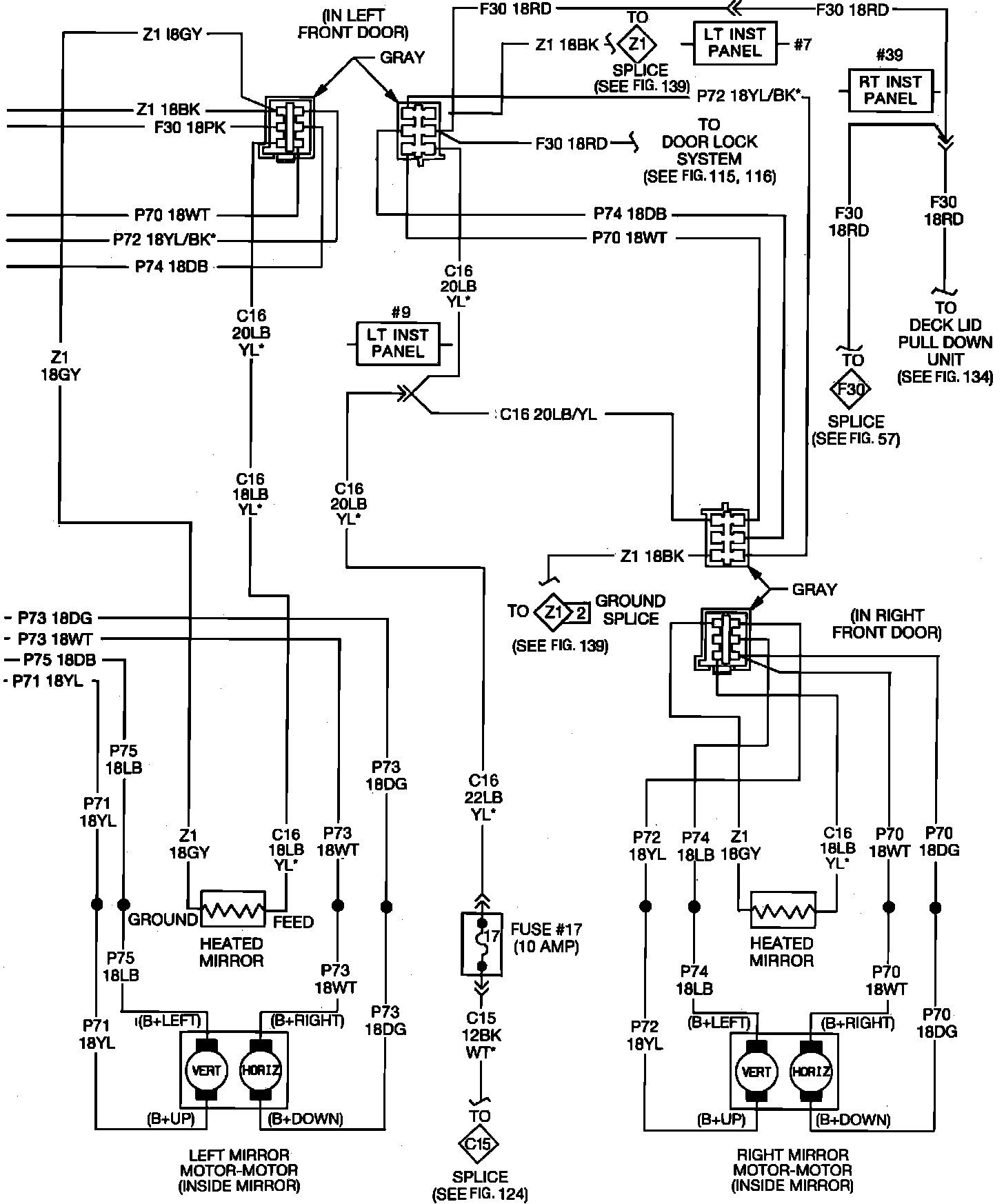

Power Heated Mirrors:
Power Heated Mirrors:
