New Yorker V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
Power Mirror Wiring Circuit
>>
With Memory
With Memory

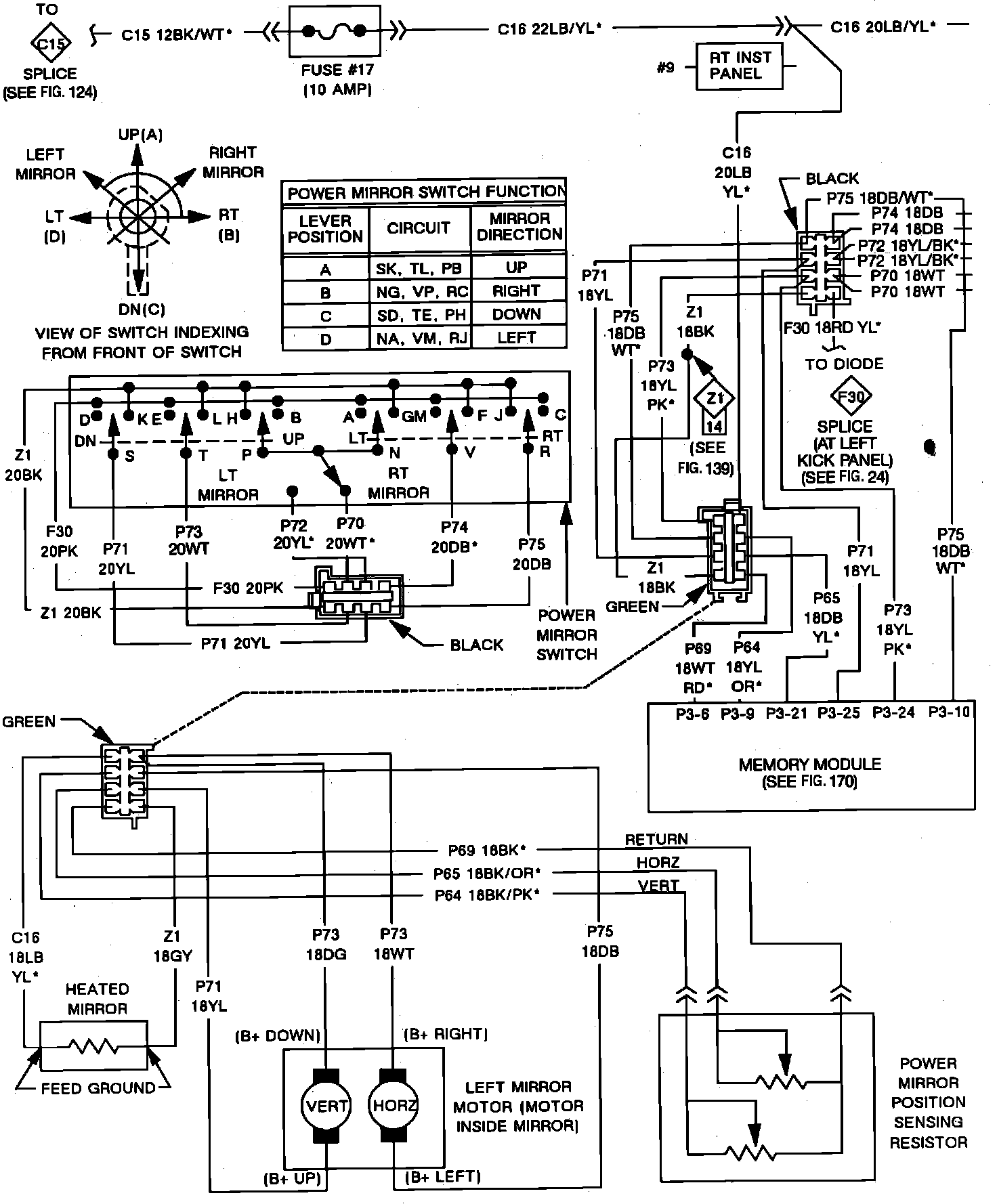

Left Heated Memory Power Mirror System:

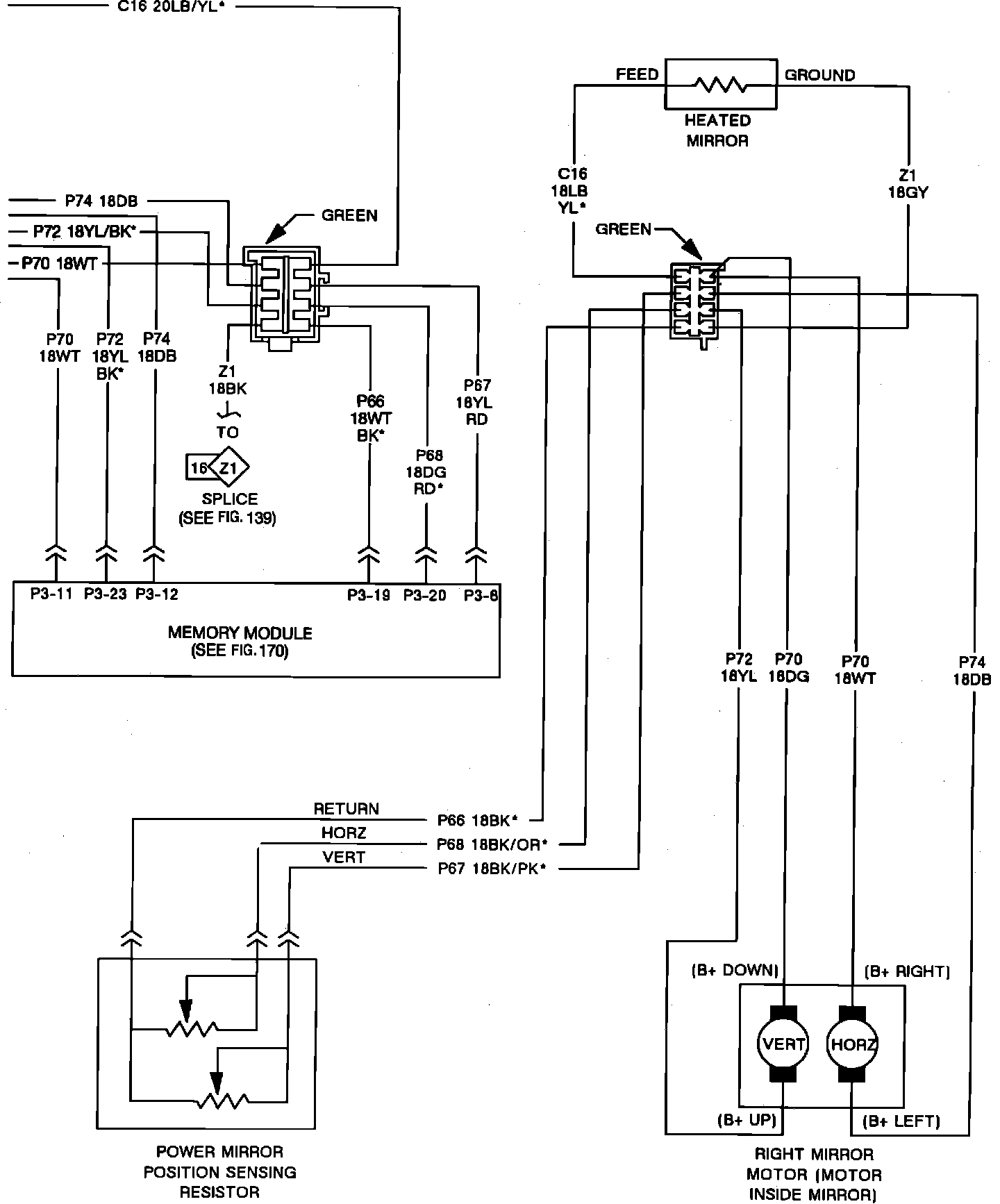

Right Heated Memory Power Mirror System:
