Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Wiring Diagrams >> With Electronic Instrument Cluster

With Electronic Instrument Cluster

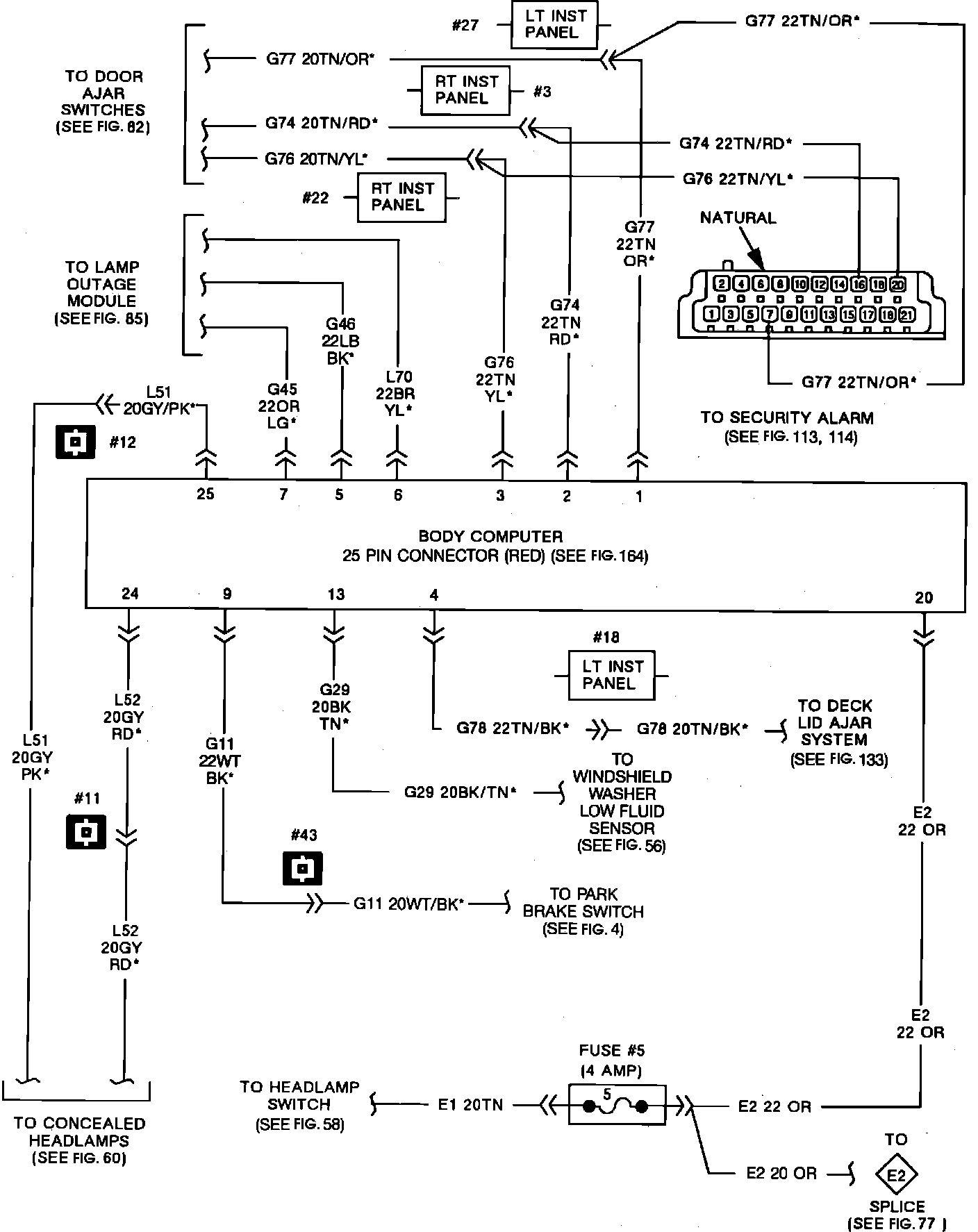

BCM (Electronic Cluster) Part 1 Of 4:



BCM (Electronic Cluster) Part 2 Of 4:



BCM (Electronic Cluster) Part 3 Of 4:



BCM (Electronic Cluster) Part 4 Of 4:
