Chrysler
>>
1991
>>
New Yorker V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
Wiper and Washer Systems

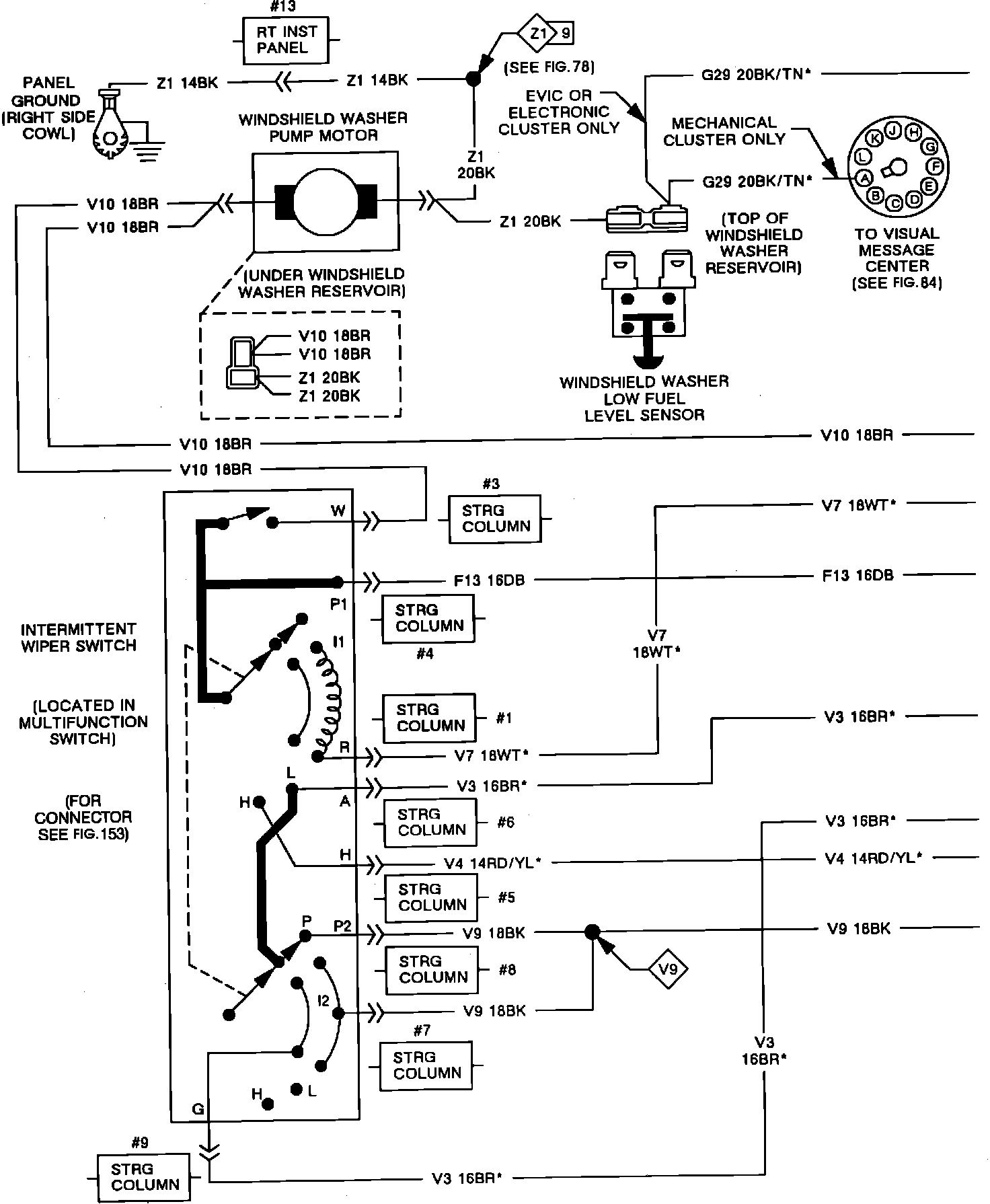

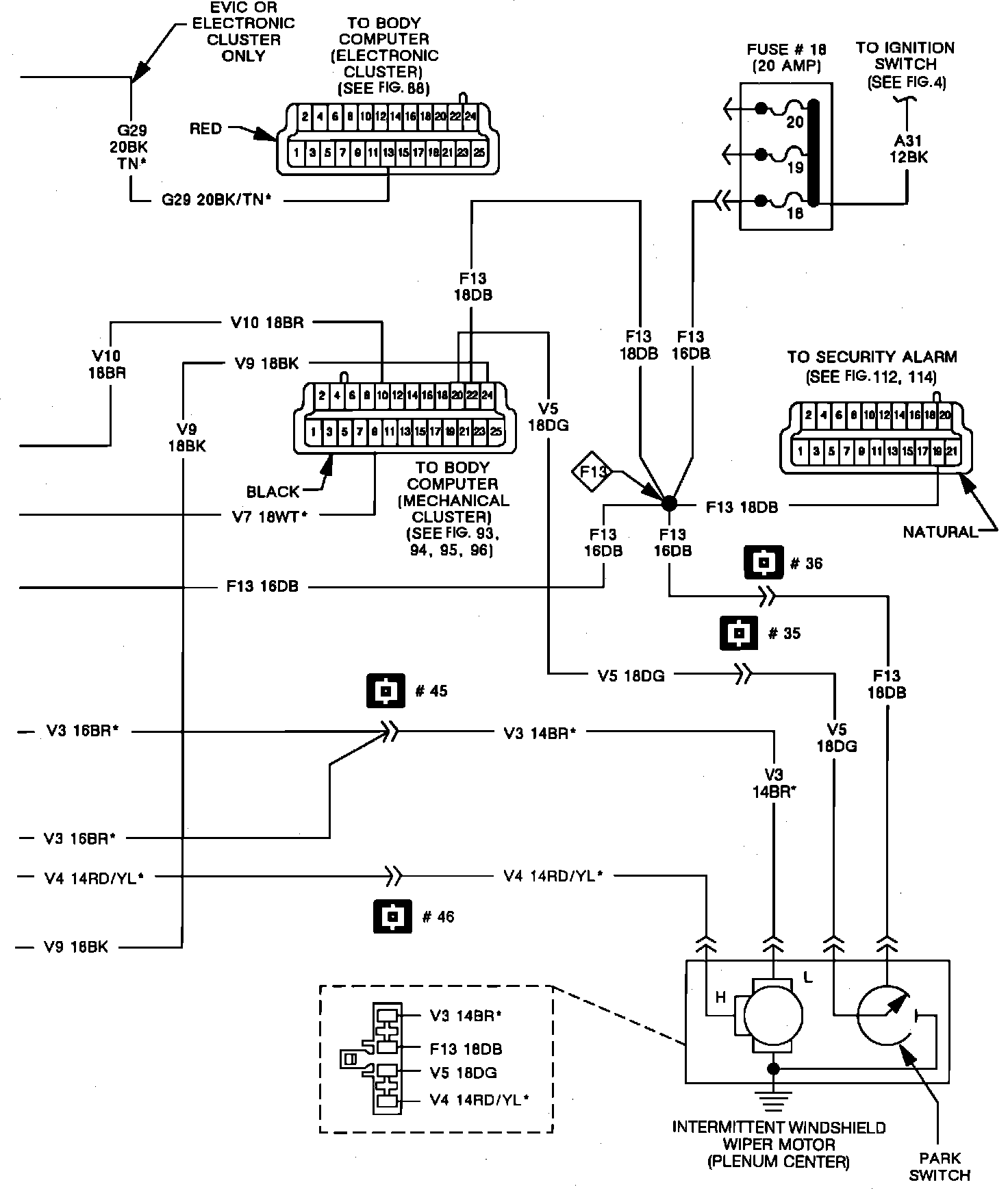

Windshield Wiper/washer:
Windshield Wiper/washer:
