Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> NS-11A Repairing "Auto Shutdown Relay Control Circuit" Fault >> Part 1 of 2

Part 1 of 2

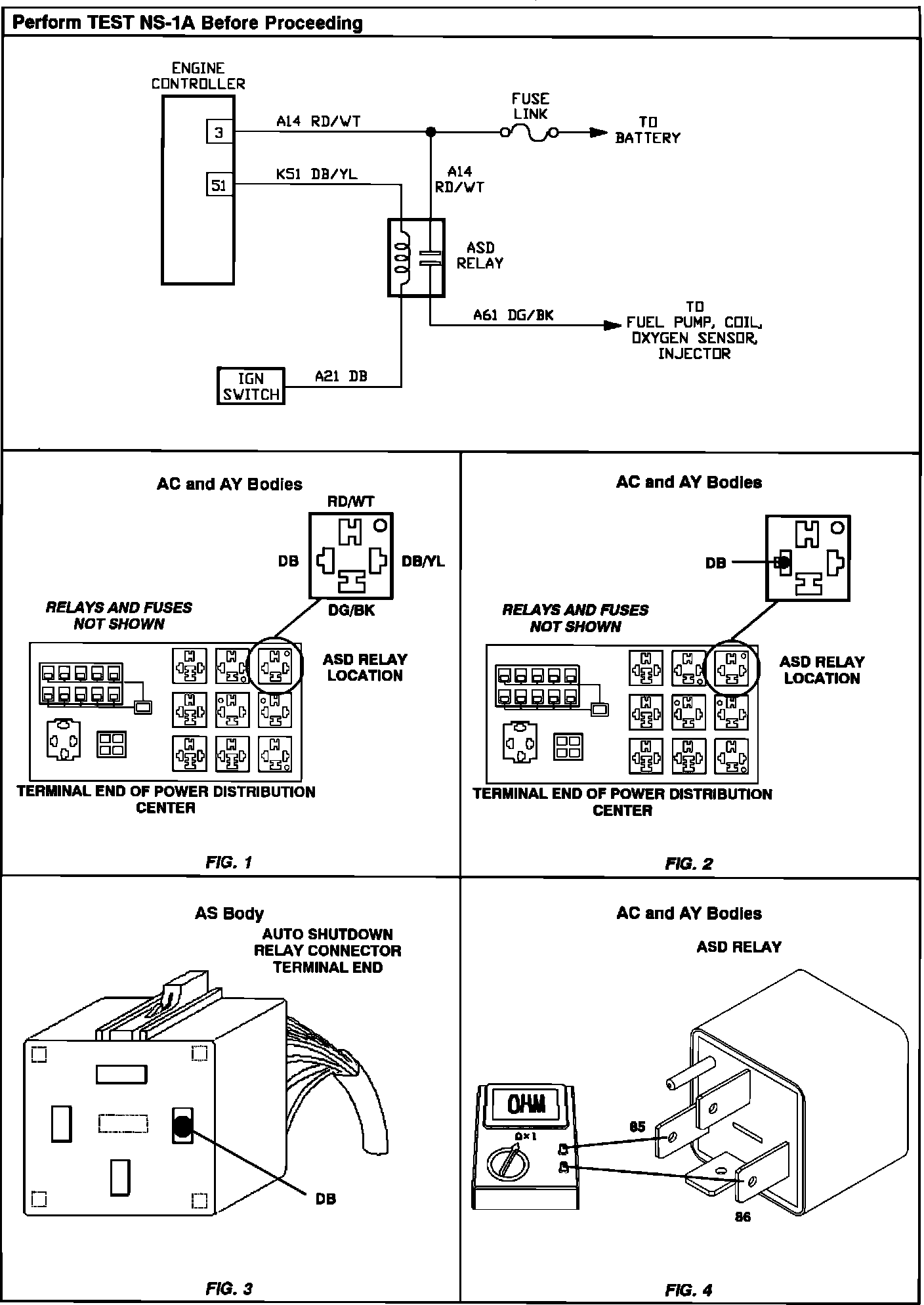

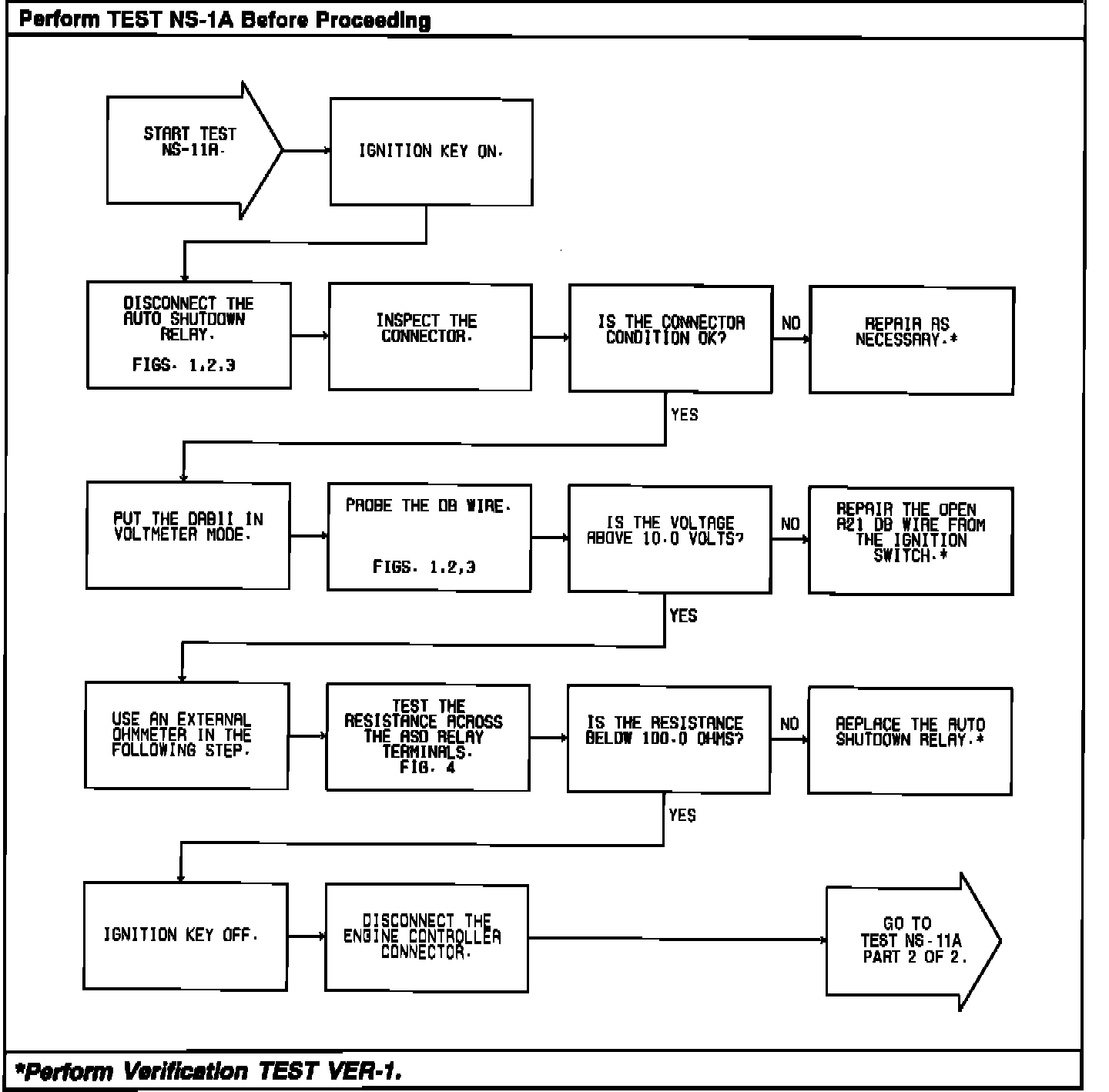

Test NS-11A - "Auto Shutdown Relay Control Circuit":



Test NS-11A - "Auto Shutdown Relay Control Circuit":
