Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> NS-7A Checking DIS Camshaft Sensor >> Part 2 of 2

Part 2 of 2

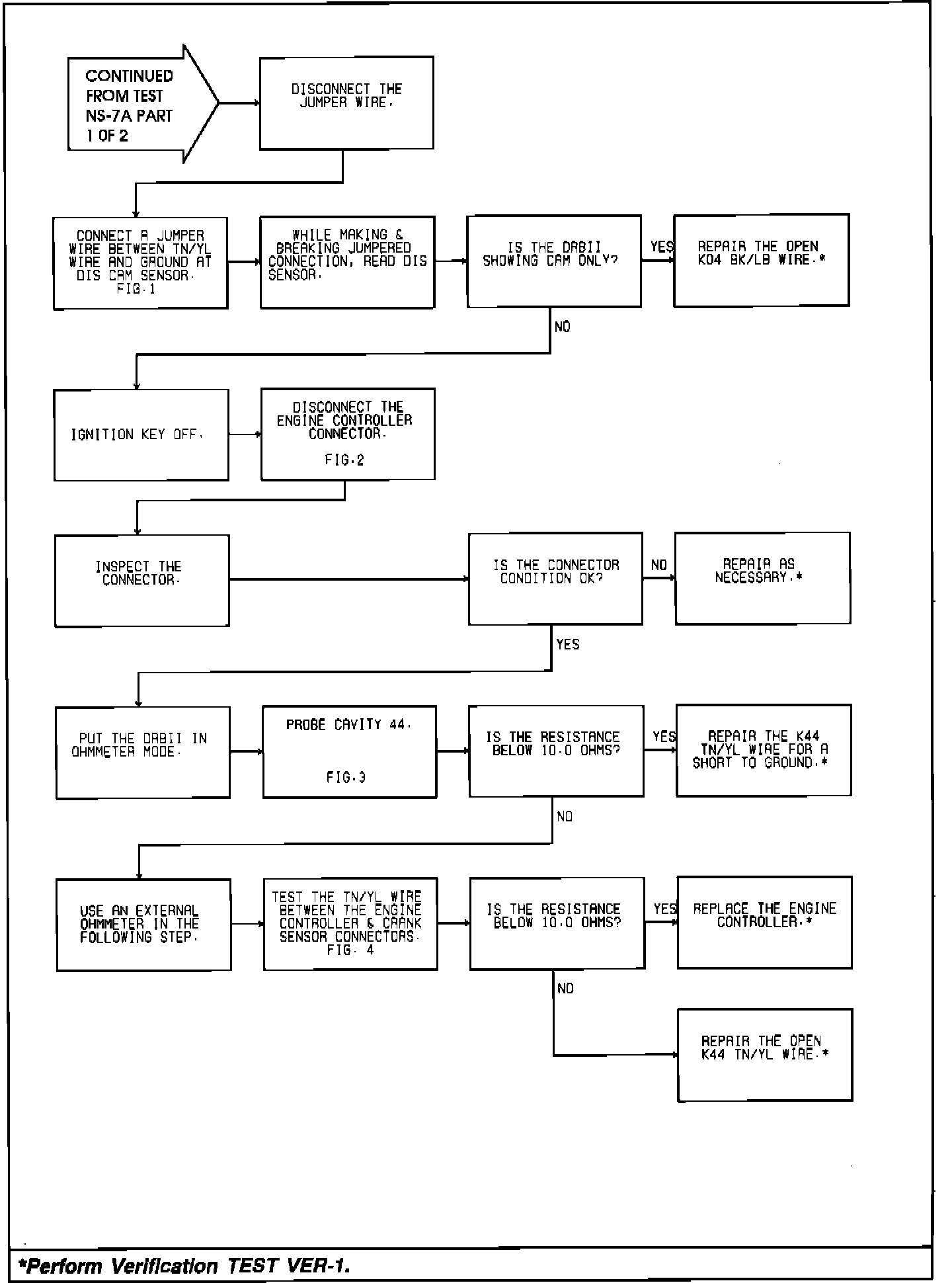

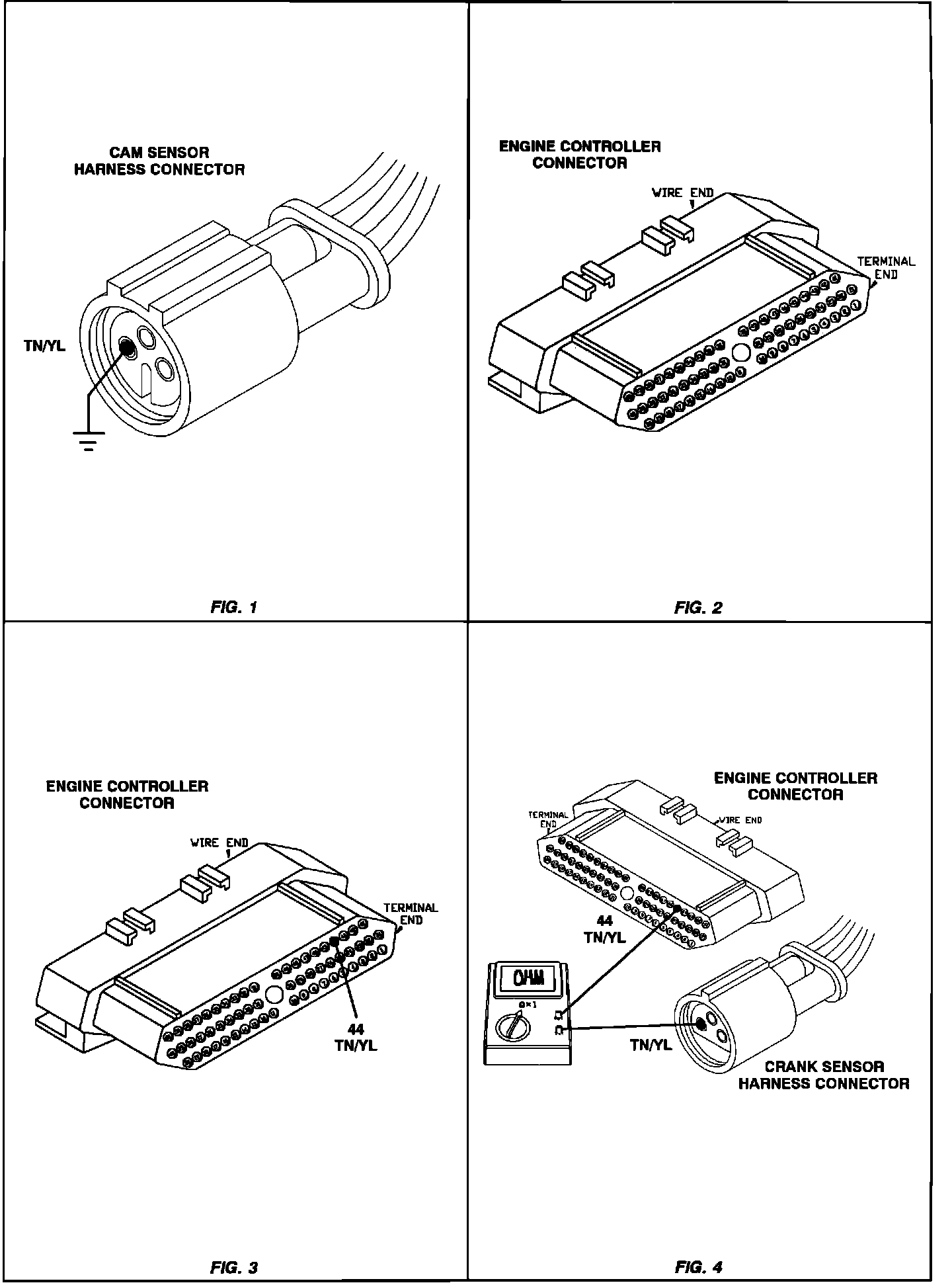

Test NS-7A - Checking DIS Camshaft Sensor:



Checking DIS Camshaft Sensor:
