Part 2 of 2

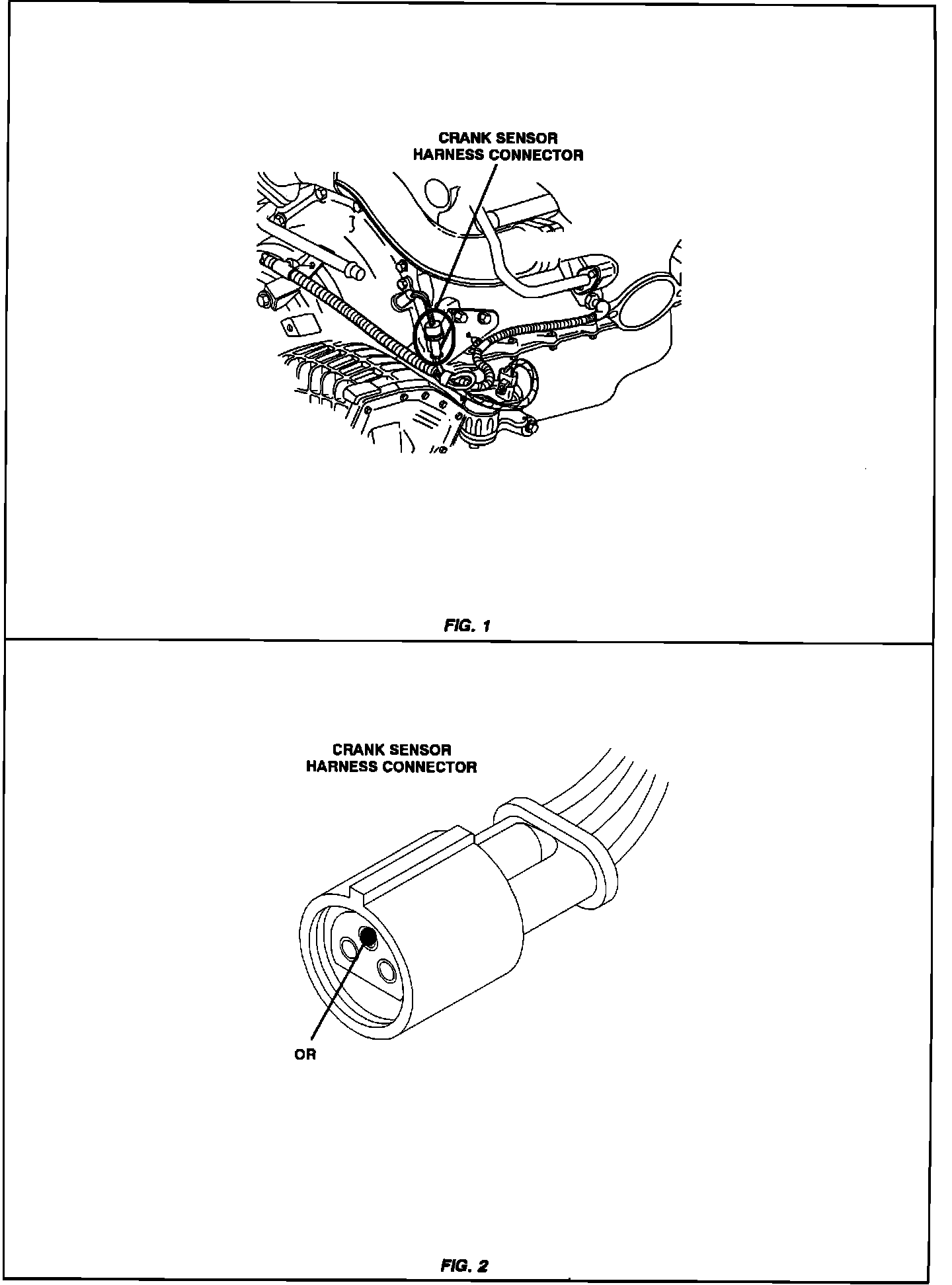

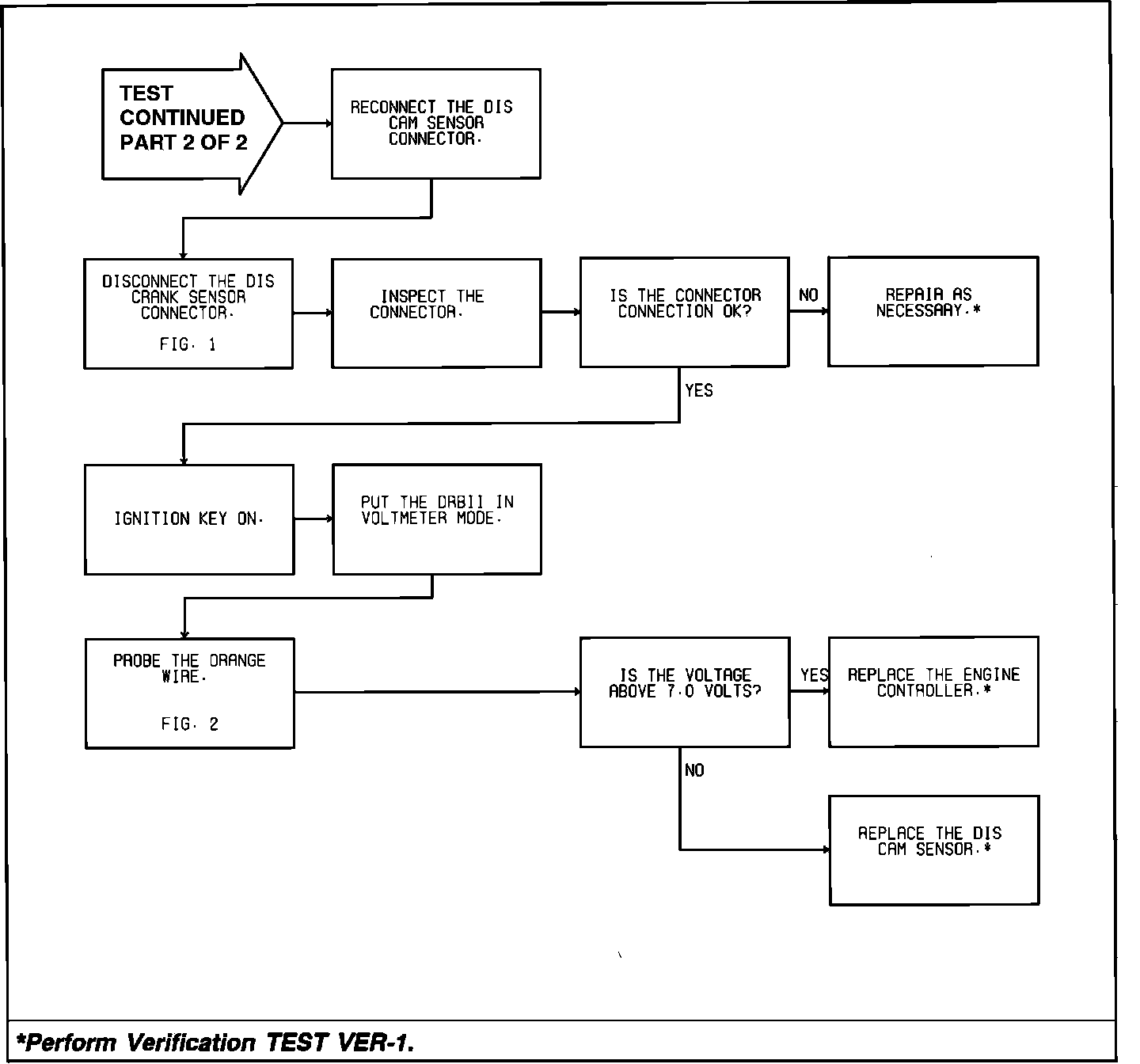

Checking DIS Camshaft And Crankshaft Sensor Circuit:



Checking DIS Camshaft And Crankshaft Sensor Circuit:
