Electrical Diagrams

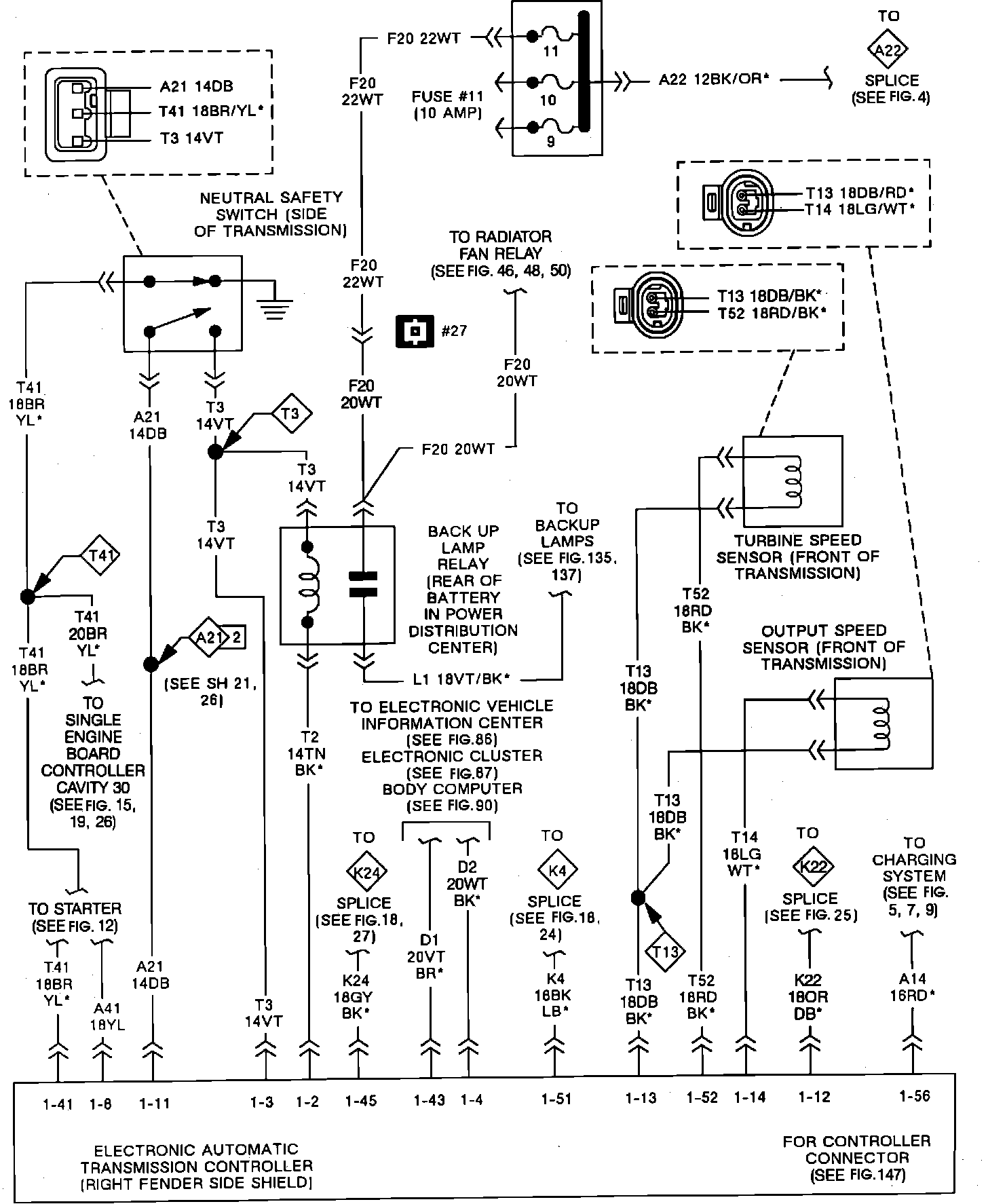

Electronic Automatic Transmission System:



Electronic Automatic Transmission System:
