Power Mirror Control Module
Power Mirror Control Module

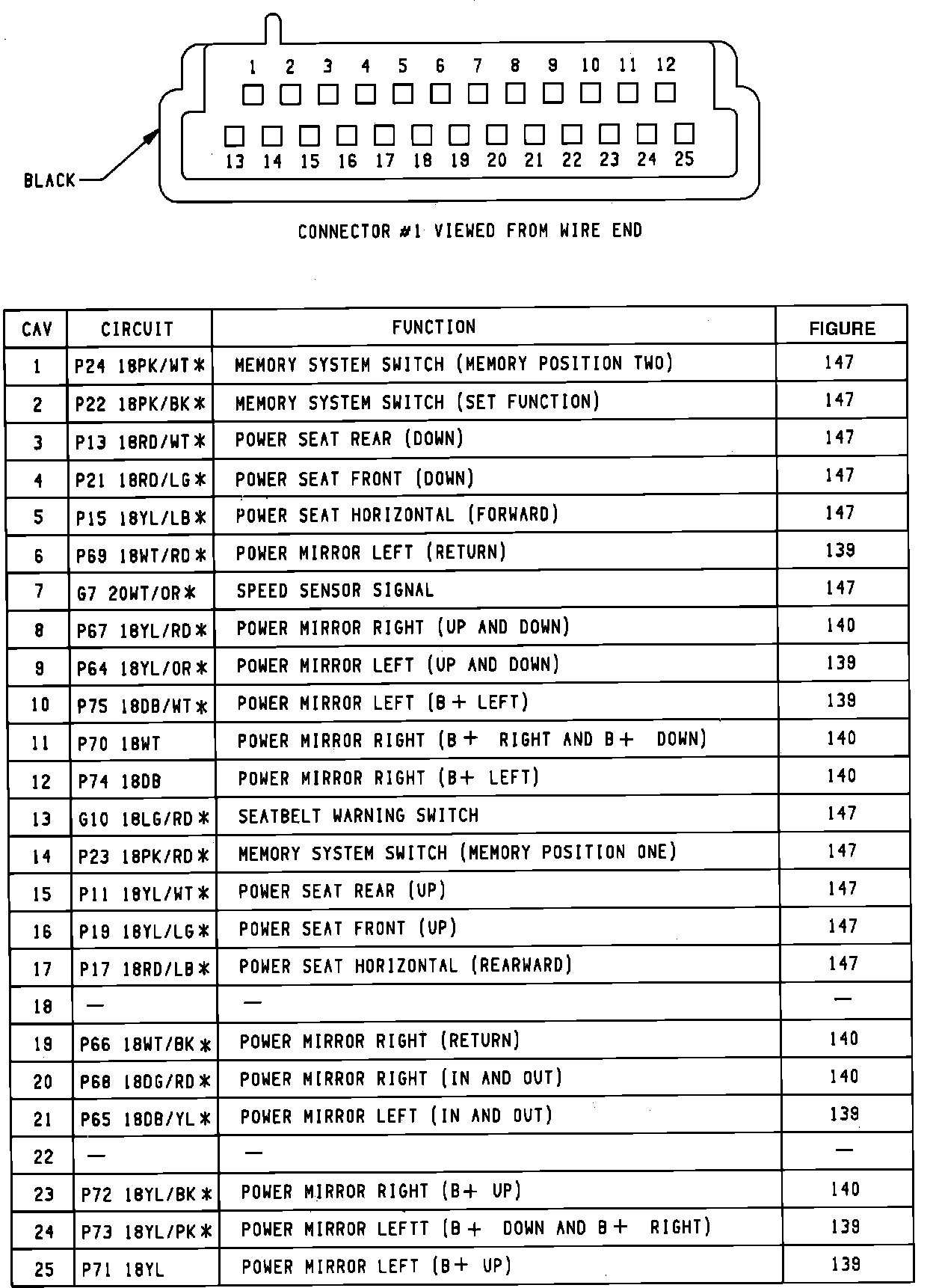

Memory Power Seat & Mirror Connector:

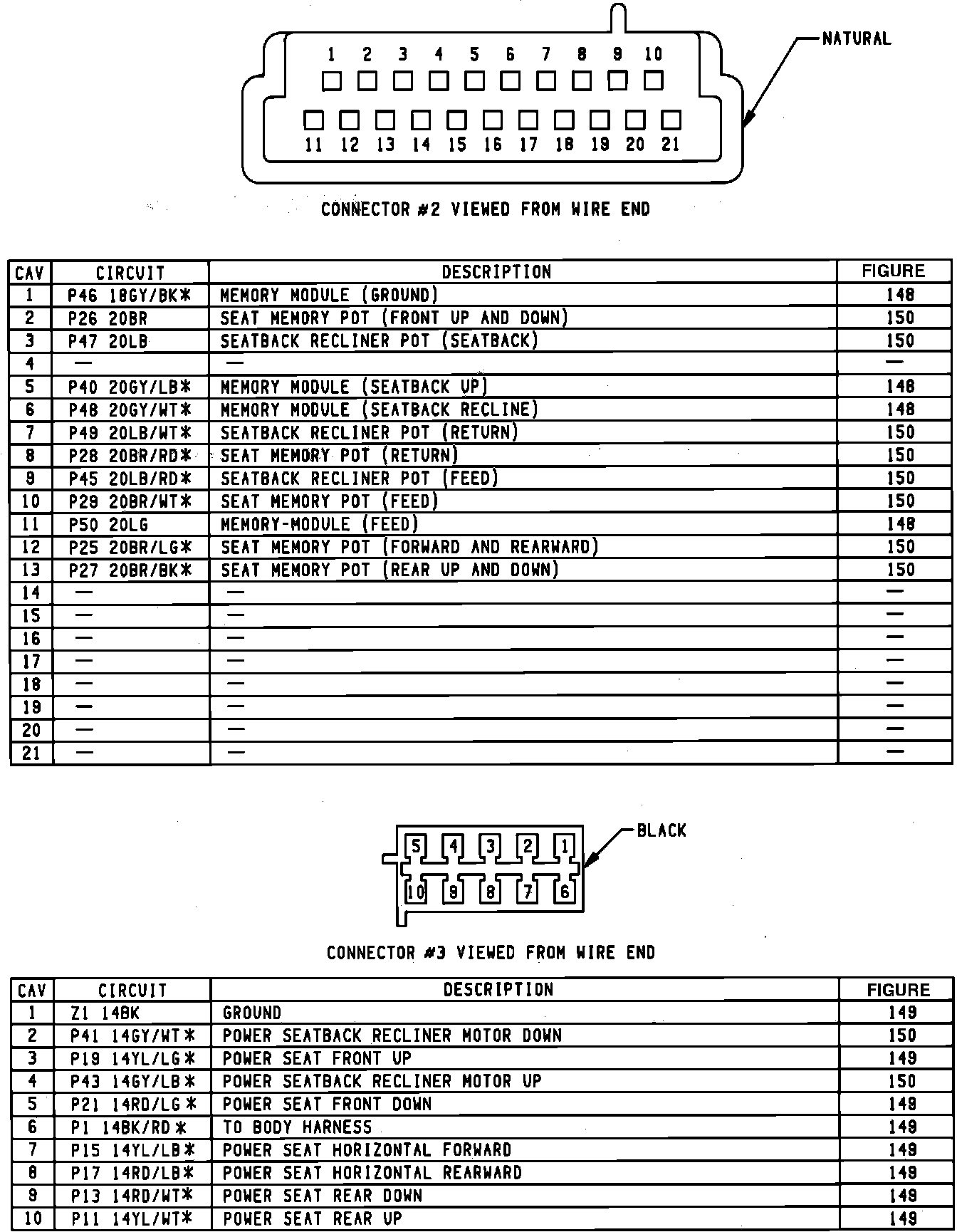

Memory Power Seat System Connectors:
