Cargo Lamp

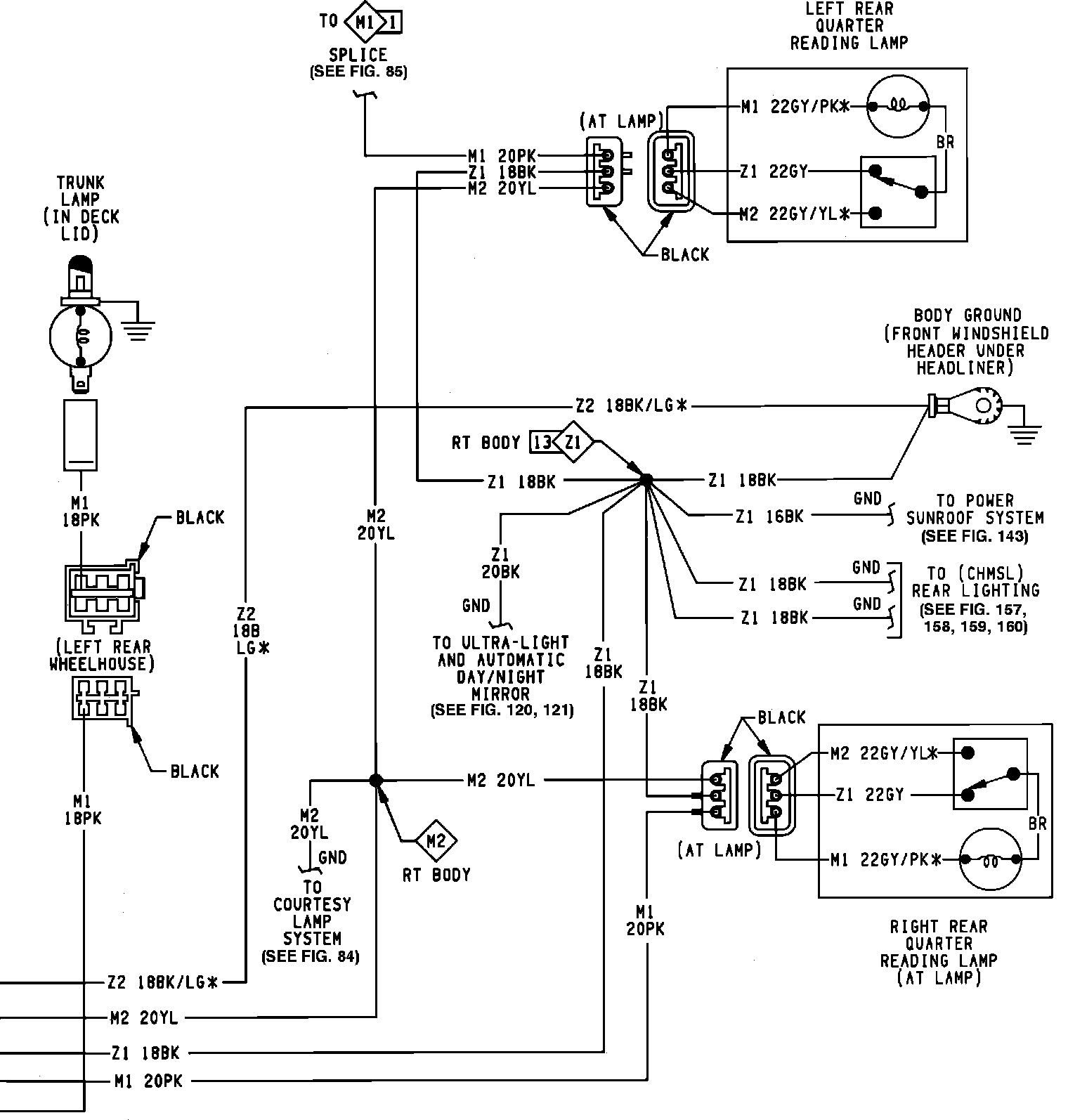

Courtesy Lamp System -- Part 1:

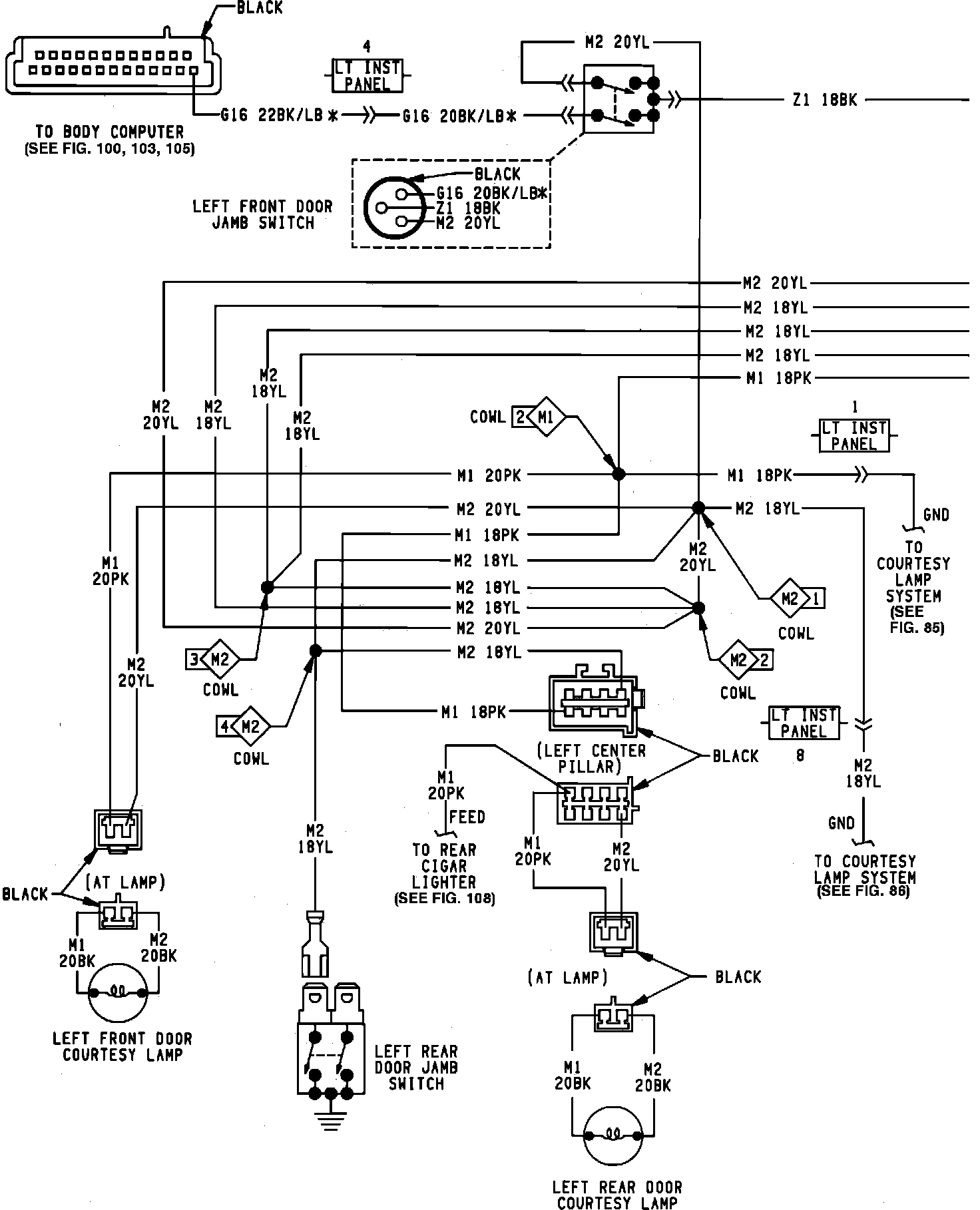

Courtesy Lamp System -- Part 2:

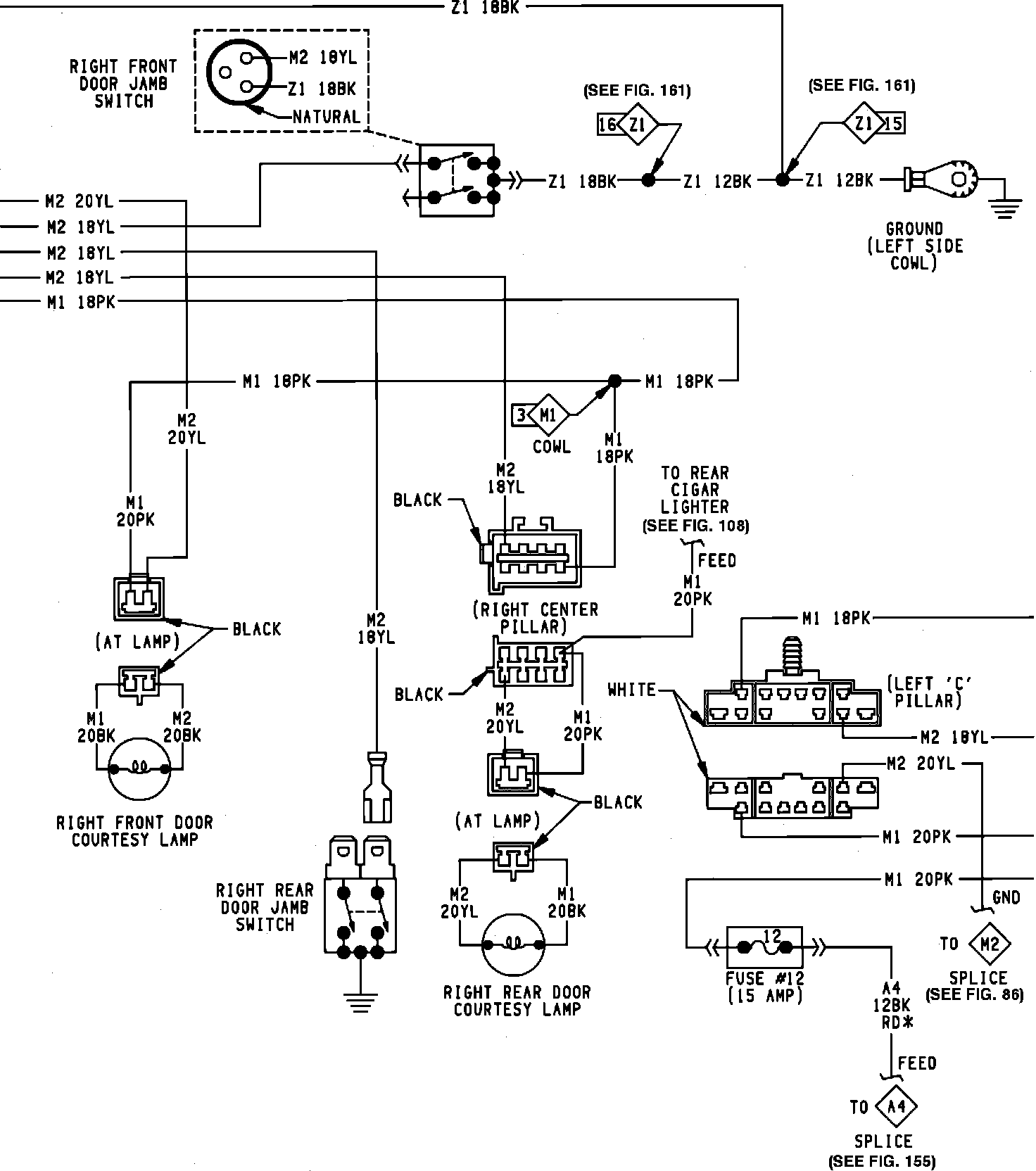

Courtesy Lamp System -- Part 3:

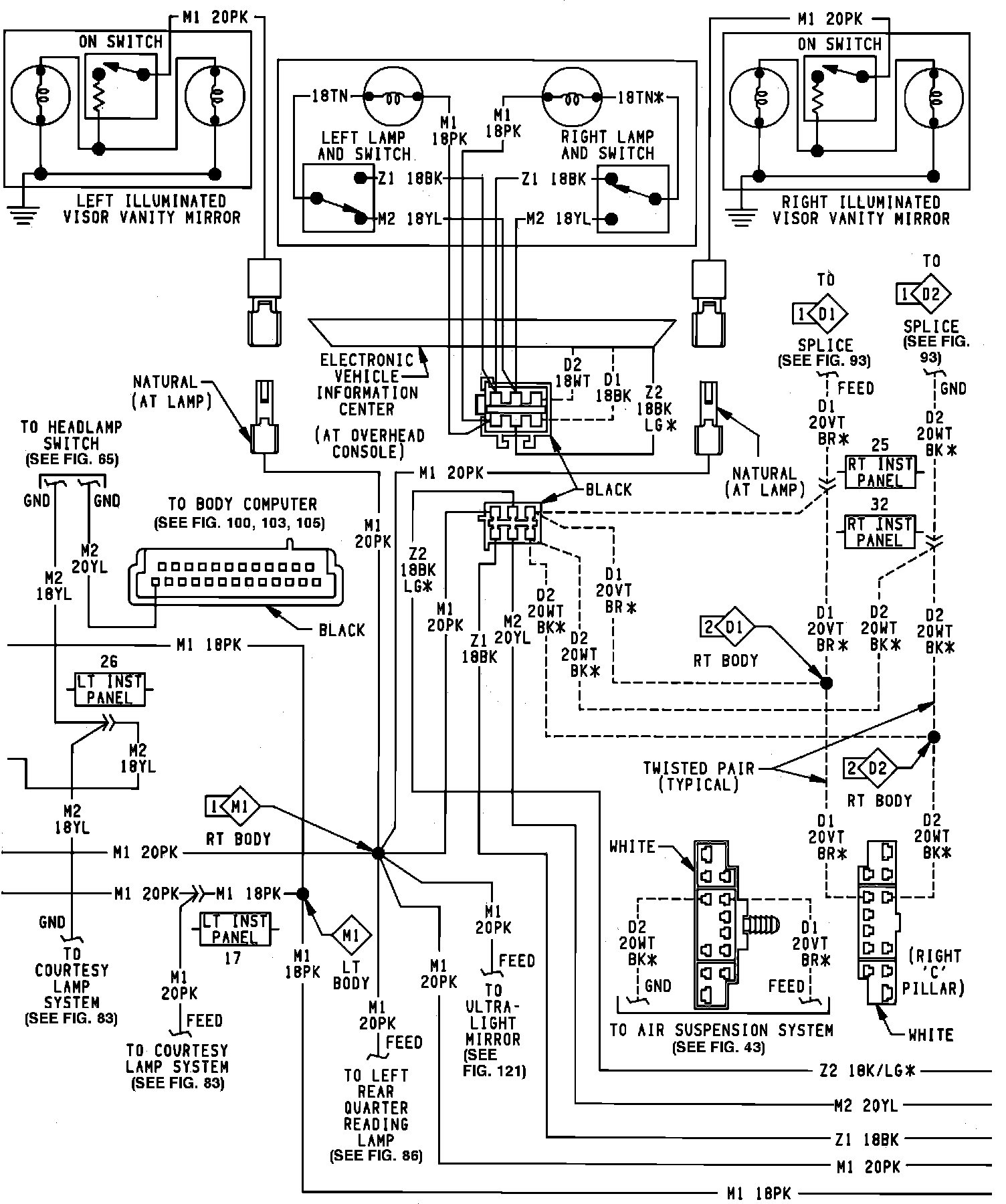

Courtesy Lamp System -- Part 4:
