Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
1992
>>
Imperial V6-231 3.8L VIN L FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Turn Signals
Turn Signals

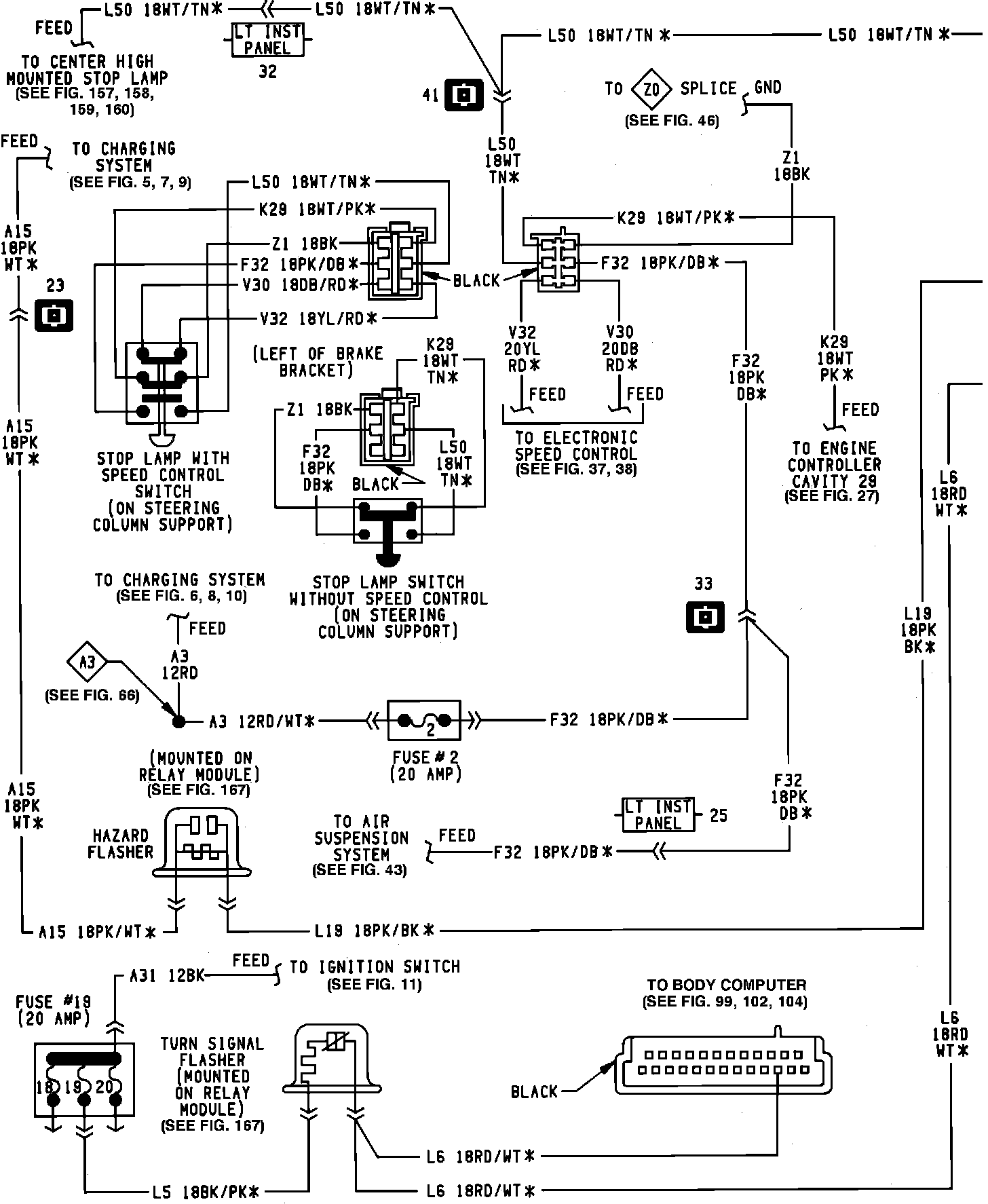

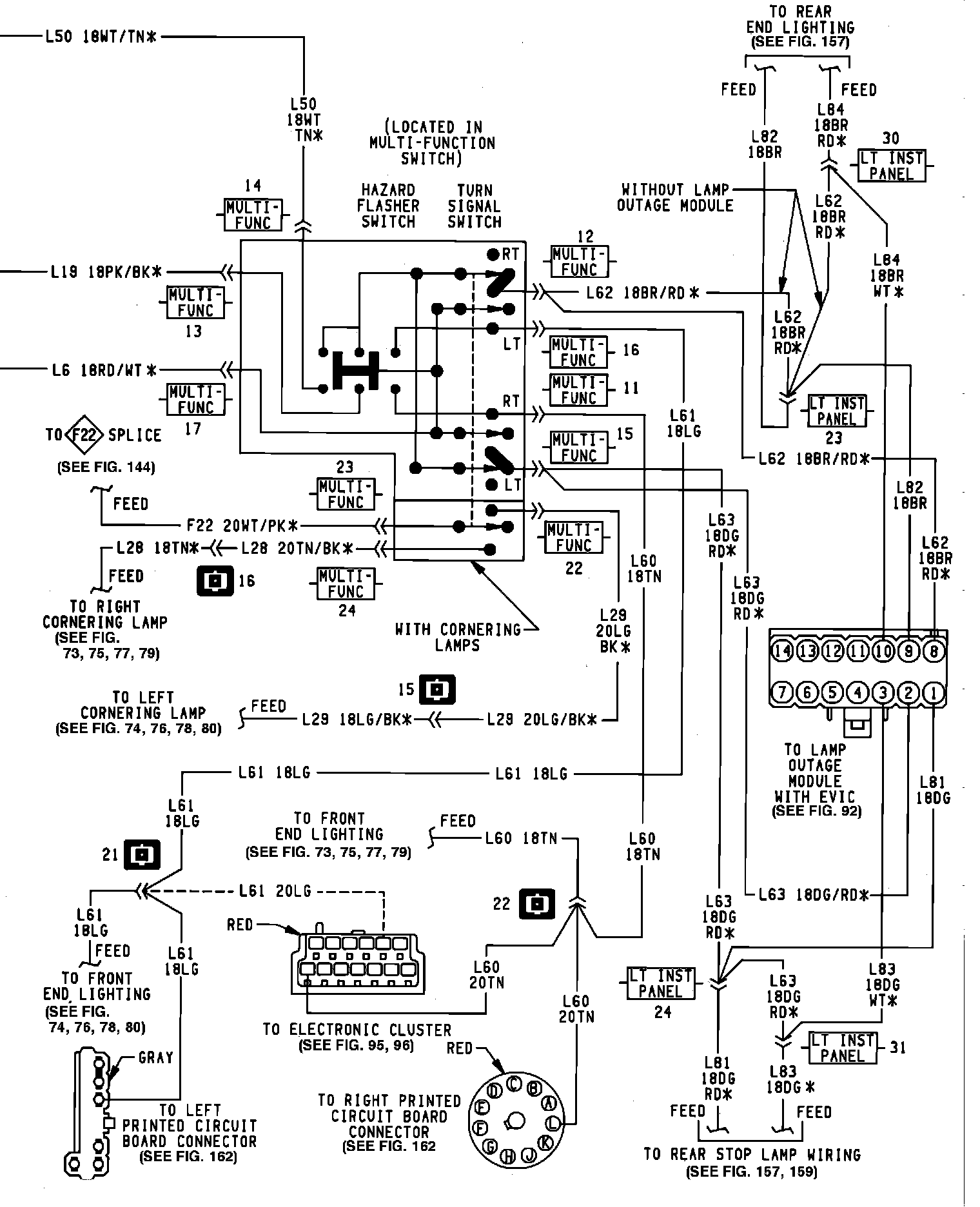

Turn/Stop And Hazard Flasher Systems:
Turn/Stop And Hazard Flasher Systems:
