Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
1992
>>
Imperial V6-231 3.8L VIN L FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
Trunk / Liftgate

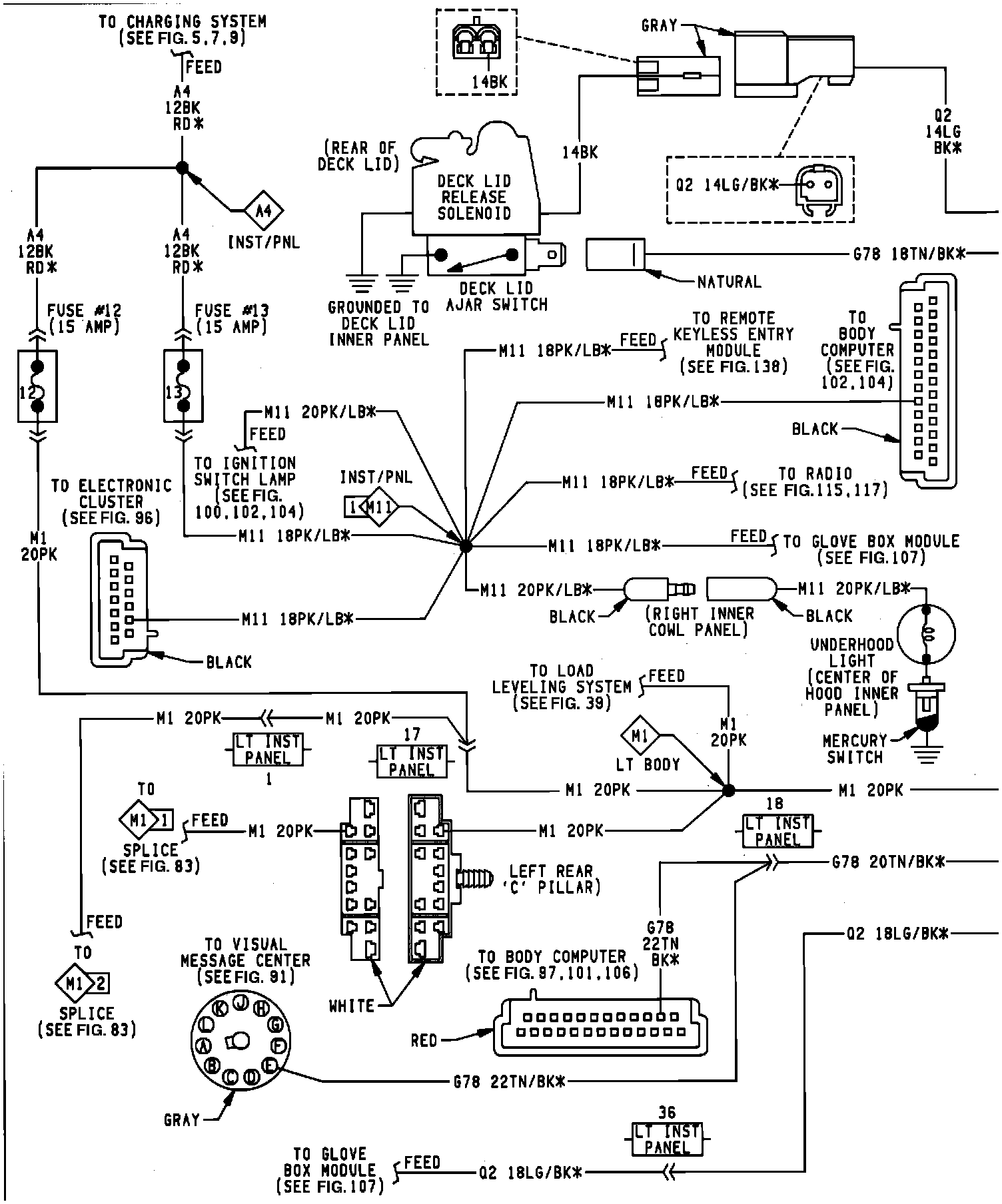

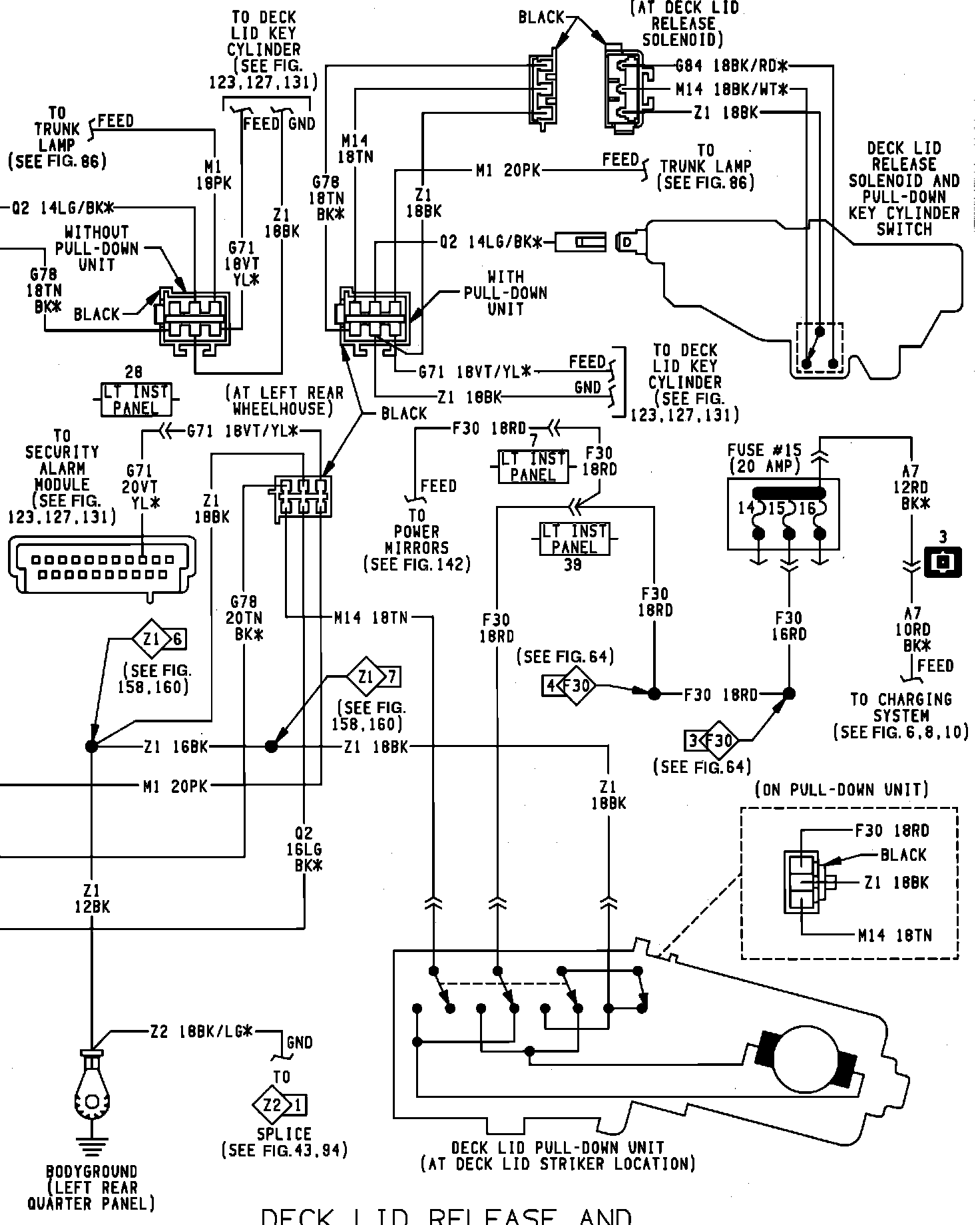

Deck Lid Release And Deck Lid Pull-Down System:
Deck Lid Release And Deck Lid Pull-Down System:
