Home
>>
Chrysler
>>
1992
>>
Imperial V6-231 3.8L VIN L FI
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

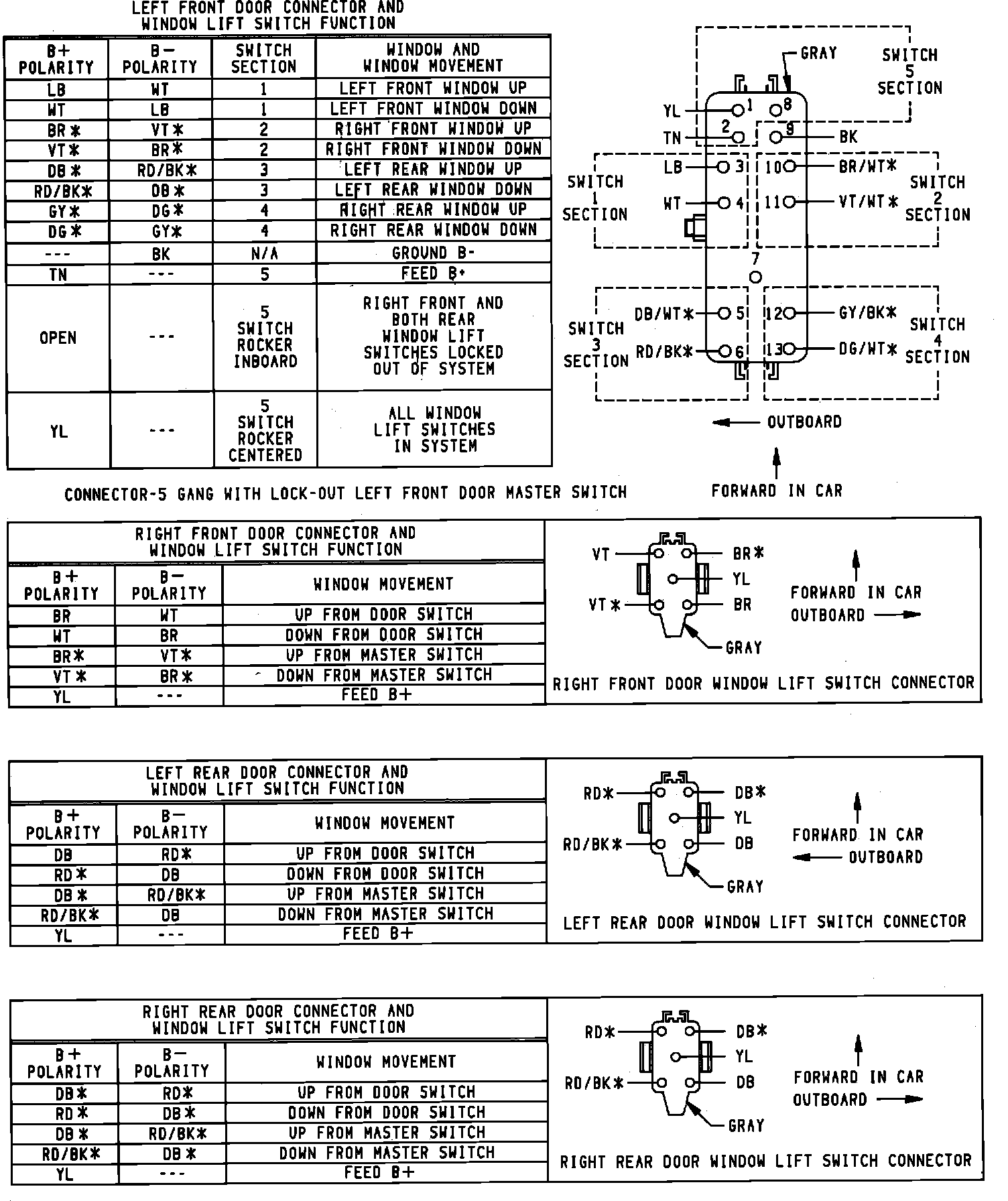

Power Window Connector And Switch Function:

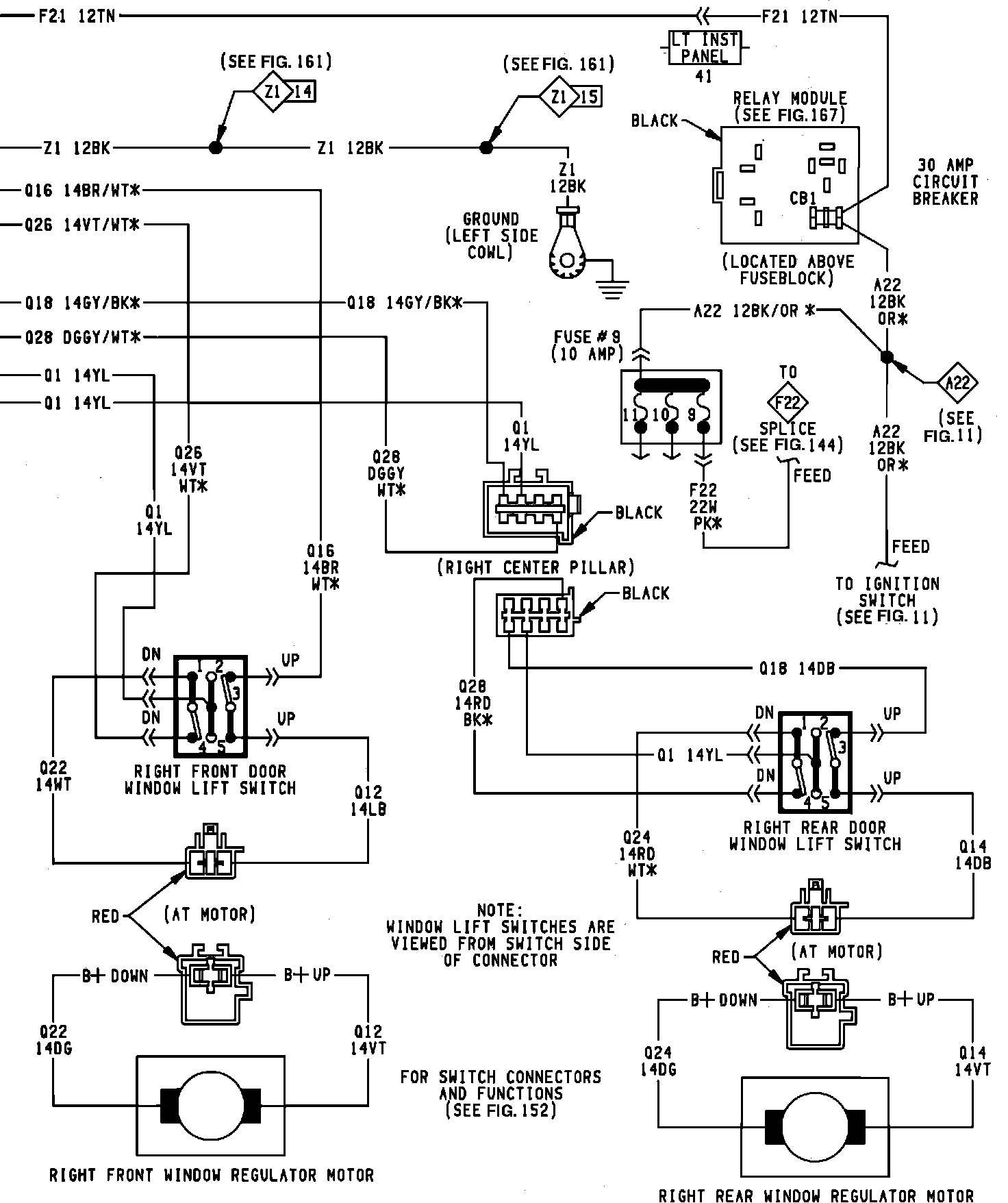

Power Window System:

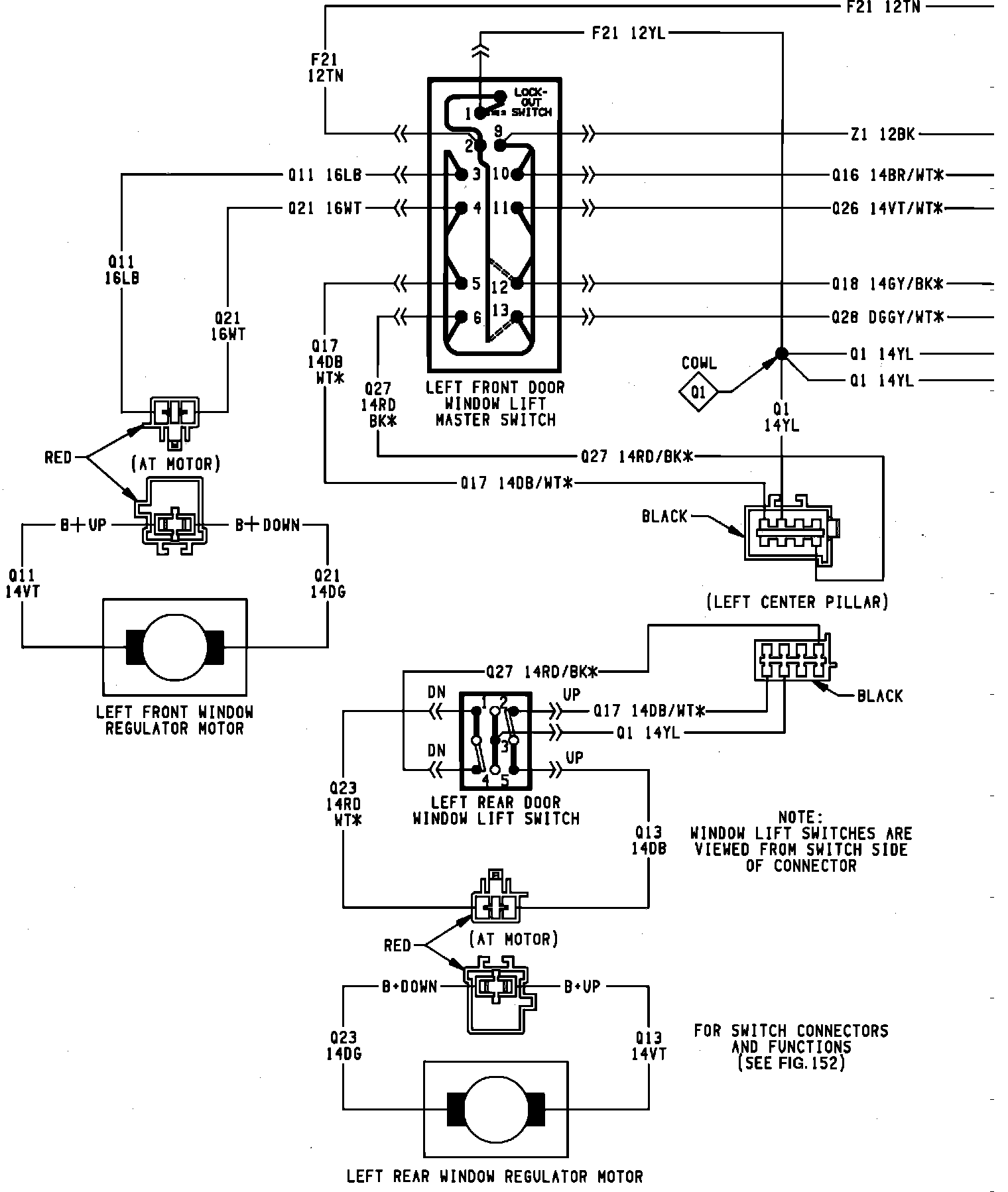

Power Window System:
