Red Connector

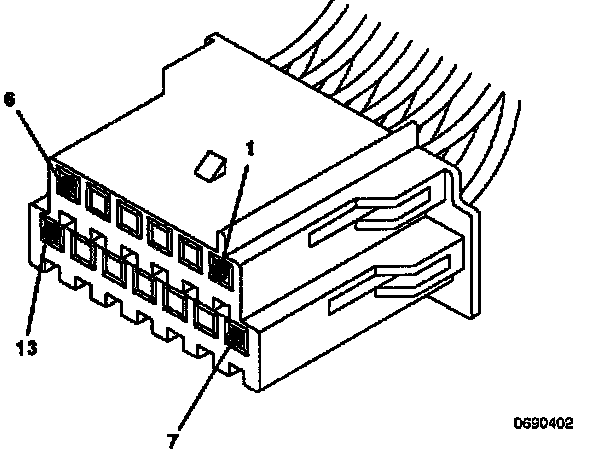

CONNECTOR VIEWED FROM TERMINAL END

CAV CIRCUIT FUNCTION
1 E02 Panel Lamp Level
2 Spare
3 Spare
4 Spare
5 G09 GY/BK Park Brake Warn. Lamp
6 Spare
7 Z02 BK/LG Electronic Ground
8 Spare
9 Spare
10 Spare
11 Spare
12 GO5 Ign. Feed (Run/Start)
13 MO1 PK Battery
