Engine Control Module

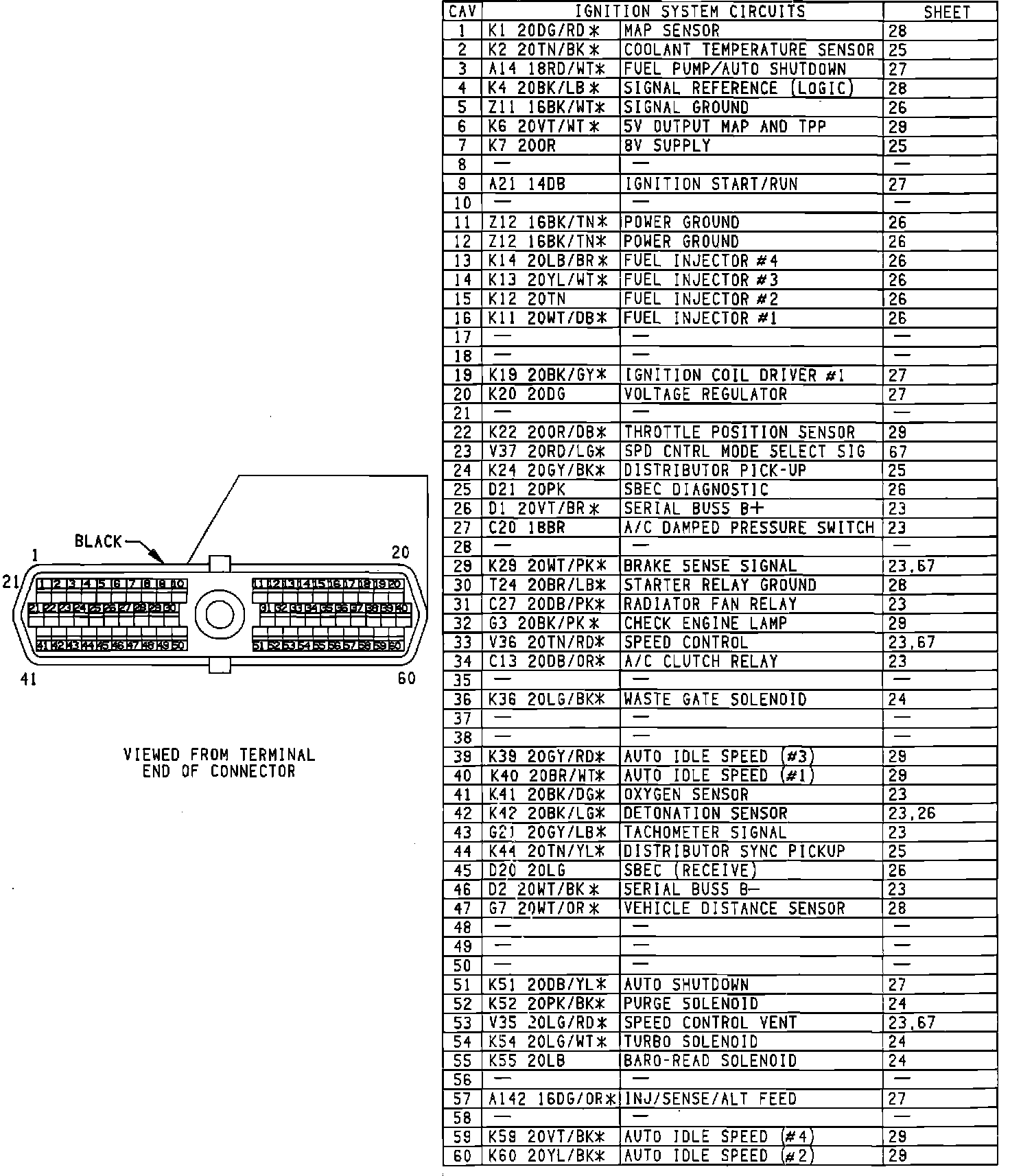

Engine Controller Connector Pin-out:



Turbocharged Electronic Fuel Injection Single Board Engine Controller:
