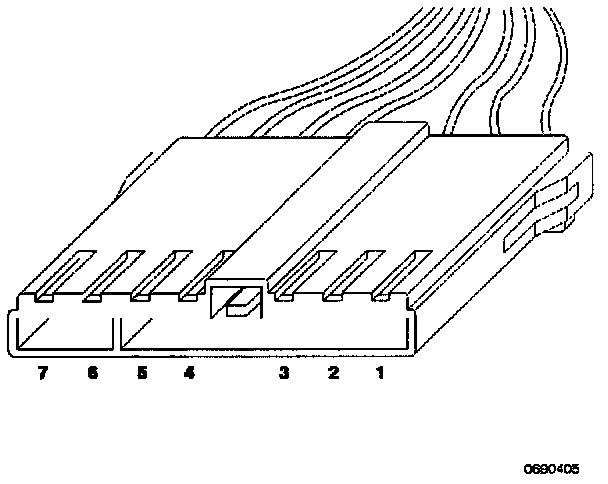

EVIC or Traveler 7-Way Connector

CAV CIRCUIT FUNCTION
1 DB/WT IGNITION (RUN)***
2 BK/LG GROUND
3 OR PANEL LAMP LEVEL
4 NOT USED
5 PK BATTERY FEED
6 VT/BR BUS(+)
7 WT/BK BUS(-)

***WITH TRAVELER MODULE ONLY
