Driver/Vehicle Information Display

Electronic Vehicle Information Center:

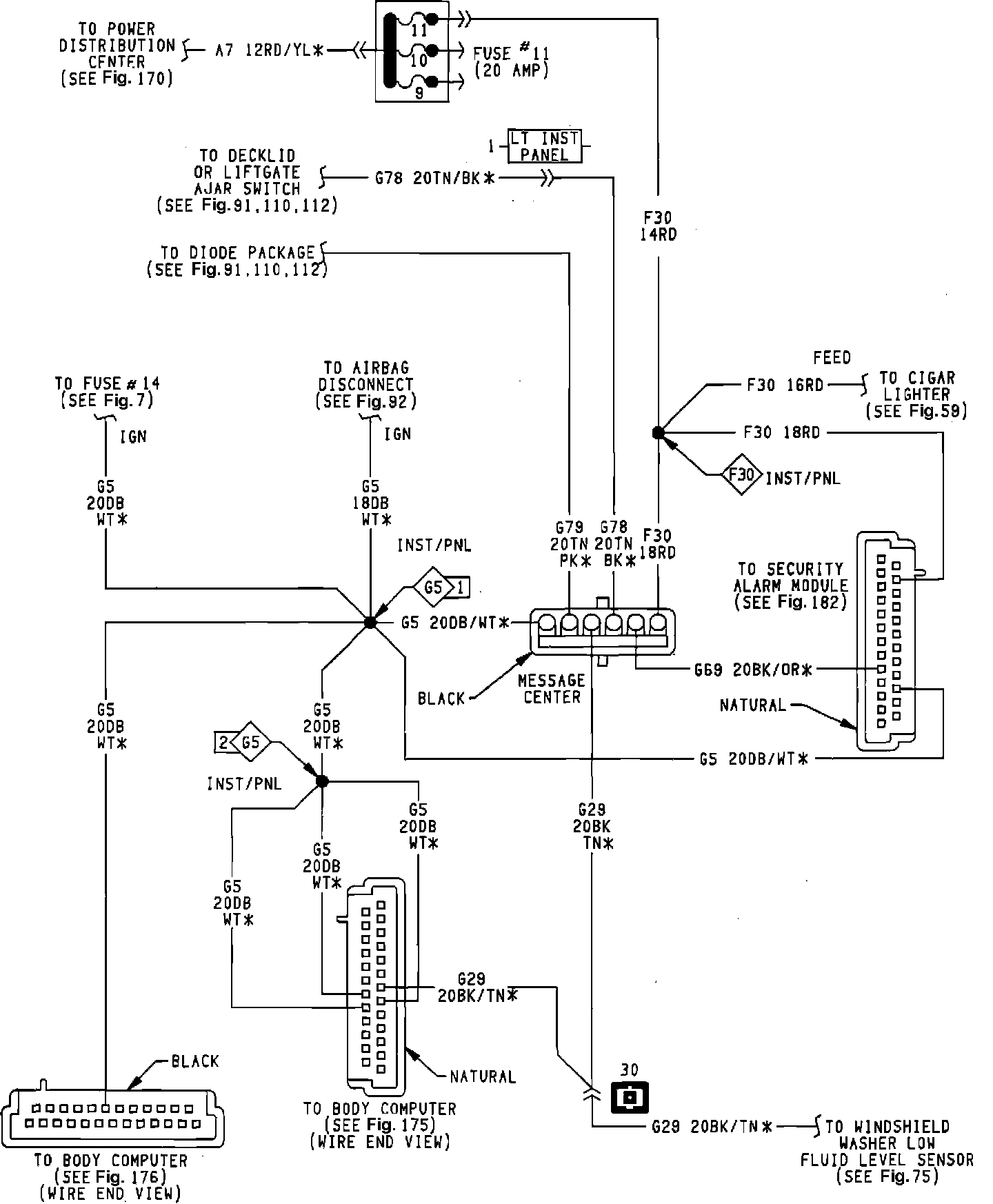

Visual Message Center Connector:
