Lebaron Coupe V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio/Stereo
>>
With Rear Speaker Amplifier
With Rear Speaker Amplifier

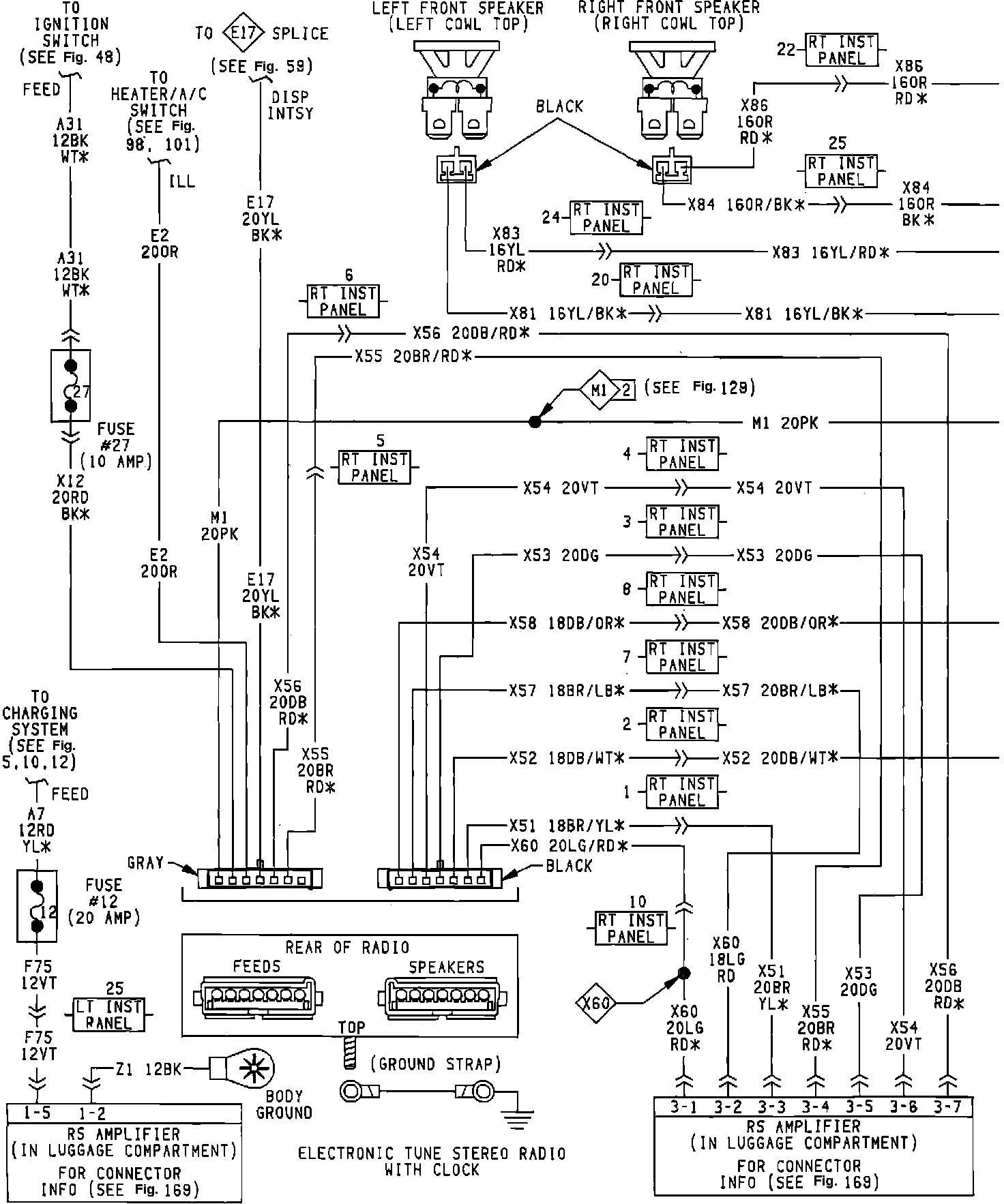

Electronically Tuned Stereo Radio With RS System:

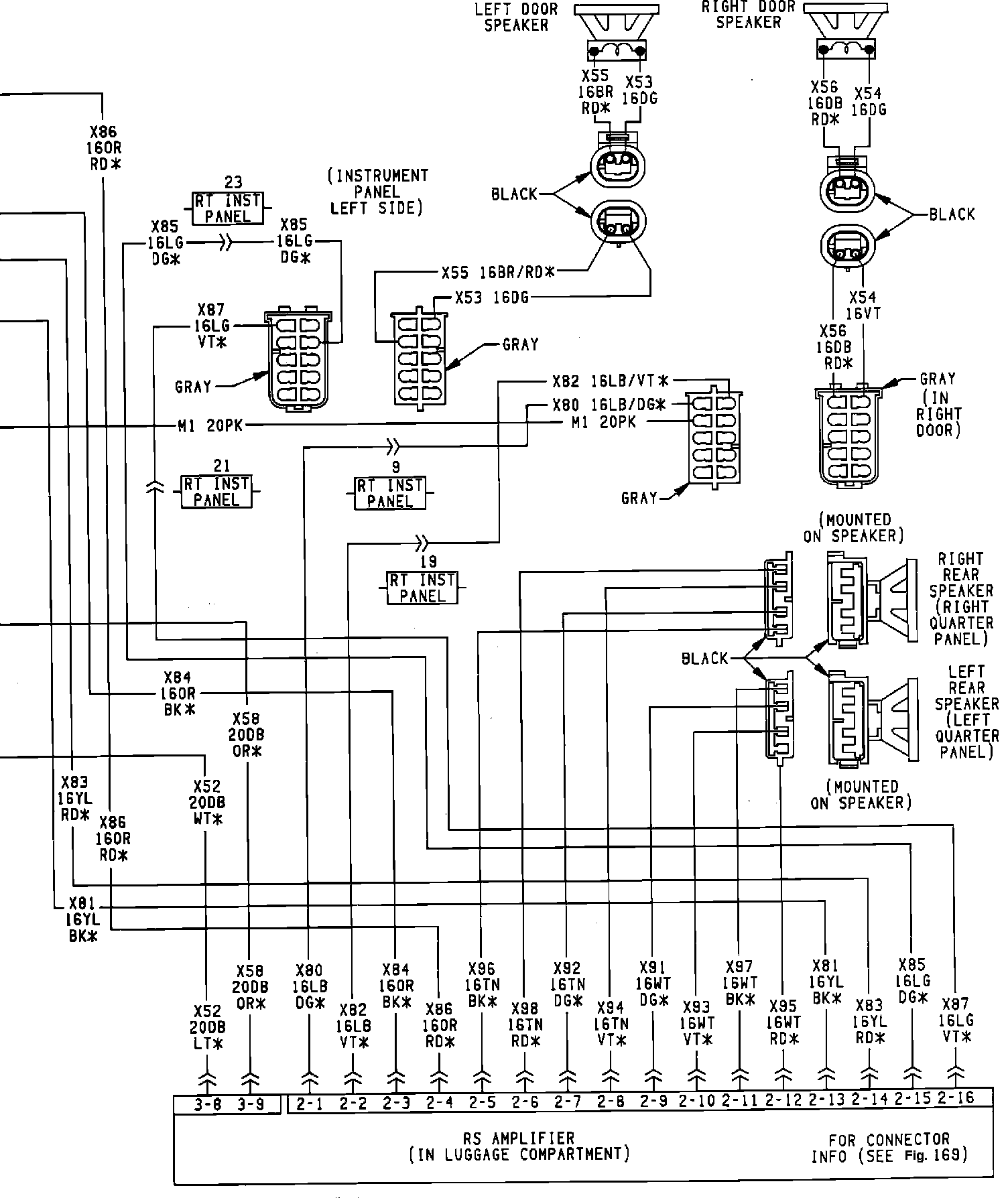

Frond Door And Rear Speakers With RS Speakers:
