Lebaron Coupe V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>

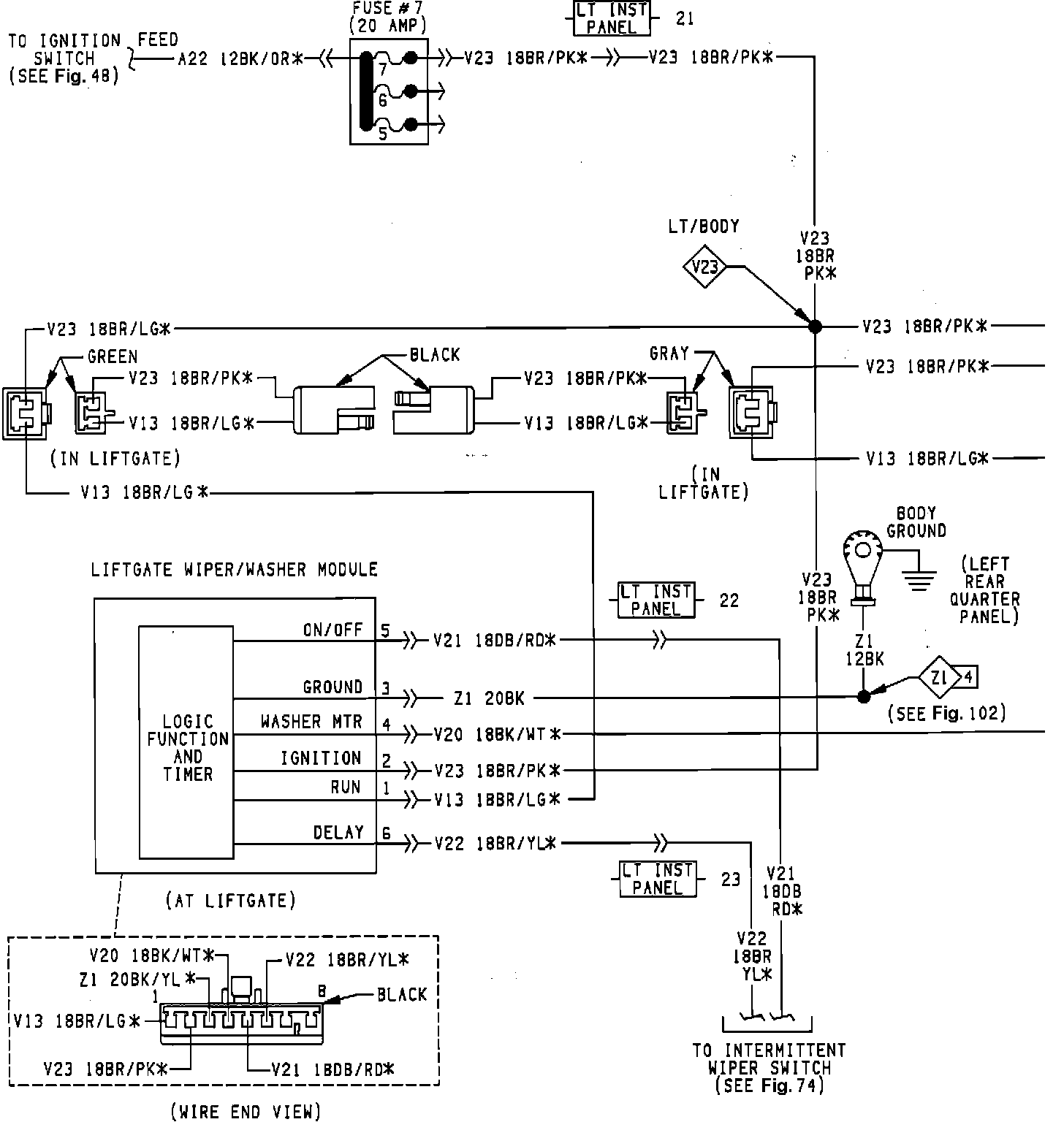

Rear Wiper/Washer System
Rear Wiper/Washer System

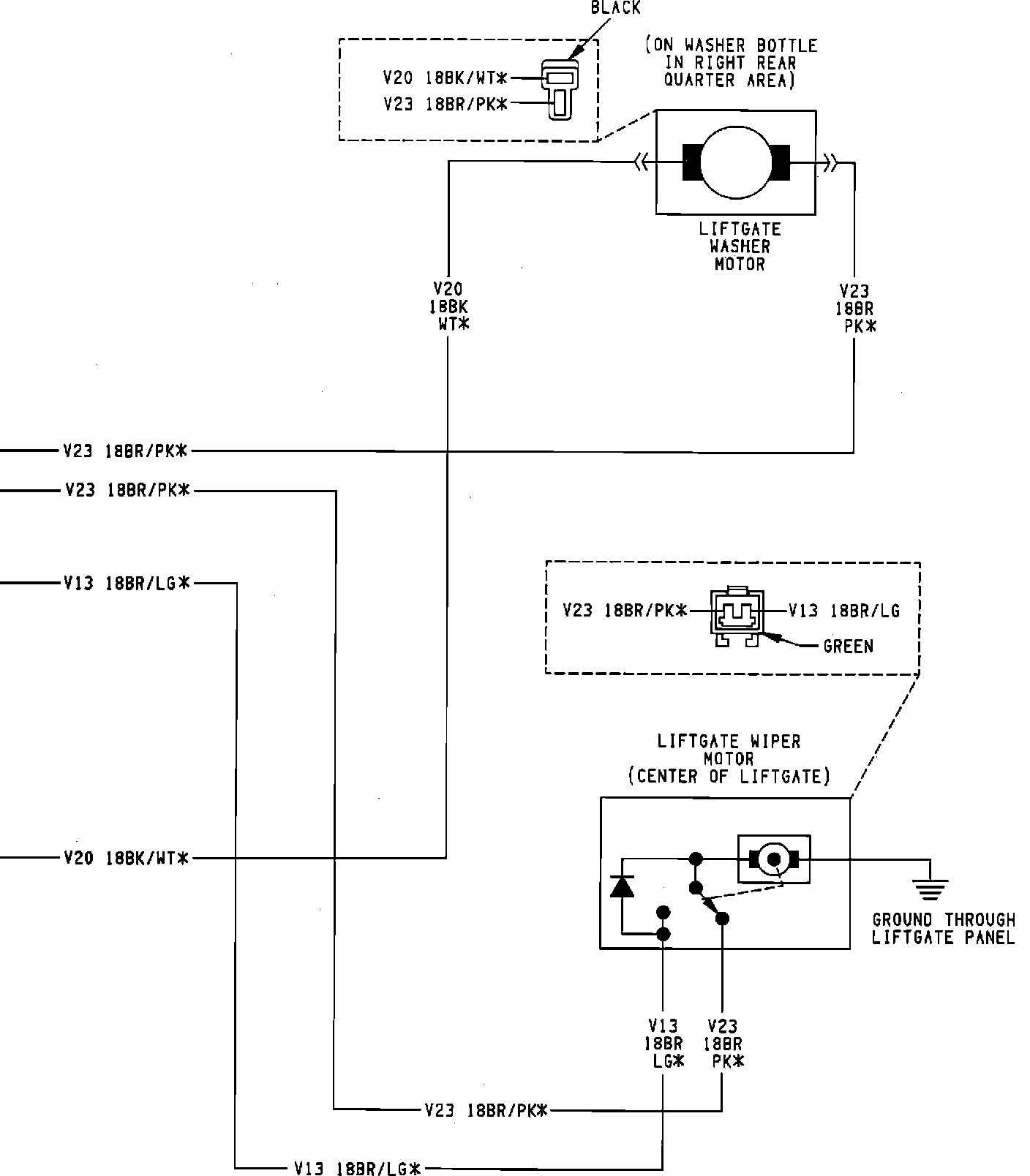

Liftgate Wiper And Washer System:
Liftgate Wiper And Washer System:
