Lebaron Landau L4-153 2.5L SOHC Turbo VIN J FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>
Engine Compartment Splices
Engine Compartment Splices

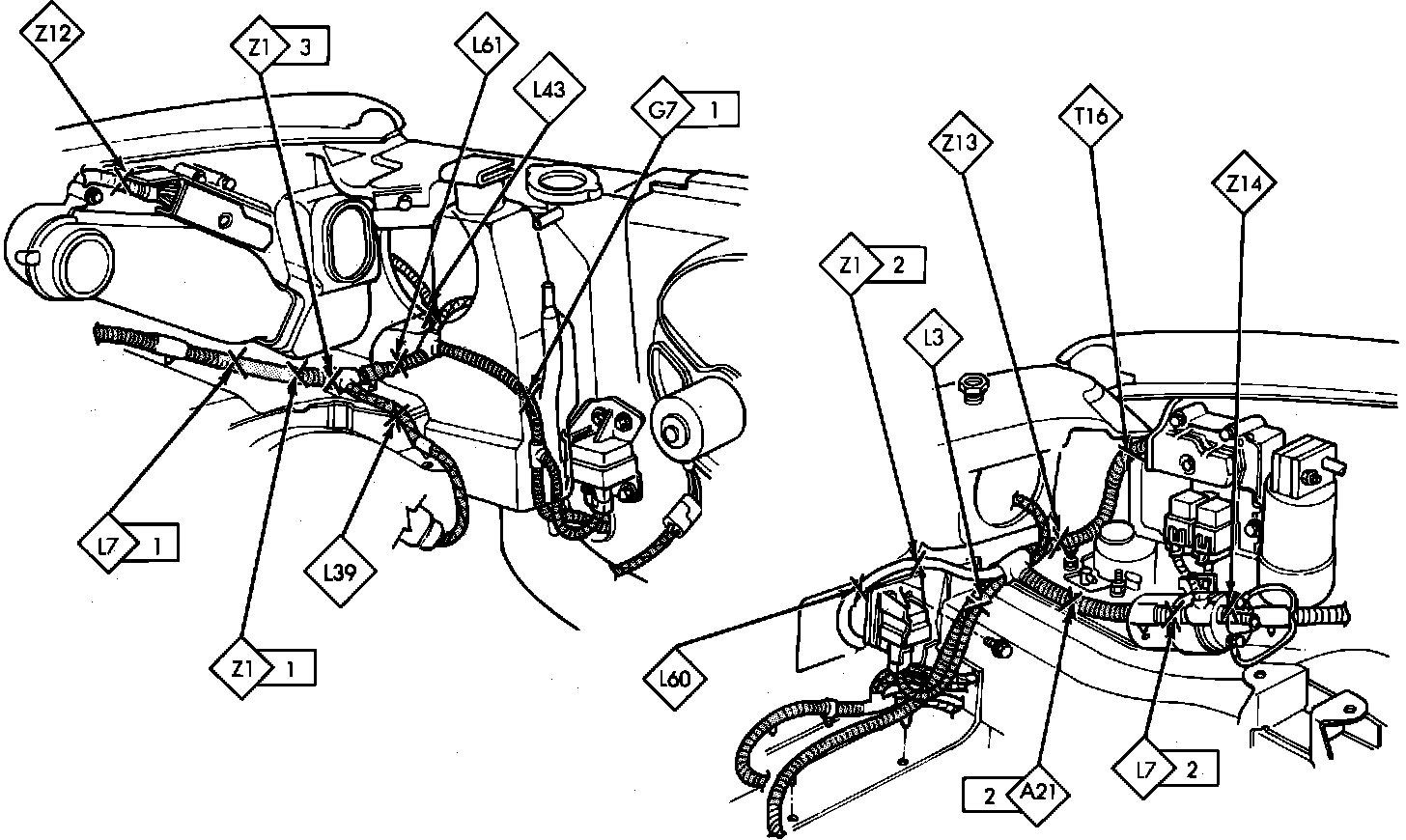

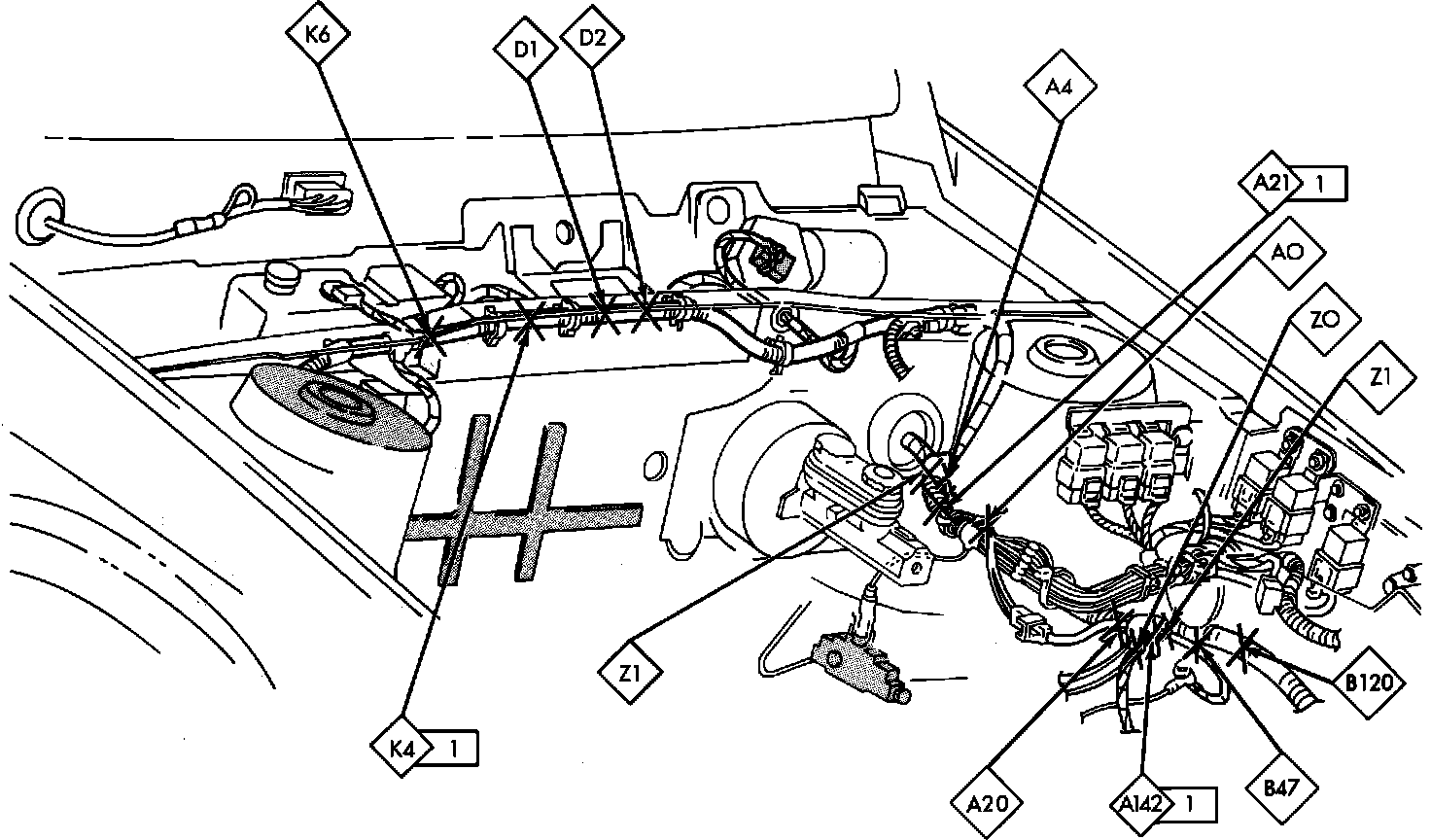

Engine Compartment Splices EFI And Turbo:
Engine Compartment Splices EFI And Turbo:
