Dome Lamp

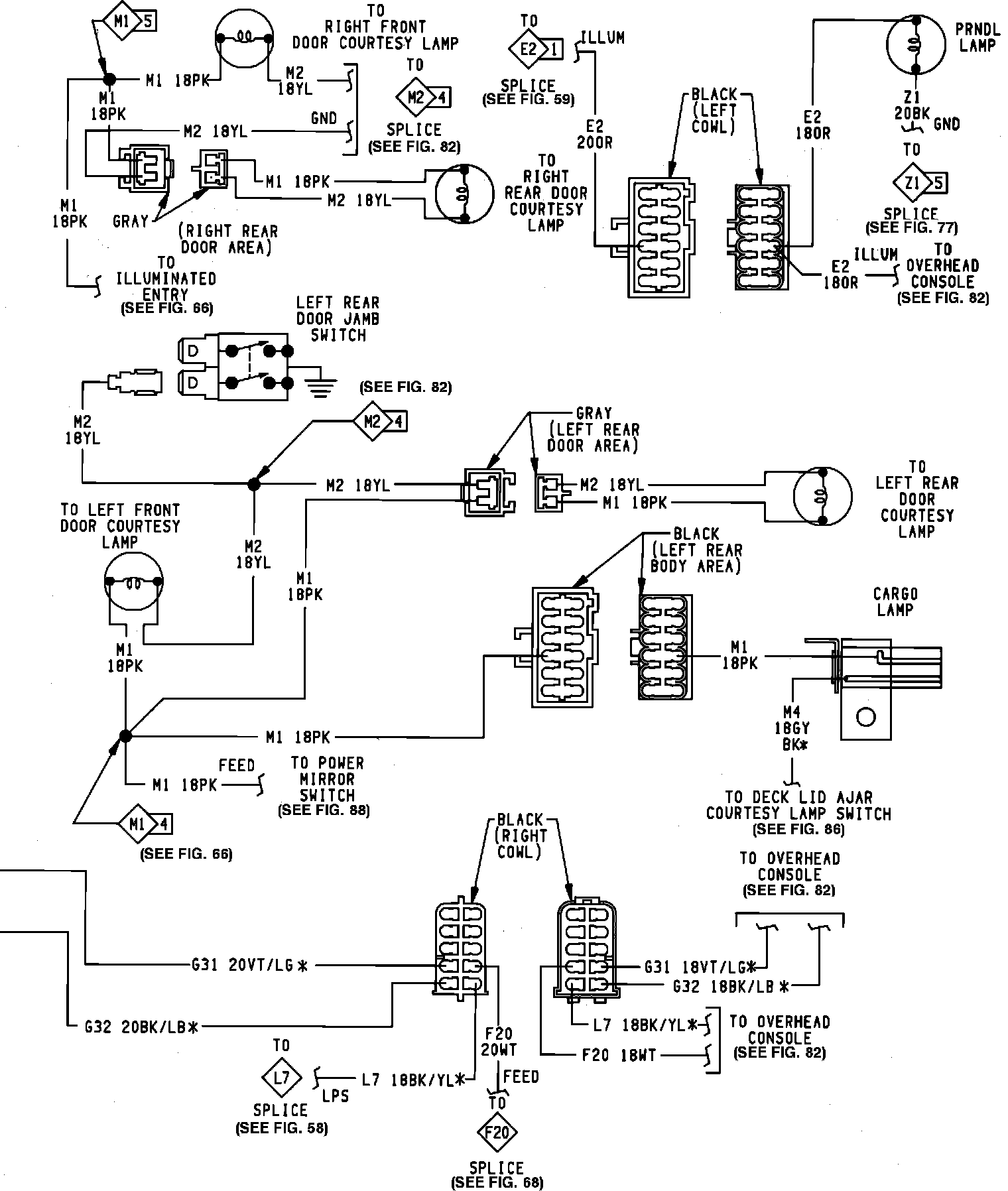

Overhead Console, Dome, Reading & Visor Vanity Lamps -- Part 1:

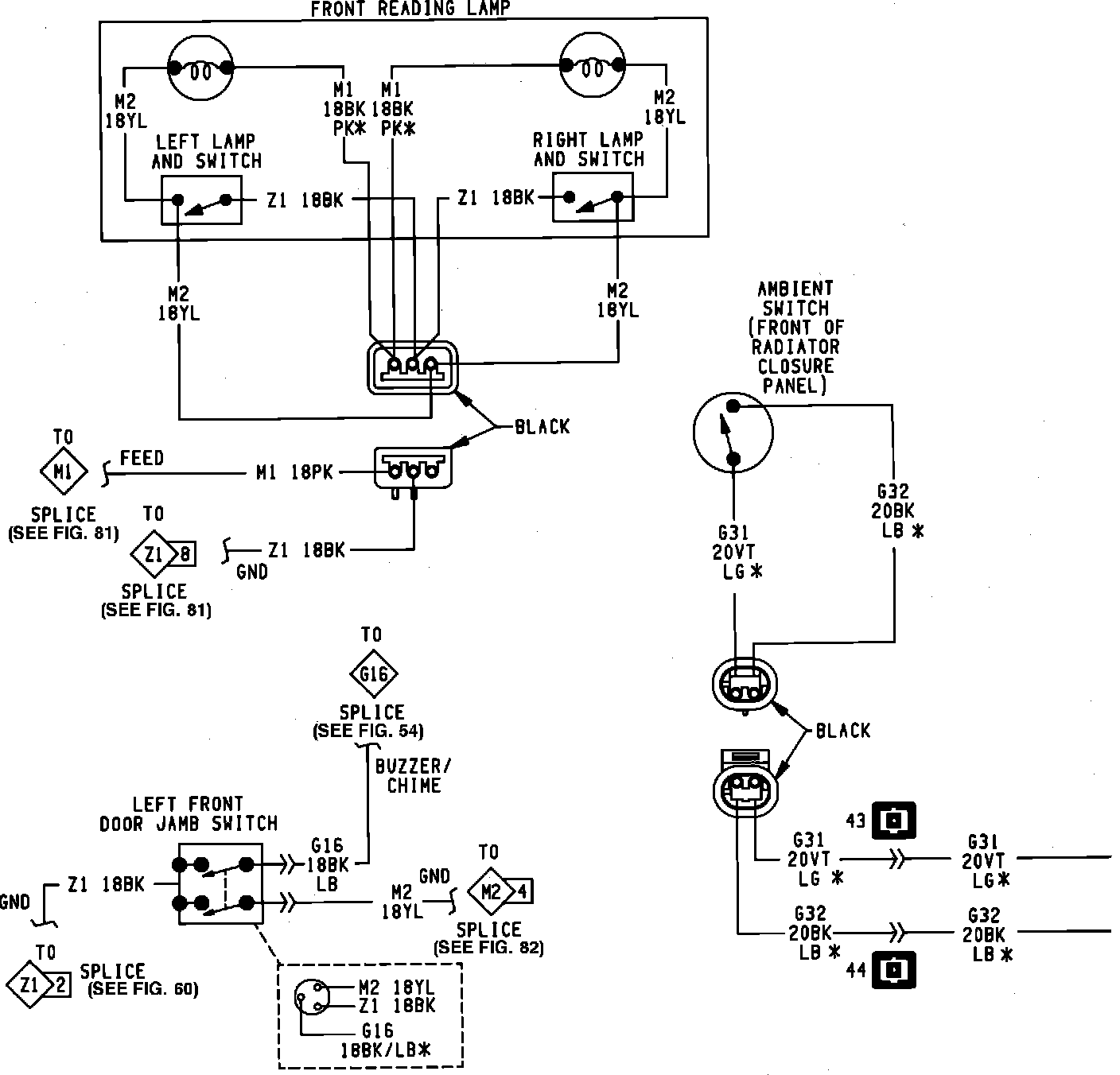

Overhead Console, Dome, Reading & Visor Vanity Lamps -- Part 2:

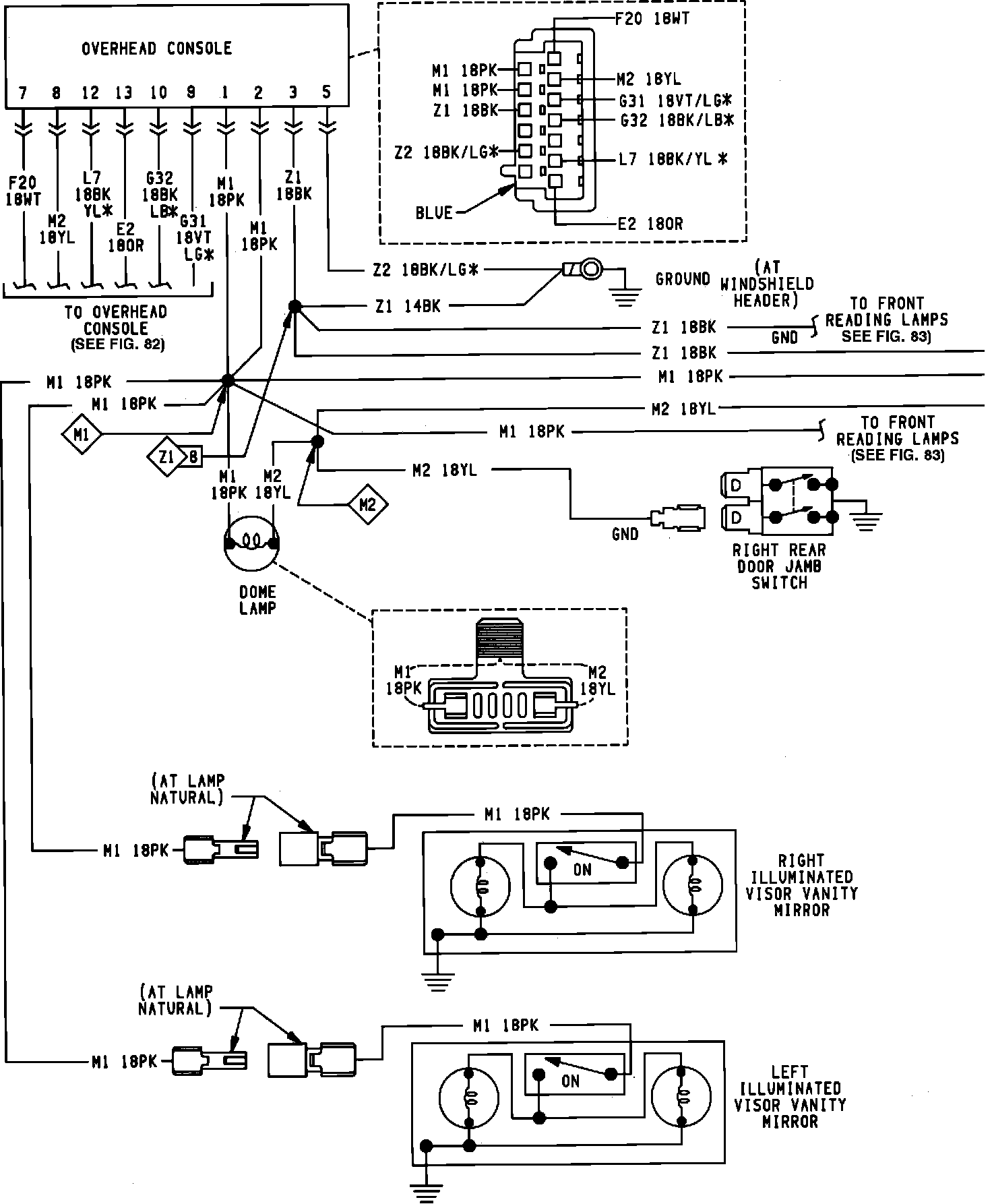

Overhead Console, Dome, Reading & Visor Vanity Lamps -- Part 3:

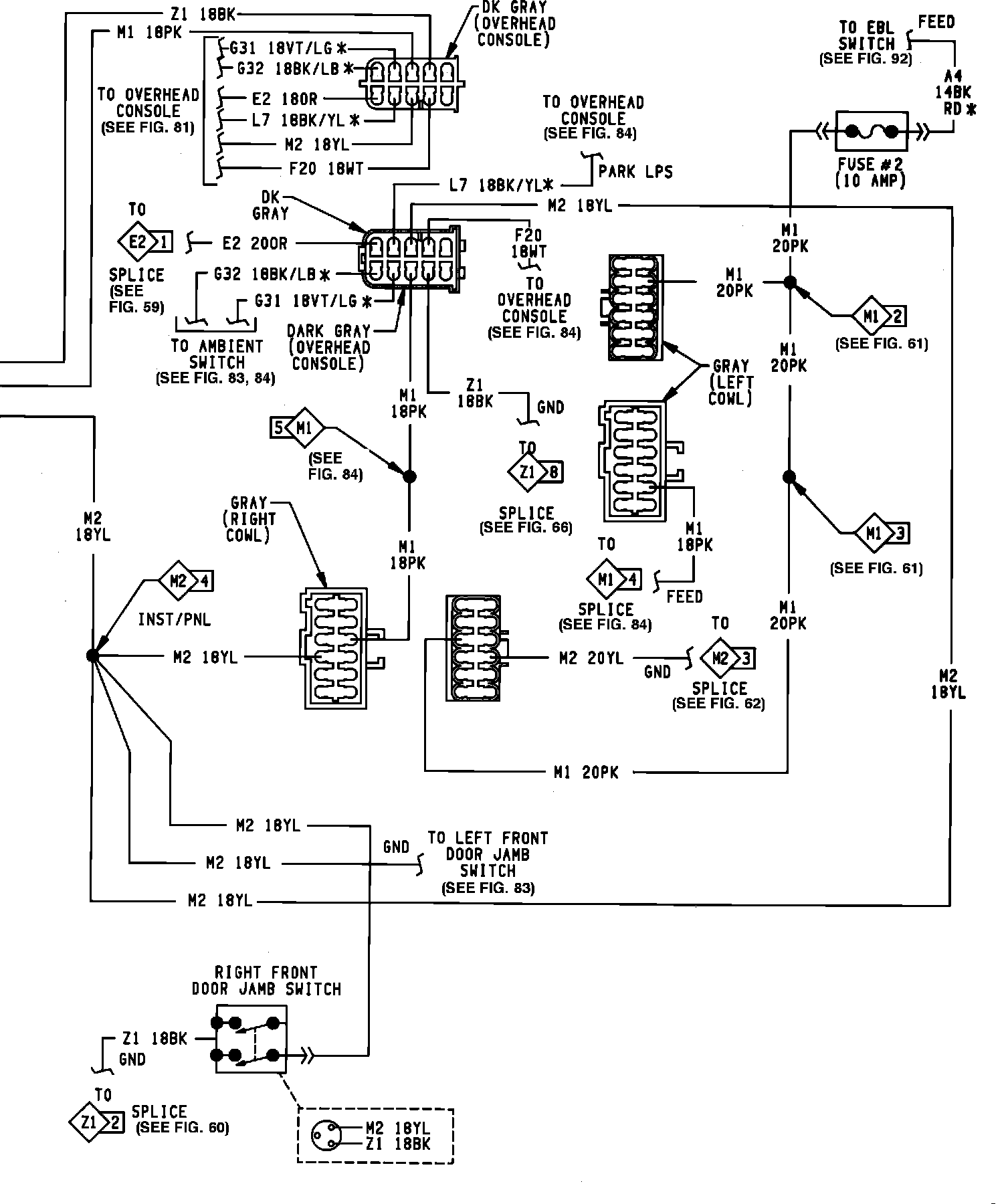

Overhead Console, Dome, Reading & Visor Vanity Lamps -- Part 4:
