With Automatic Temperature Control (ATC)

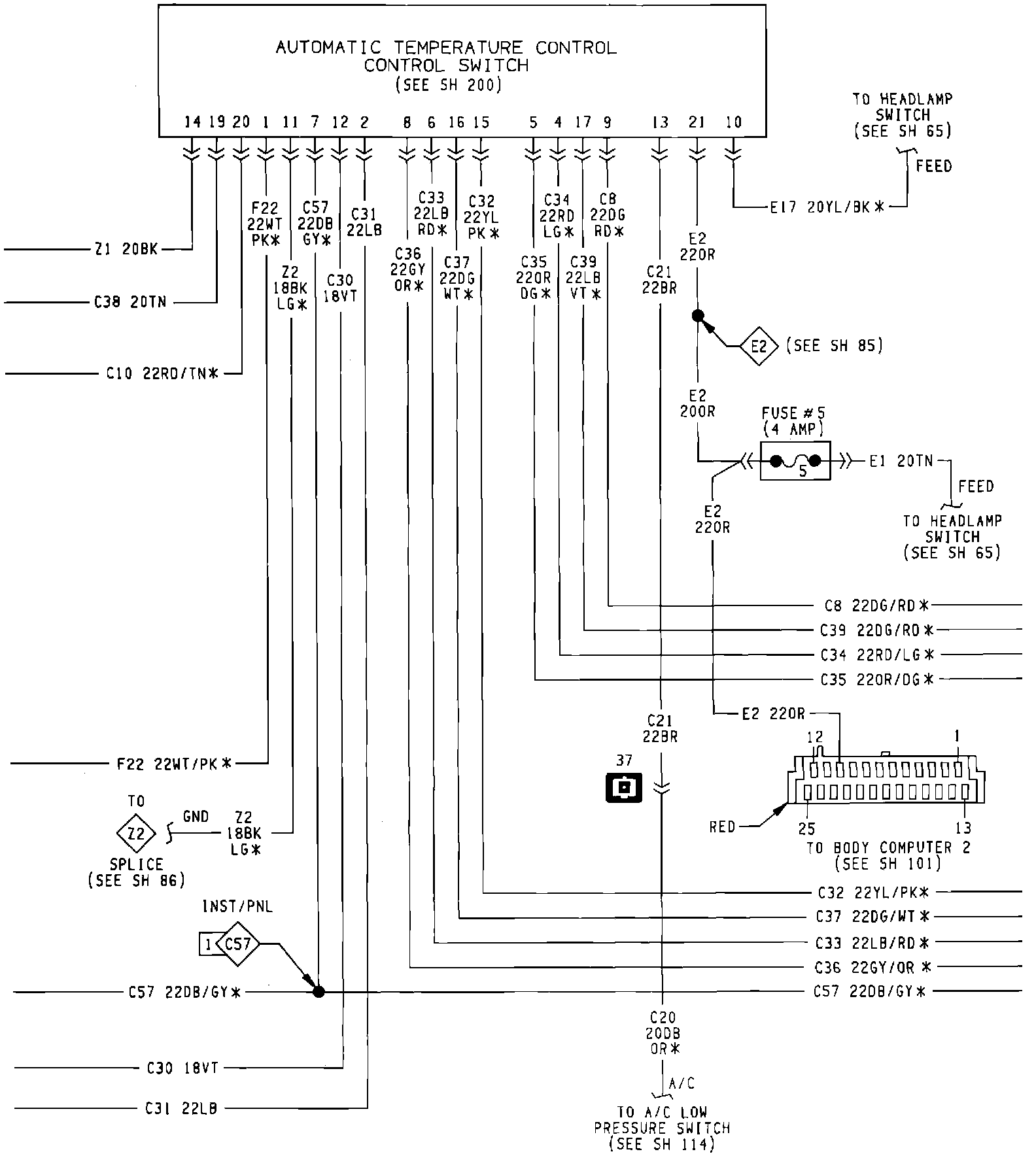

Automatic Temperature Control (Part 1 Of 2):

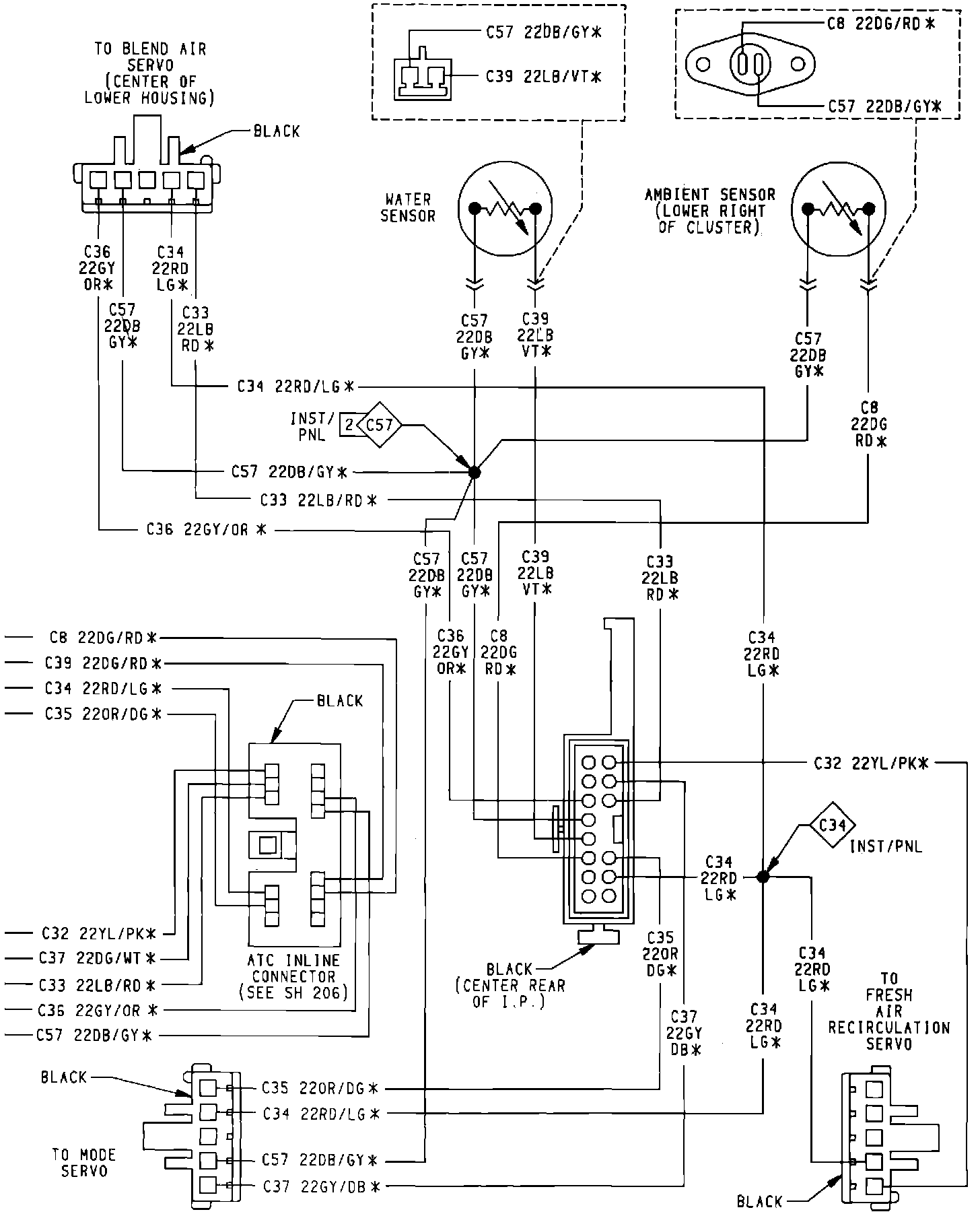

Automatic Temperature Control (Part 2 Of 2):



Automatic Temperature Control:



Automatic Temperature Control:



Automatic Temperature Control:
