Without Automatic Temperature Control (ATC)
Without Automatic Temperature Control (ATC)
Air Conditioning And Heater System (Part 1 Of 2):

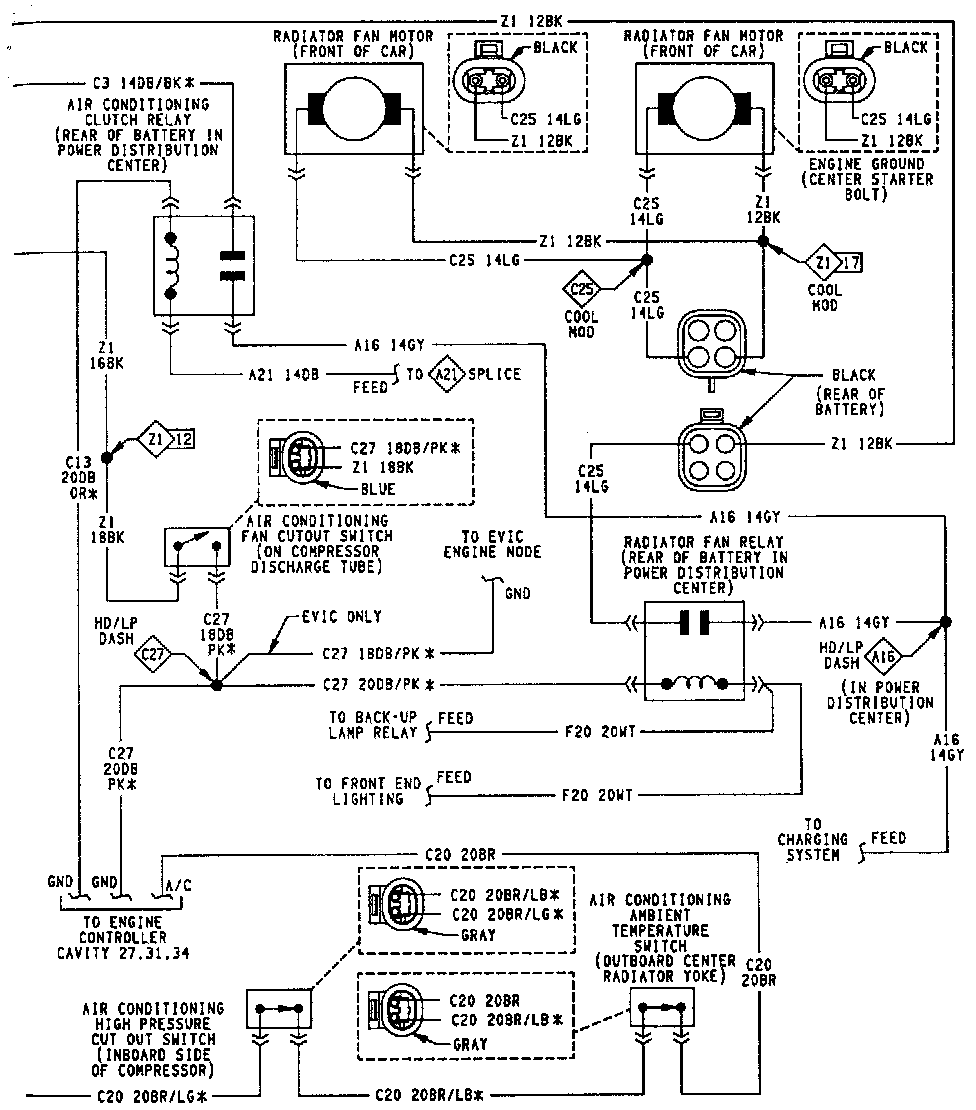

Radiator Fan System With A/C And Heater System (Part 2 Of 2):
