Home >> Chrysler >> 1993 >> Fifth Avenue V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Diagrams >> Electrical Diagrams >> Instrument Cluster >> Electronic Cluster >> Body Computer 2

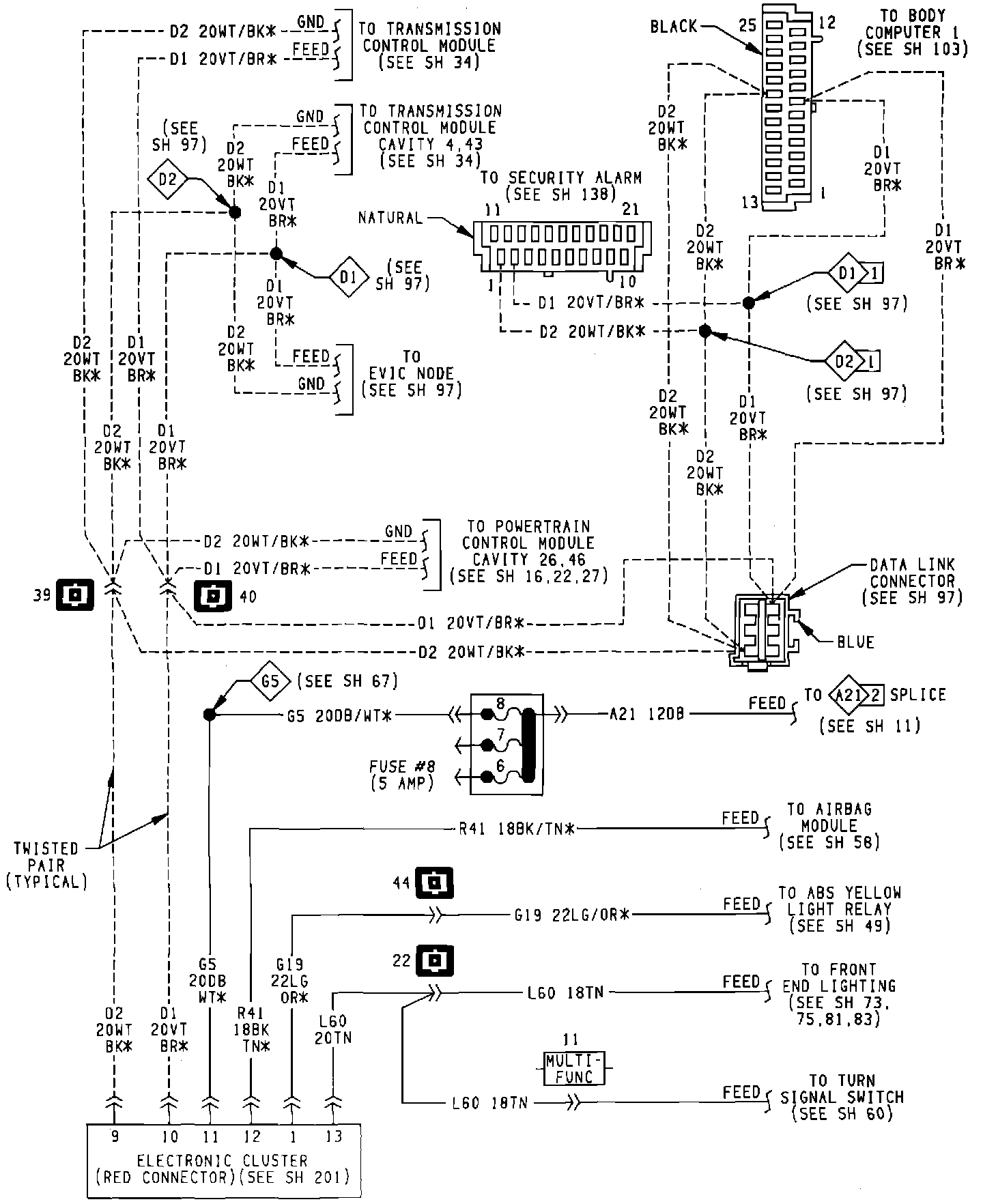

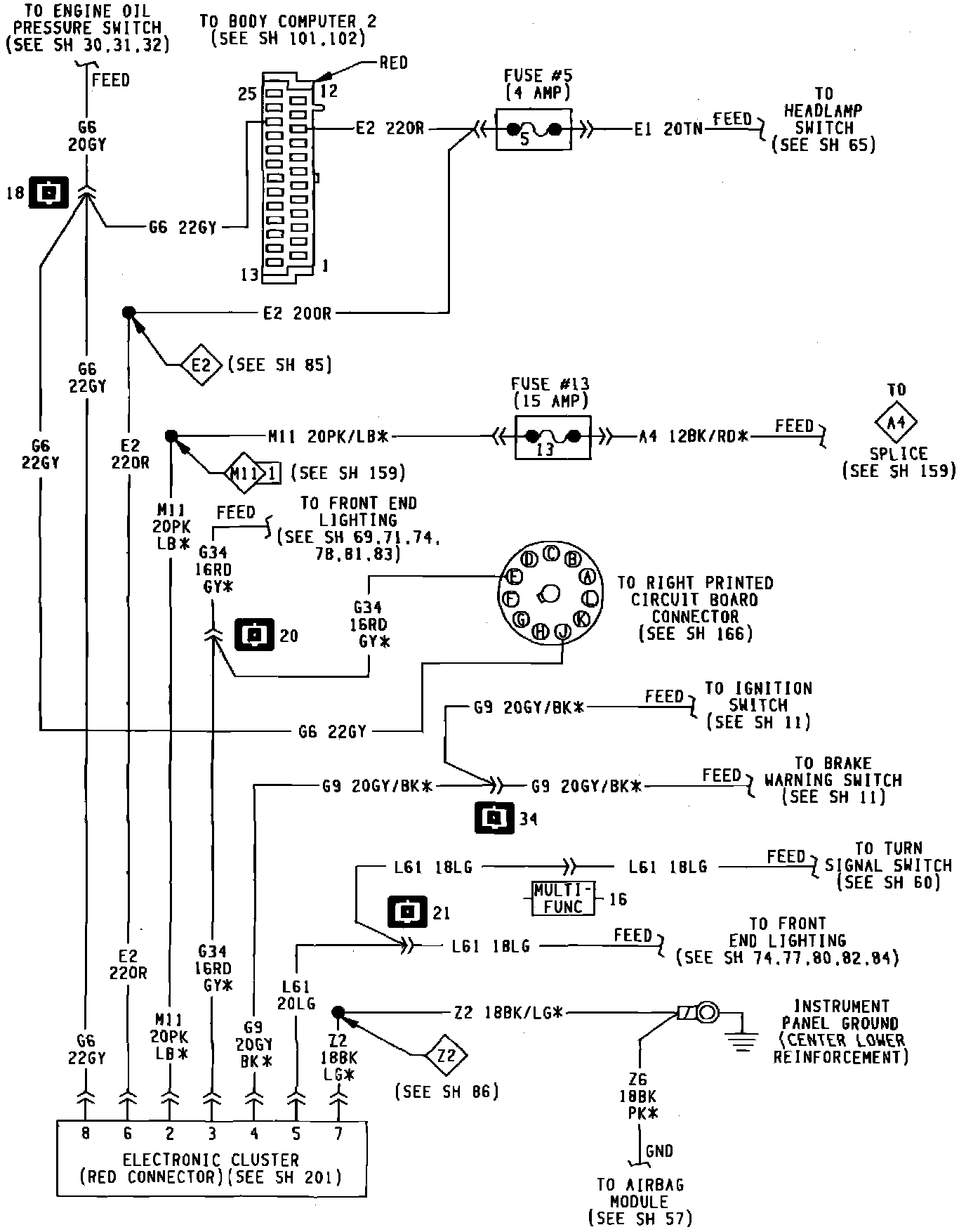

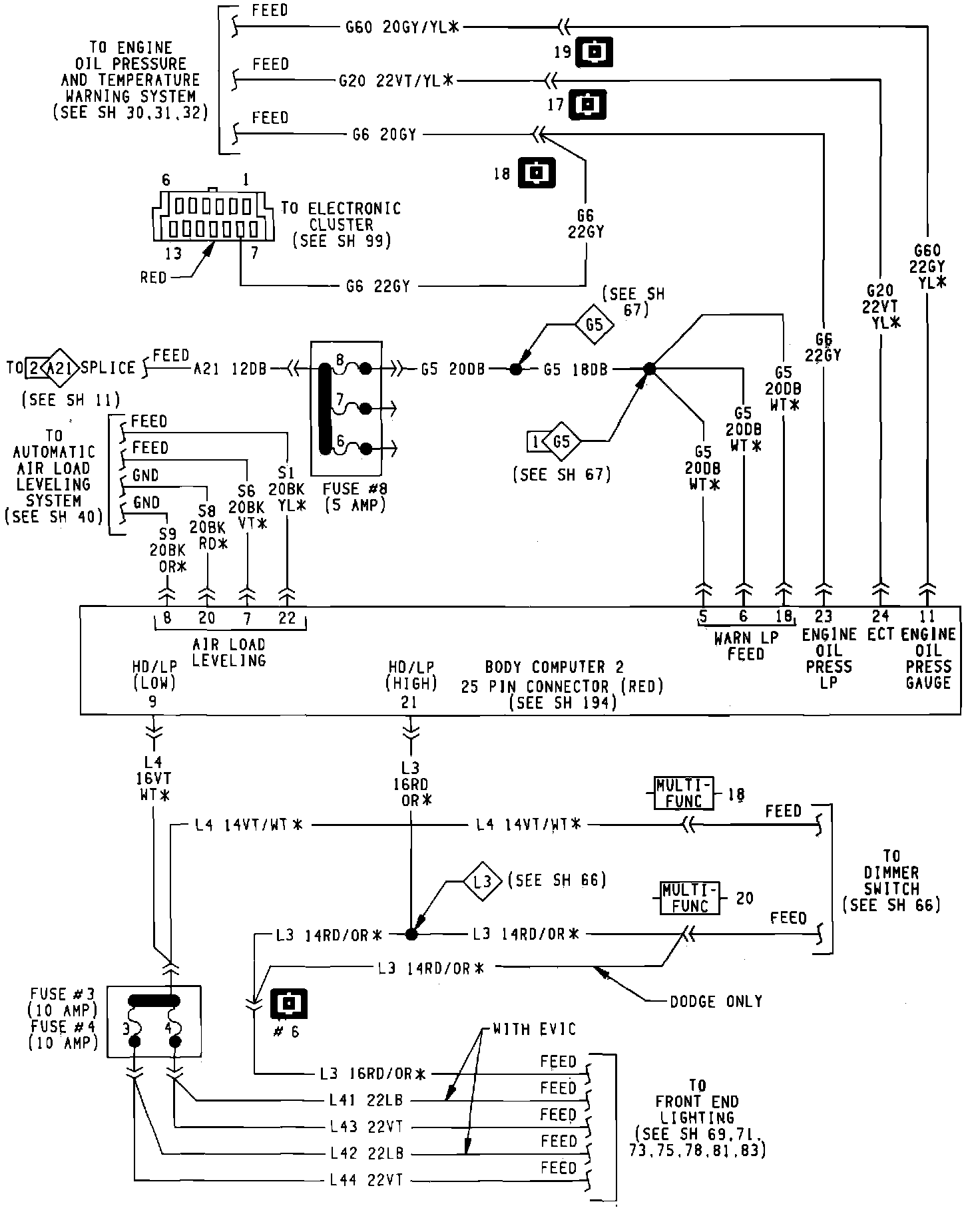

Body Computer 2
