Suspension Control Module

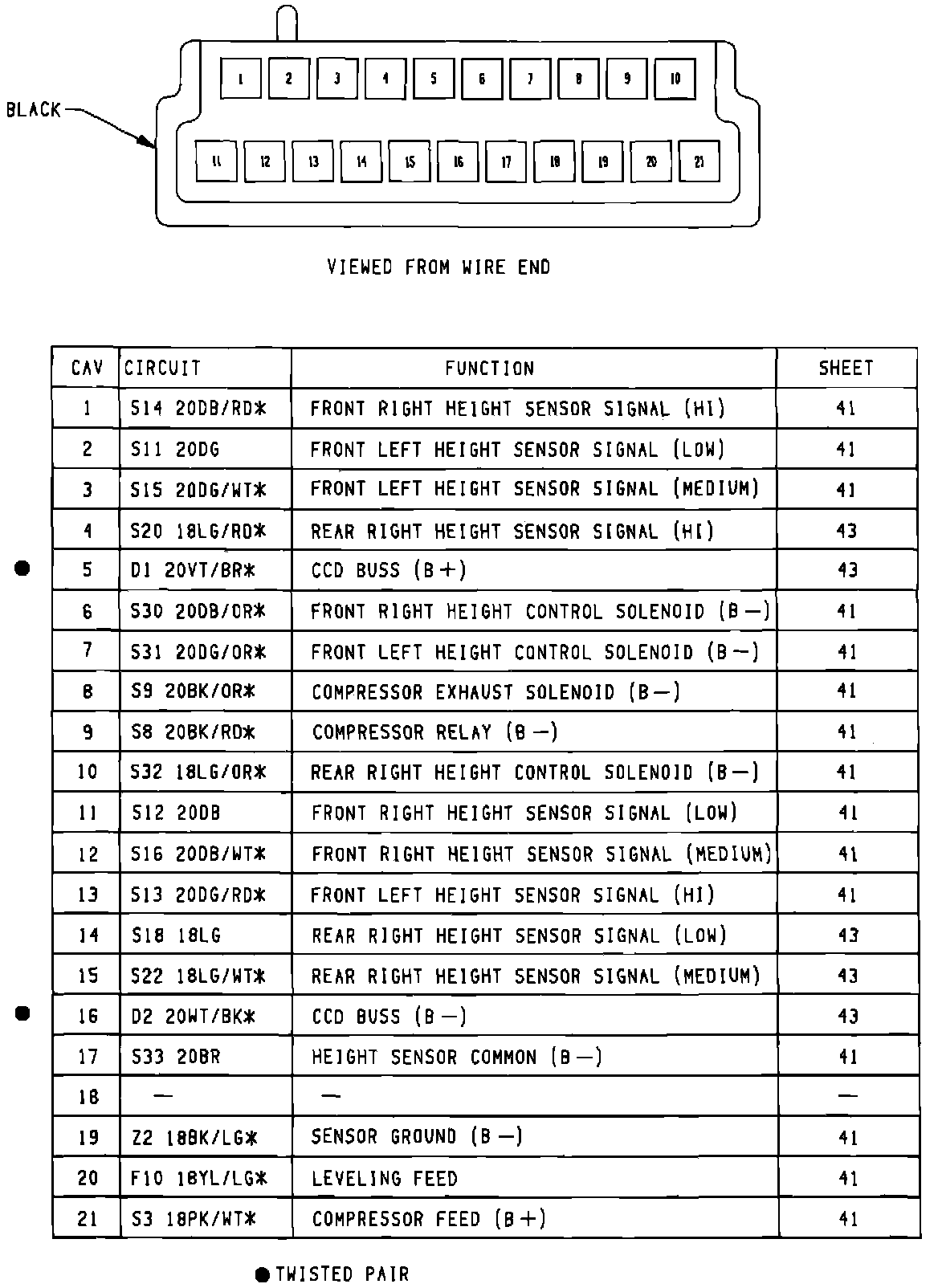

Fig. 28 Air Suspension Control Module Connector:

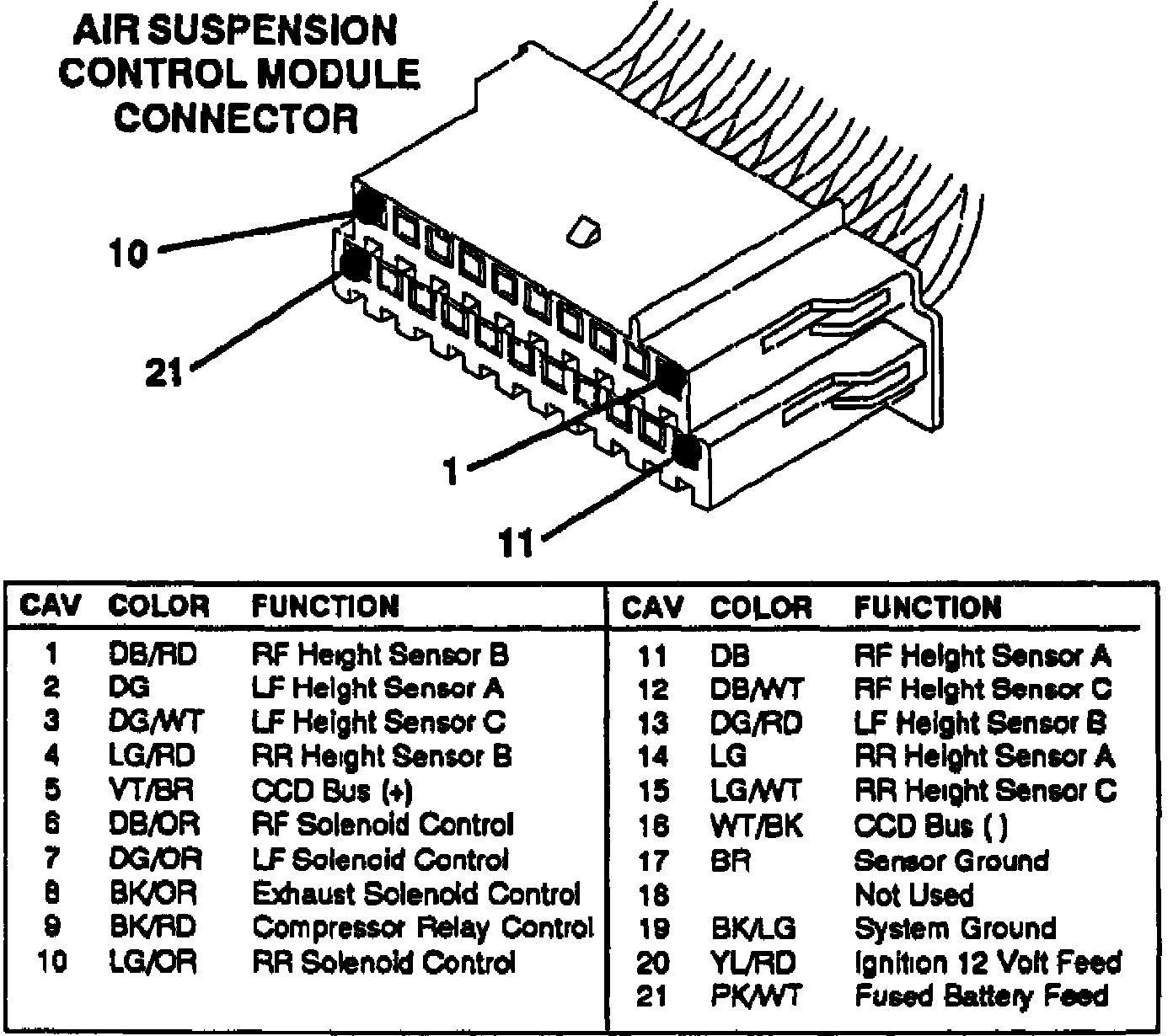

Air Suspension Control Module:
