Vanity Lamp

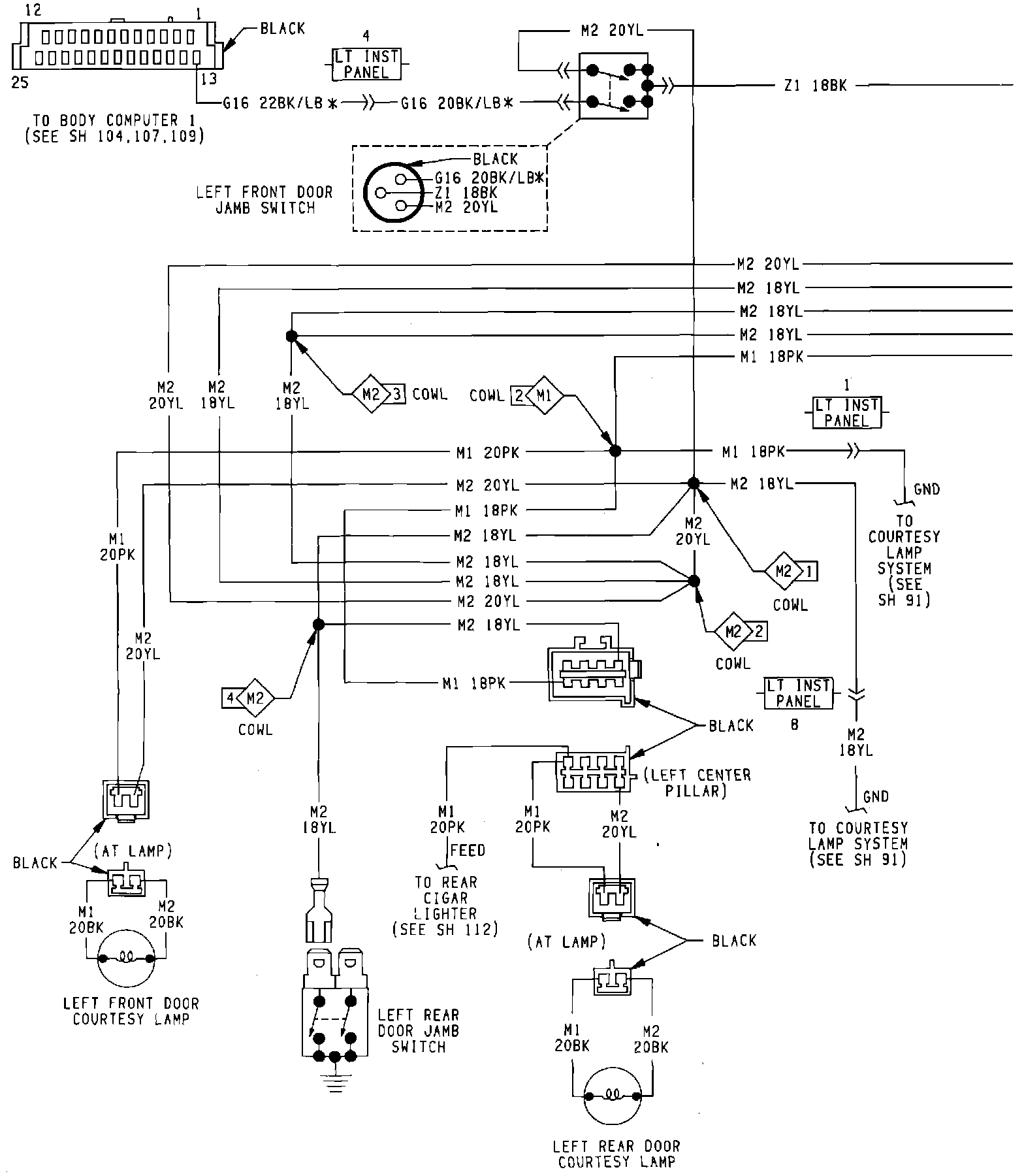

Dome and Body Courtesy Lamps -- Part 1:

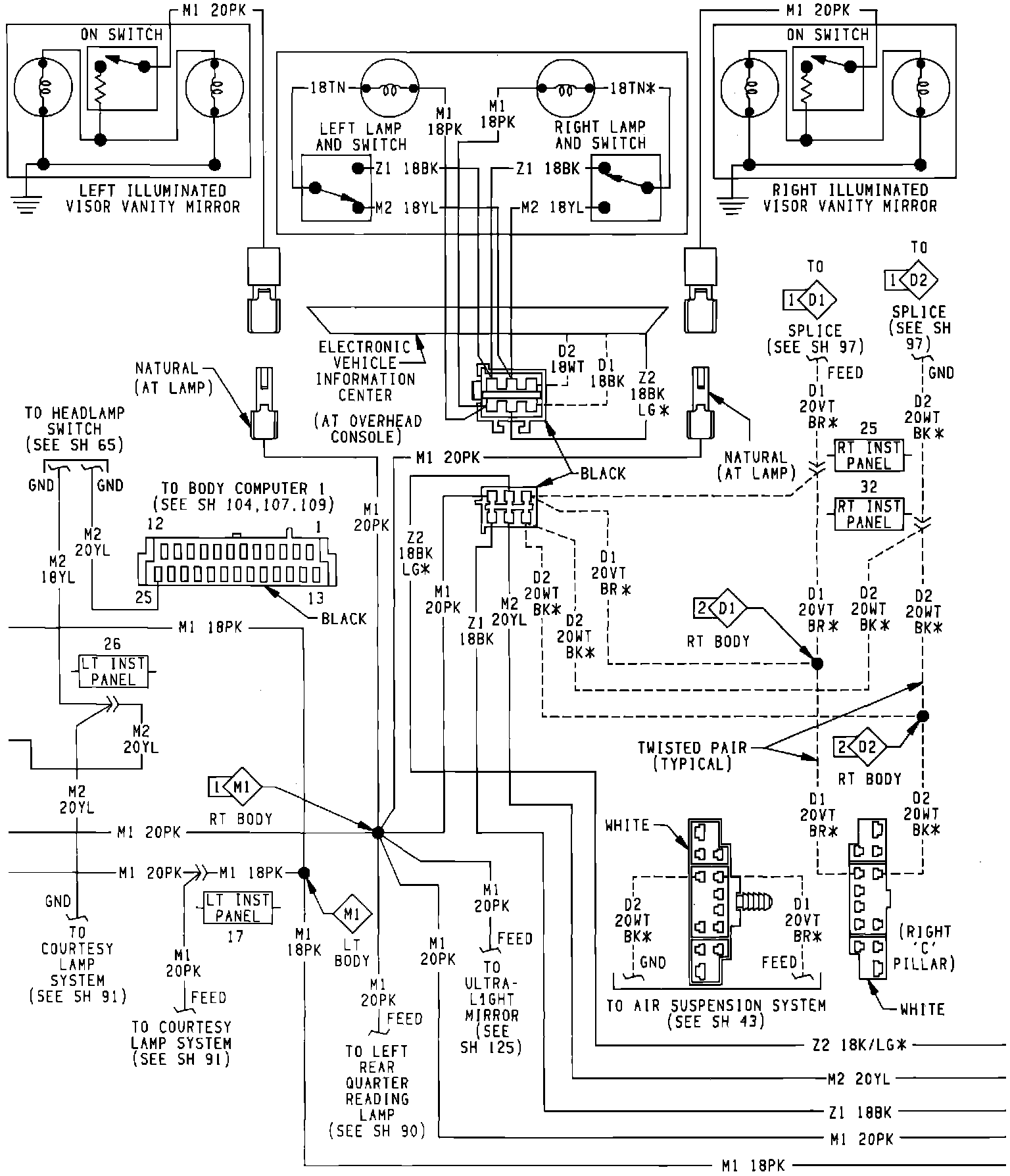

Dome and Body Courtesy Lamps -- Part 2:

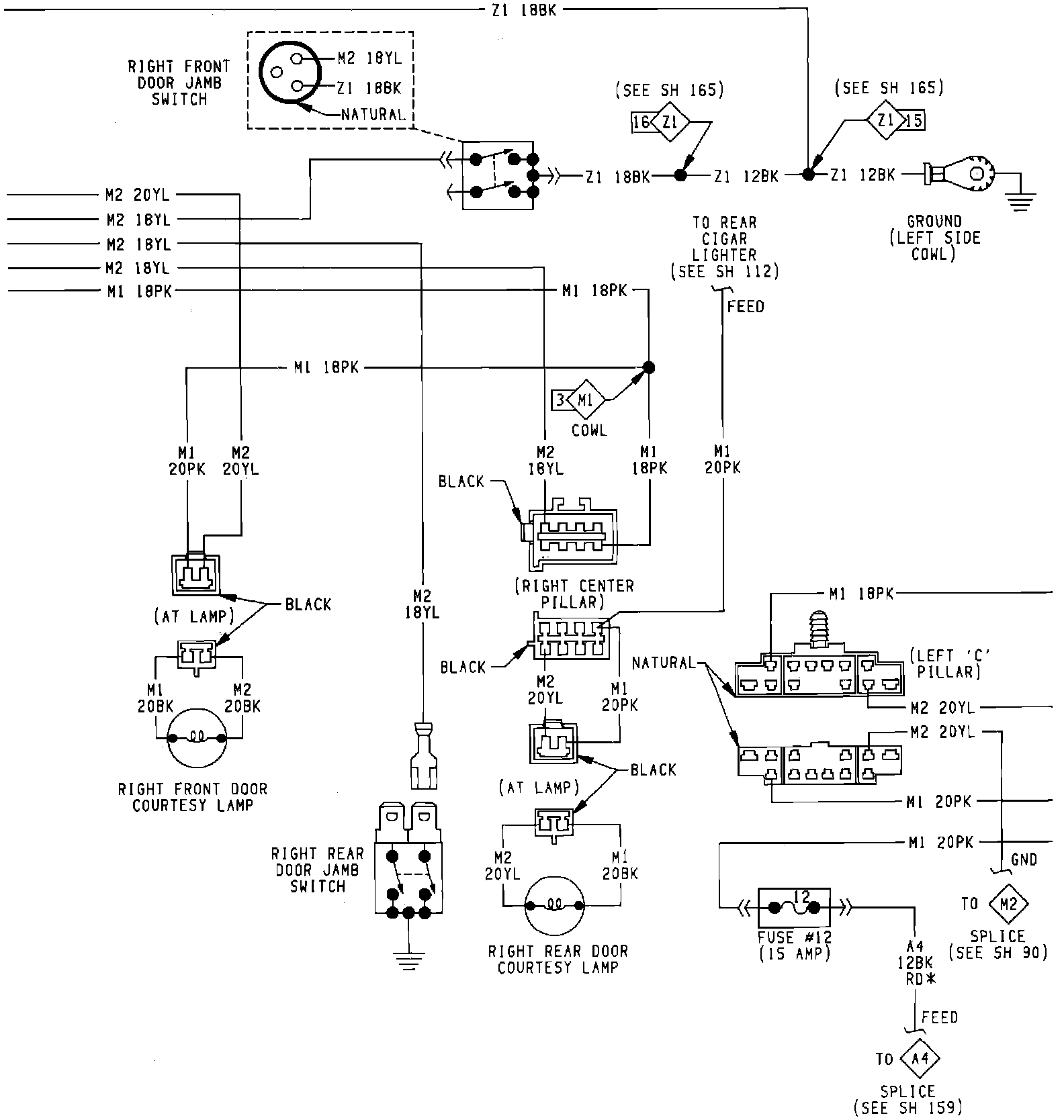

Dome and Body Courtesy Lamps -- Part 3:



Dome and Body Courtesy Lamps -- Part 4:
