With Mechanical Instrument Cluster
With Mechanical Instrument Cluster

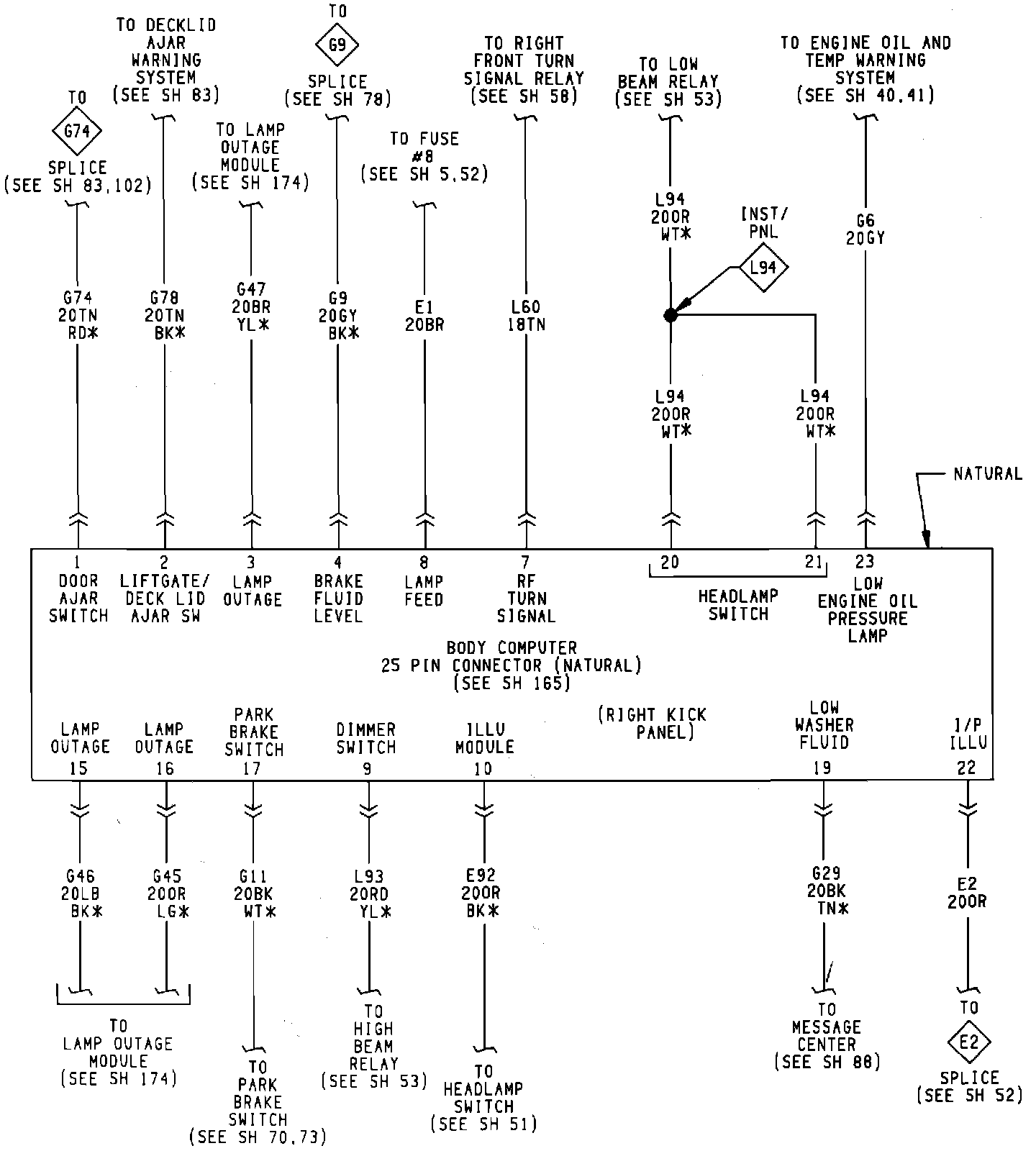

BCM W/Mechanical Instrument Cluster Part 1 Of 2:

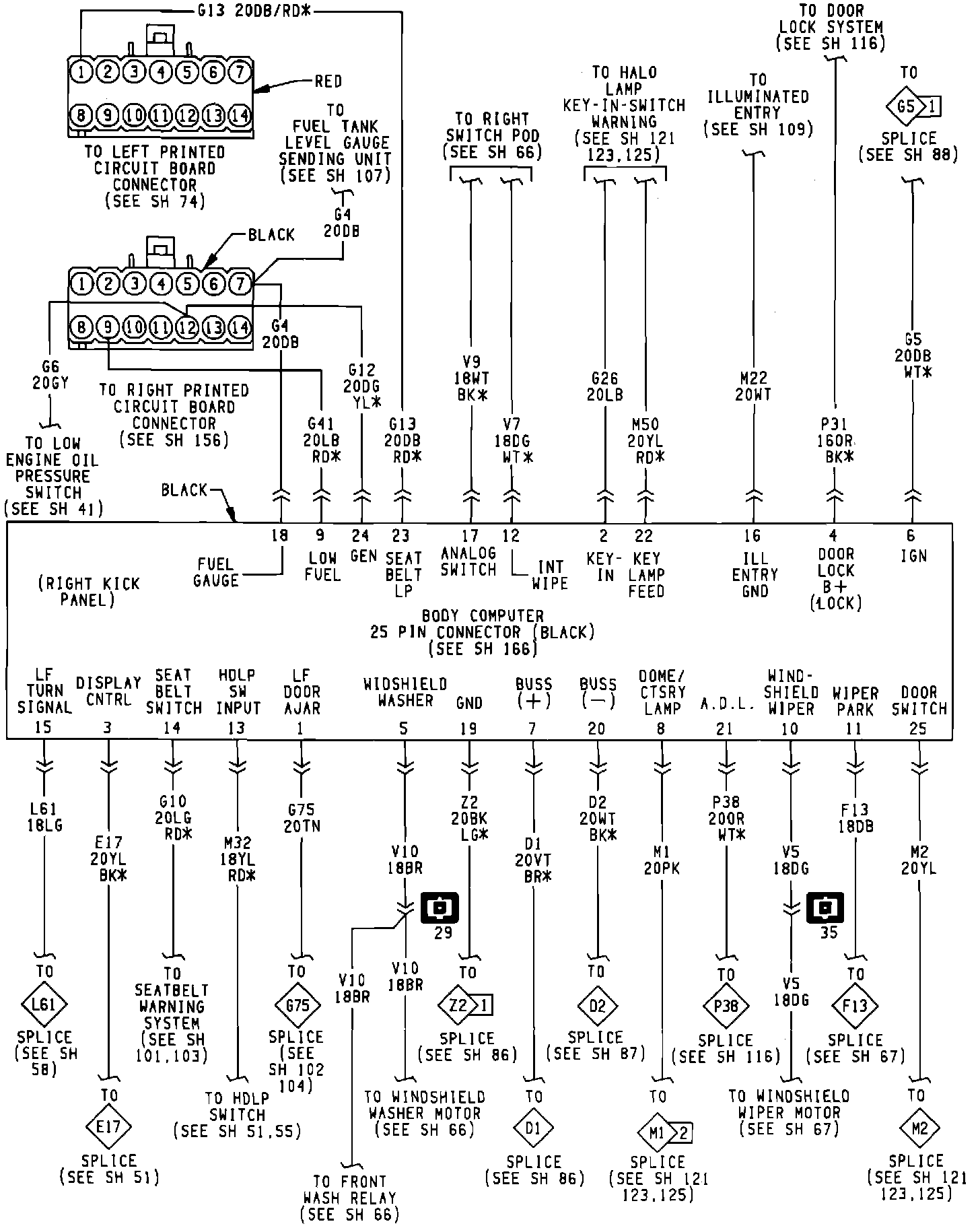

BCM W/Mechanical Instrument Cluster Part 2 Of 2:
